PSTN/ISDN Modem

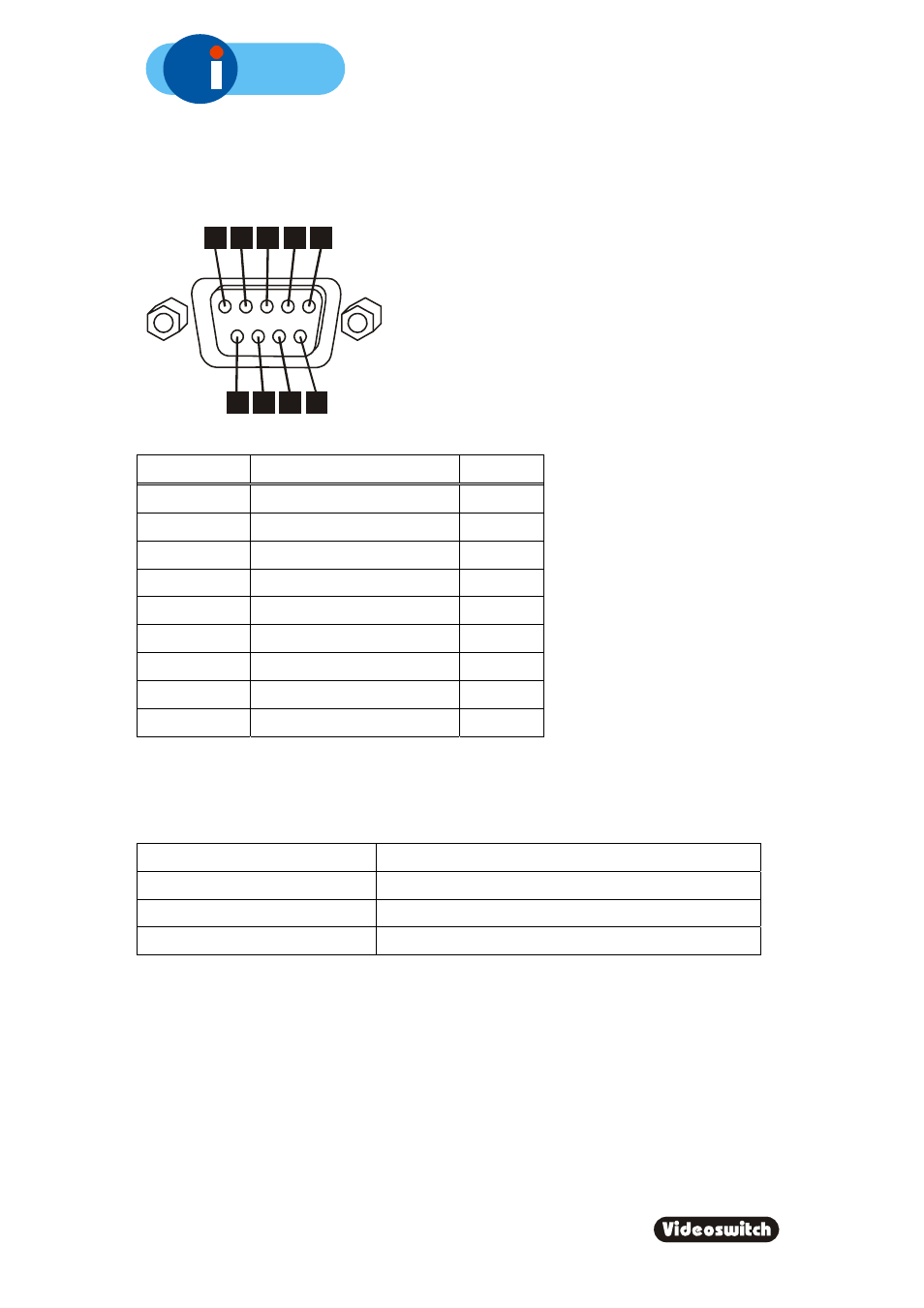

Physical:
9-way D-type (female)
Electrical: RS232
5
4
9
3
8
2
1
7
6
Pin Number
Signal
In/Out
1 DCD
In
2 RXD
In
3 TXD
Out
4 DTR
Out
5 GND
In/Out
6 +8V
Out
7 RTS
Out
8 CTS
In
9 RI
In
11.5 Image Capture and Storage
Displayed Image Format
720 x 576 Pixels, 16 Million colours
Compressed Image Format
720 x 288 Pixels, 16 Million colours
Sample rate
13.5Mhz
Image Compression System
Wavelet
