Digital recorder, 1 connecting up – Videoswitch Vi100 User Manual
Page 6
Digital Recorder
2
1.1 Connecting Up
For a standard digital recording system you will need
The Vi100 recorder
Some cameras with lenses
A video monitor (with BNC composite video input).
BNC cables

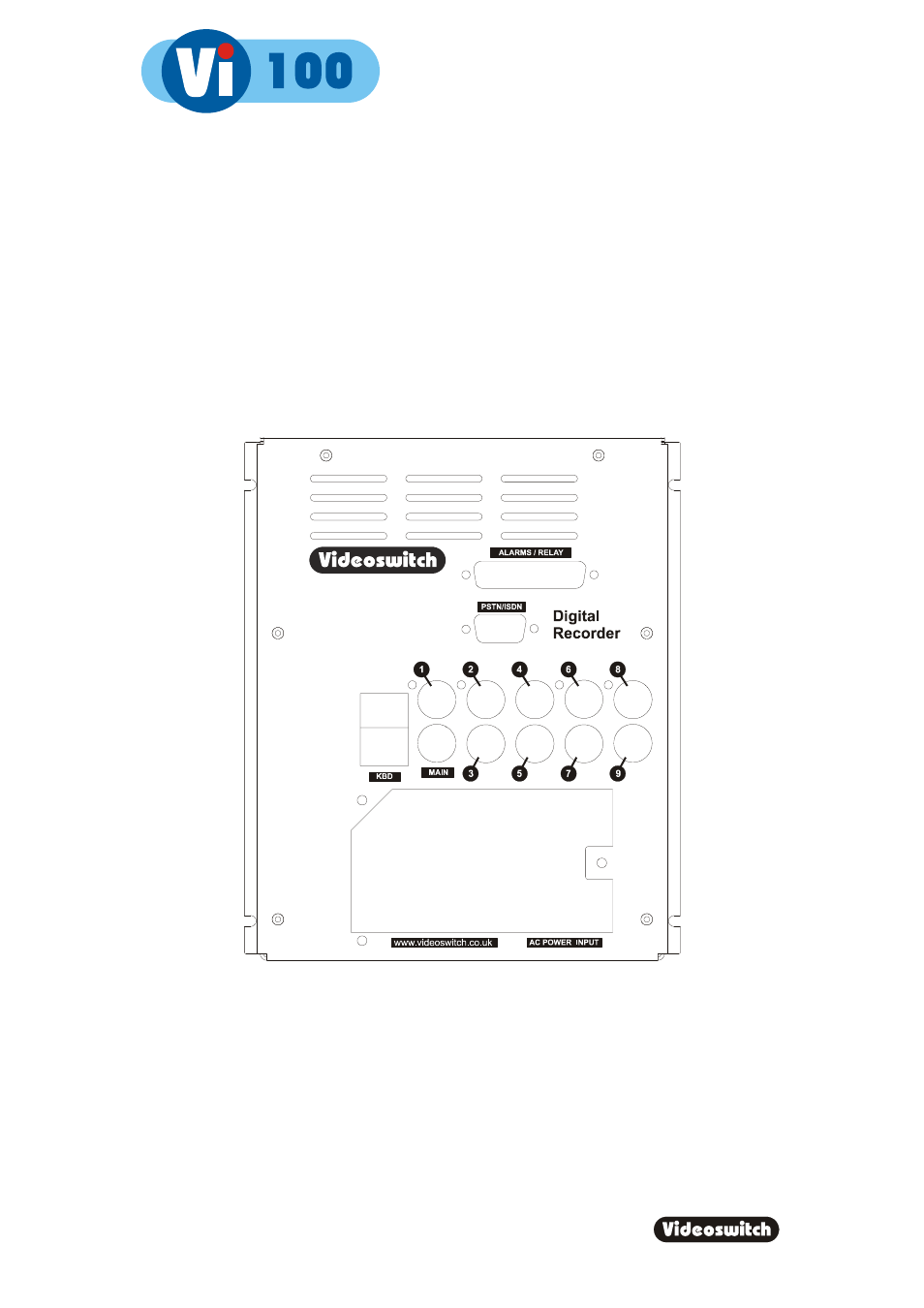

Rear
View
Connect the monitor output (MAIN) of the Vi100 to a Video Monitor to the using a BNC
cable
Make sure that the monitor termination is switched on (i.e. to 75 Ohms)
Connect the a camera to Camera Input 1 on the Vi100 using a BNC cable
Connect further cameras to Inputs 2,3,4 etc
Make sure that the voltage select switch is set to suit the mains supply. The setting
required in UK and Europe is 230Vac.
