ASC-2E & ASC-4E Electric Convection Ovens - Electronic Control • 8
I N S T A L L A T I O N

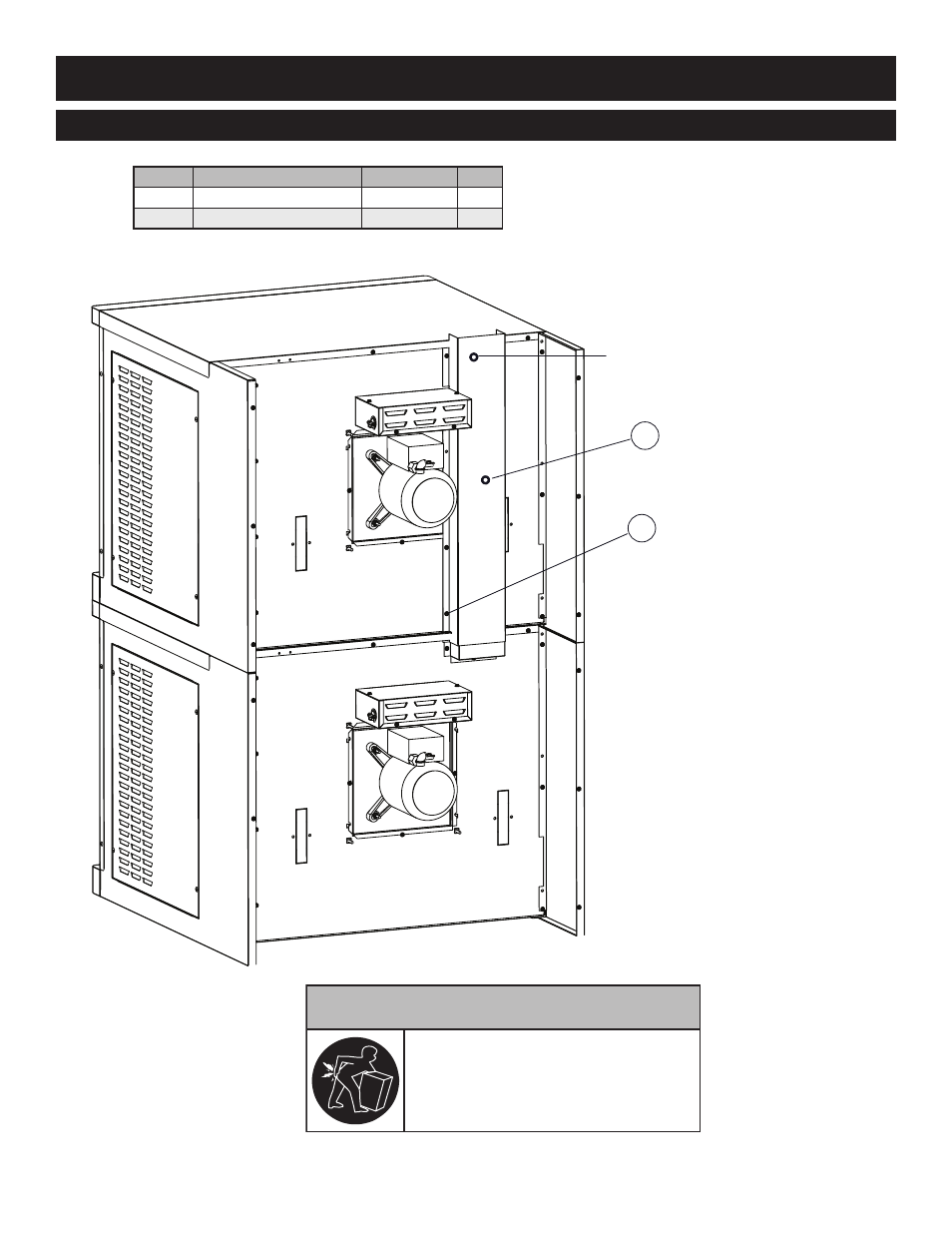

S T A C K I N G & V E N T I N G A S S E M B L Y ( 2 - A S C - 4 E / S T K 2 0 8 / 2 4 0 V
S H O W N
)
After legs or casters have been installed
on the bottom oven, place the upper oven
on top of lower unit. Align.
ITEM DESCRIPTION PART NO. QTY
2 RISER, FLUE ELECTRIC 1004984 1
3 SCREW, #10 SMS .5LG SC-26520 5
Note: Actual unit may be
different than shown.
2
3
Remove top elbow vent
prior to installing riser.
Assemble venting
components 2 & 3
as shown
C A U T I O N
TO PREVENT PERSONAL INJURY,
USE CAUTION WHEN MOVING OR
LEVELING THIS APPLIANCE.
Part numbers and drawings are subject to change without notice.
