DYNAMIXEL AX-12
Connector Company Name : Molex
Pin Number: 4
Model Number
Molex Part Number Old Part Number
Male 22-03-5045 5267-03
Female 50-37-5043 5264-03
Temperature range : -40°C to +105°C
Contact Insertion Force-max : 14.7N (3.30 lb)
Contact Retention Force-min : 14.7N (3.30 lb)
www.molex.com or www.molex.co.jp for more detail information

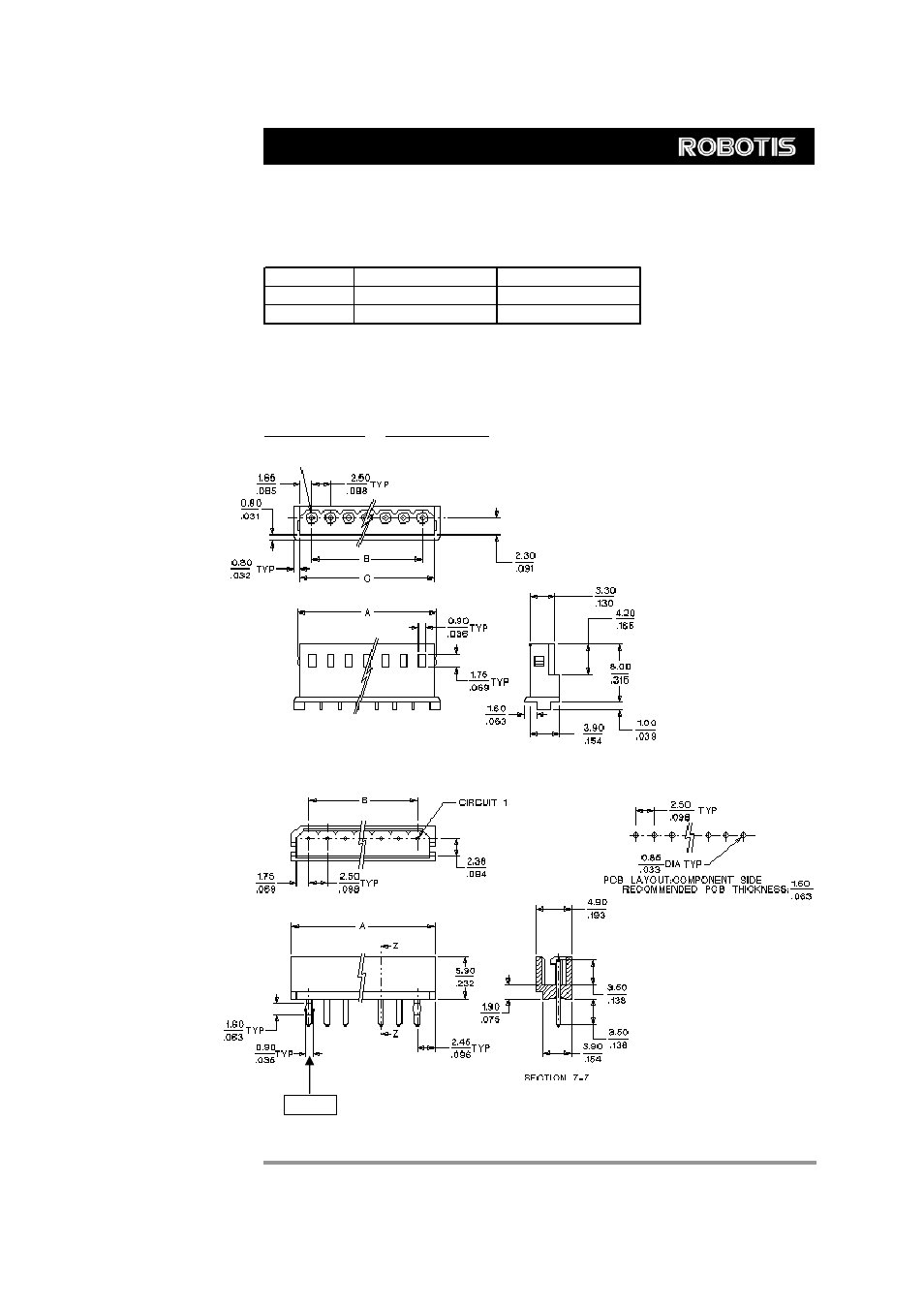

Female Connector
Male Connector
Pin No.1
