HW/D6 DIMENSIONS: L x W x D
EXTERIOR
:
24-1/8" x 68-1/8" x 9-9/16" (613mm x 1730mm x 242mm)
WELL DIMENSION
:
22-1/16" x 65-3/4" x 6-3/8" (560mm x 1670mm x 162mm)
COUNTER CUTOUT DIMENSIONS
:
22-3/8" x 66" (568mm x 1677mm)
CONTROL BOX CUTOUT REQUIRED
:
4-1/2" x 5-1/4" (115mm x 134mm)
HW DIMENSIONS: L
X
W
X
D
EXTERIOR
:
24-1/8" x 68-1/8" x 7-9/16" (613mm x 1730mm x 193mm)
WELL DIMENSION
:
22-1/16" x 65-3/4" x 4-3/8" (511mm x 1670mm x 111mm)
COUNTER CUTOUT DIMENSIONS
:
22-3/8" x 66" (568mm x 1677mm)
CONTROL BOX CUTOUT REQUIRED
:
4-1/2" x 5-1/4" (115mm x 134mm)
PRODUCT\PAN CAPACITY
60 lb (27 kg)
MAXIMUM
(
BASED ON
4"
DEEP PANS
)
MAX
.
VOLUME
: 37.5 qt (47.5 L)
FULL-SIZE PANS*:
Five (5) 12" x 20" x 2-1/2"
GN 1/1 (325mm x 530mm x 65mm)
HALF-SIZE PANS*:
Ten (10) 12" x 10" x 2-1/2"
GN 1/2 (325mm x 265mm x 65mm)
THIRD-SIZE PANS*:
Fifteen (15) 12" x 6" x 2-1/2"
GN 1/3 (325mm x 176mm x 65mm)
WEIGHT
EST
.
500-HW
500-HW/ D6
NET WEIGHT
:
135 lb (61 kg)
140 lb (64 kg)
SHIP WEIGHT
:
165 lb (75 kg)
170 lb (78 kg)
CRATE DIMENSIONS
:
19"
X
74-1/8"
X
31"
(H
X
W
X
D)
(483mm x 1883mm x 787mm)
OPTIONS & ACCESSORIES
PAN DIVIDER BARS
■
■
Full-Size . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .16019
■
■
Half-Size • Third-Size . . . . . . . . . . . . . . . . . . . . . . . . .11318
#08E - 07/08

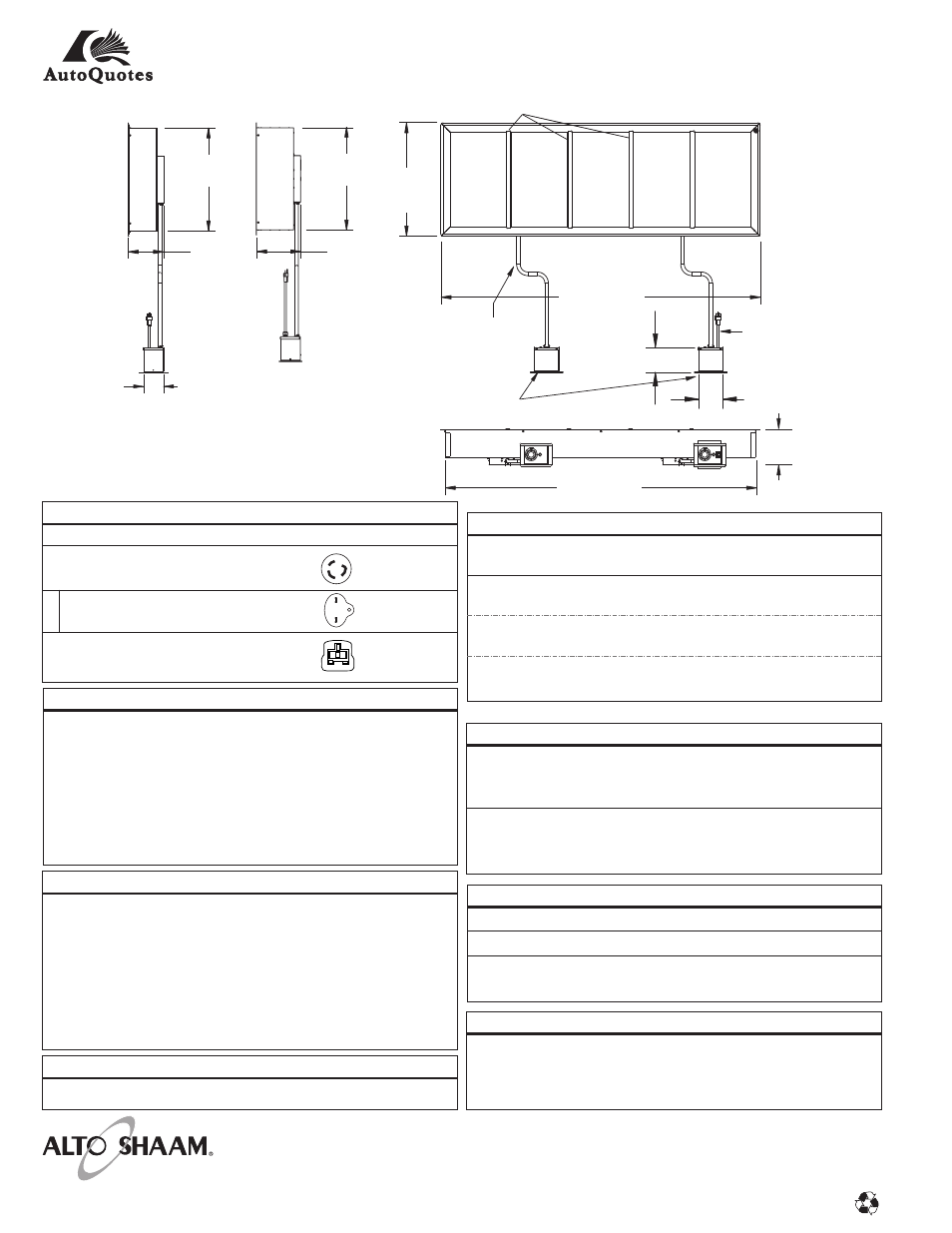

HOT FOOD DROP-IN WELL
500-HW
SERIES
Two flexible
water-tight tethers
36" each (914mm)
65-3/4" (1670mm)
5-3/16"
(132mm)
5-5/16"
(136mm)
Controls
68-1/8" (1730mm)
24-1/8"
(613mm)
7-9/16"
(193mm)
22-1/16"
(560mm)
4-7/16"
(113mm)
Removable
Divider Bars #16019
7-9/16"
(193mm)
9-9/16"
(242mm)
22-1/16"
(560mm)
Electrical Cord
60" (1524mm)
HW/D6
DEPTH
HW
DEPTH
*
WILL ALSO ACCEPT
4" (100mm)
DEEP PANS
; D6
UNITS WILL ACCEPT
6" (153mm)
DEEP PANS
ELECTRICAL
VOLTAGE PHASE CYCLE
/
HZ AMPS
kW
PLUG CONFIG
.
120
1
60
19.9 2.39
NEMA
L5-30
P
30
A
-125
V PLUG
at 208
1
60
8.6 1.80
NEMA
6-15
P
at 240
1
60
9.9 1.39
15
A
-250
V PLUG
230
1
50/60
9.5 2.20
BS
1363
PLUG
(
UK ONLY
)
20
8-
24
0
INSTALLATION REQUIREMENTS
Unit must be installed level and must not be installed in any area
where it may be directly affected by steam, grease, dripping water,
high temperatures, or any other severely adverse conditions.
Hot well outer walls can reach 200° to 260°F (93° to 127°C). Verify
countertop material temperature rating with manufacturer before
installing hot well to ensure countertop can withstand heat.
CLEARANCE REQUIREMENTS
4" (152mm)
FROM BOTTOM
LENGTH
WIDTH
