SPIRAL BEVEL GEARBOXES RANGE “POWERGEAR”
7. General Arrangement & Parts List
7.1

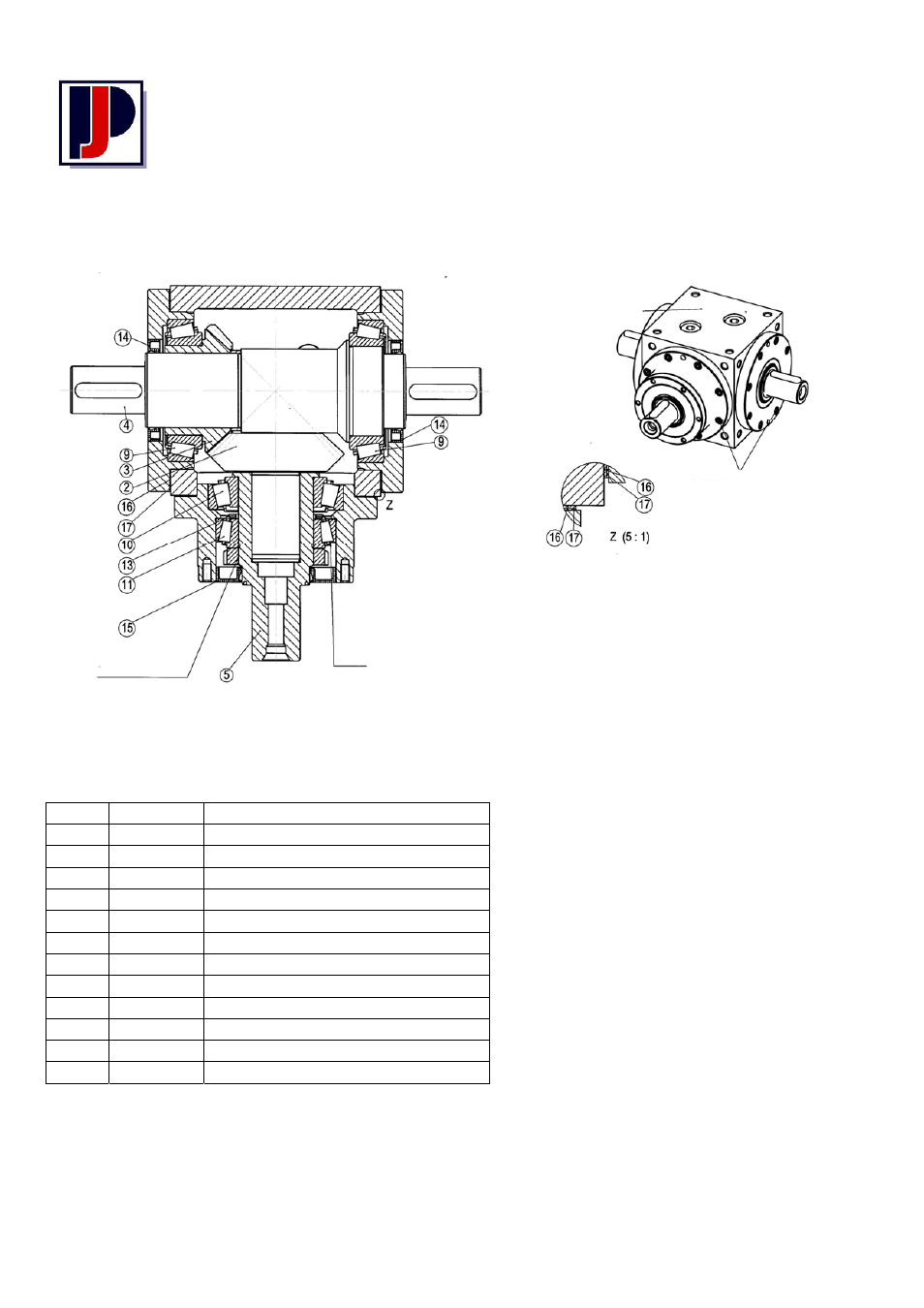

General Arrangement
7.2 Parts
List
Item Qty Description
2 1 Pinion
3 1 Bevel Gear
4 1 Output Shaft
5 1 Input Shaft
9 2 Taper Roller Bearing
10 1 Taper Roller Bearing
11 1 Taper Roller Bearing
13 1 Nilos-Ring
14 2 Shaft Seal
15 1 Shaft Seal
16 3 Sealant Washer
17 3 Shim Set
additional grease
in a semicircle
secured with
Loctite 243
tighten screw torque 10 Nm
type plate
