INSTALLATION SHEET
MOTION SENSOR LED LIGHT
ACCESSORIES MODEL: 710024-NF
710030-NF

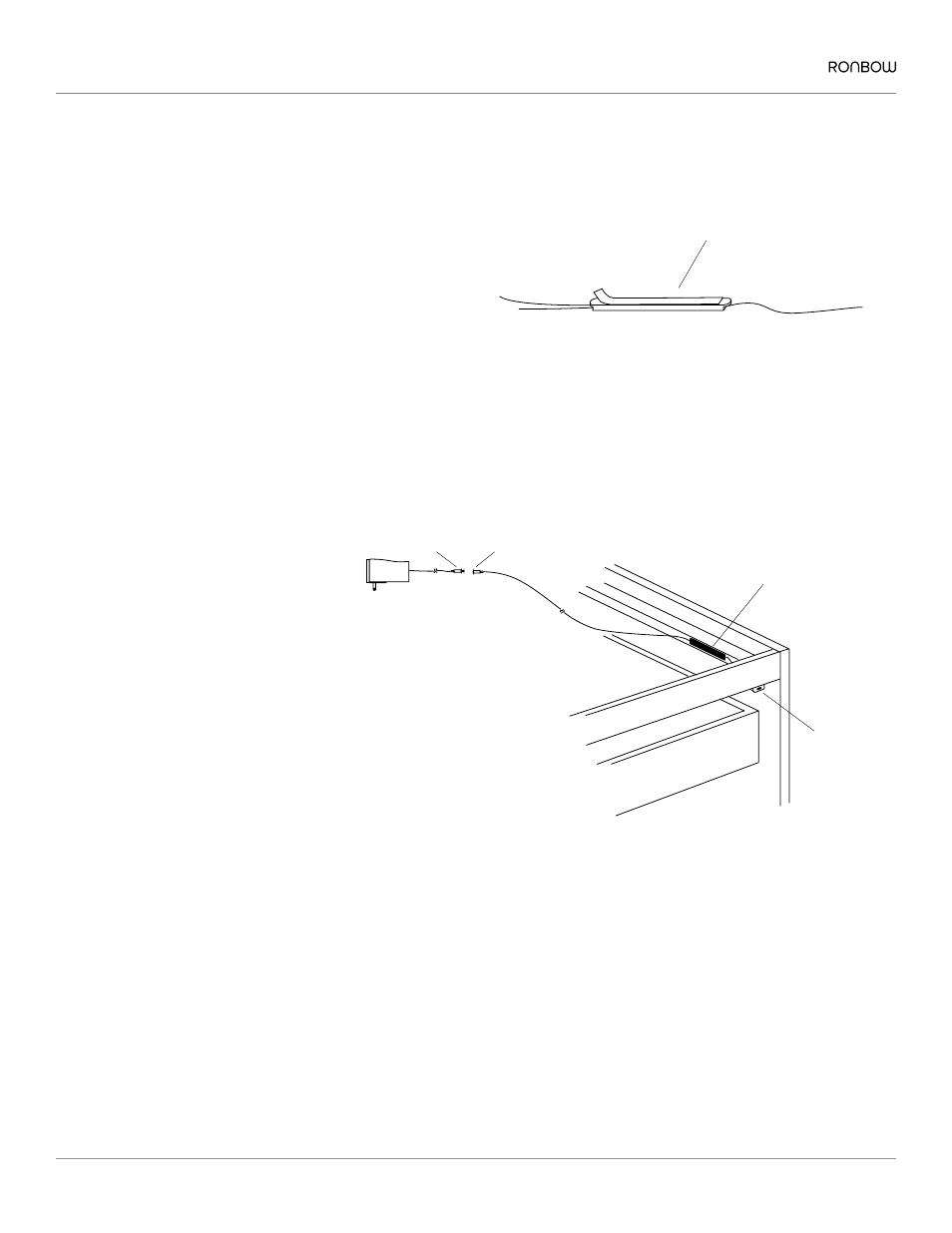

StEp 5: Place the LED circuit box in a discreet
location by removing the 3M backing.
See Figure 5.
figure 5.
3M Backing
Wire to
motion sensor
Wire to
power adapter
StEp 6: Plug the DC out from power adapter to
DC in from LED circuit box.
See Figure 6.
figure 6.
DC Out DC IN
LED circuit box
Infrared motion
sensor
StEp 7: Plug in the power adapter to the wall
outlet.
Note: Refer to hard wire section if installing directly
to the house electricity.
StEp 8: This step is optional to prevent the wires
from hanging loosely inside the cabinet. It is recom-
mended to use wire molding or wire staples.
