RONBOW CORP INSTALLATION GUIDE ronbow.com
INSTALLATION SHEET
MOTION SENSOR LED LIGHT
ACCESSORIES MODEL: 710024-NF
710030-NF
StEp 1: Locate the recessed wood behind the front
support.

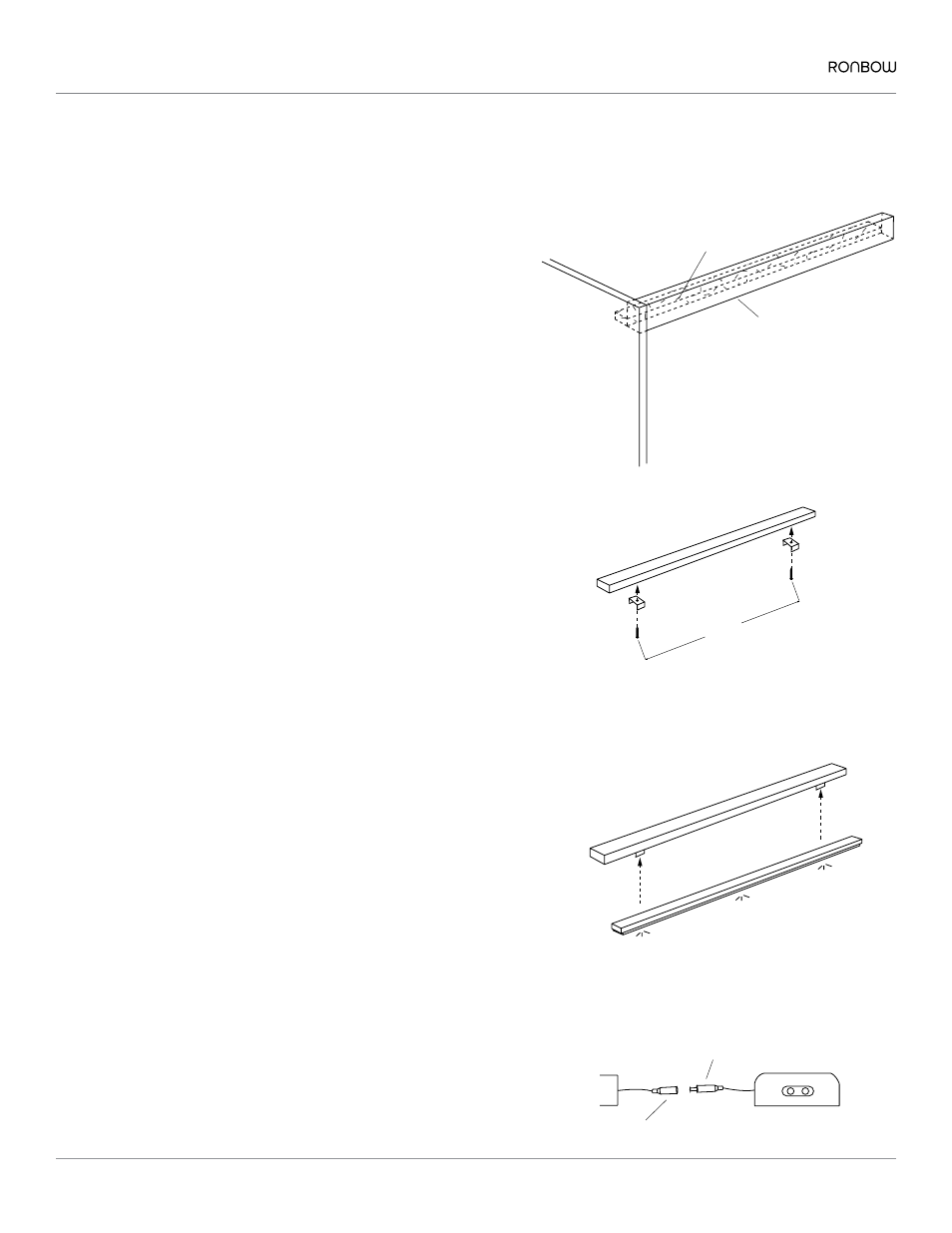

See Figure 1.
figure 1.
Front support
Left side wood panel
Recessed wood for LED
StEp 2: Using the (2) brackets and screws
supplied place a bracket on each side of the re-
cessed wood.
See Figure 2.
Note: For easier accessibility to the recessed wood,
remove the large drawer from the cabinet by
locating the black clips at the bottom of the drawer
and pulling each clip towards you.
figure 2.
MAX 16”
StEp 3: Once the brackets are secured push the
LED strip upward until it snaps into position.
See Figure 3.
Note: To release the LED strip simply pull down
gently. LED strip can be placed with wire on left or
right.
figure 3.
StEp 4: The position of the infrared motion sensor
needs to match the wire coming out of the LED
strip. Connect the male to female connectors.
See Figure 4.
figure 4.
Female
Male
