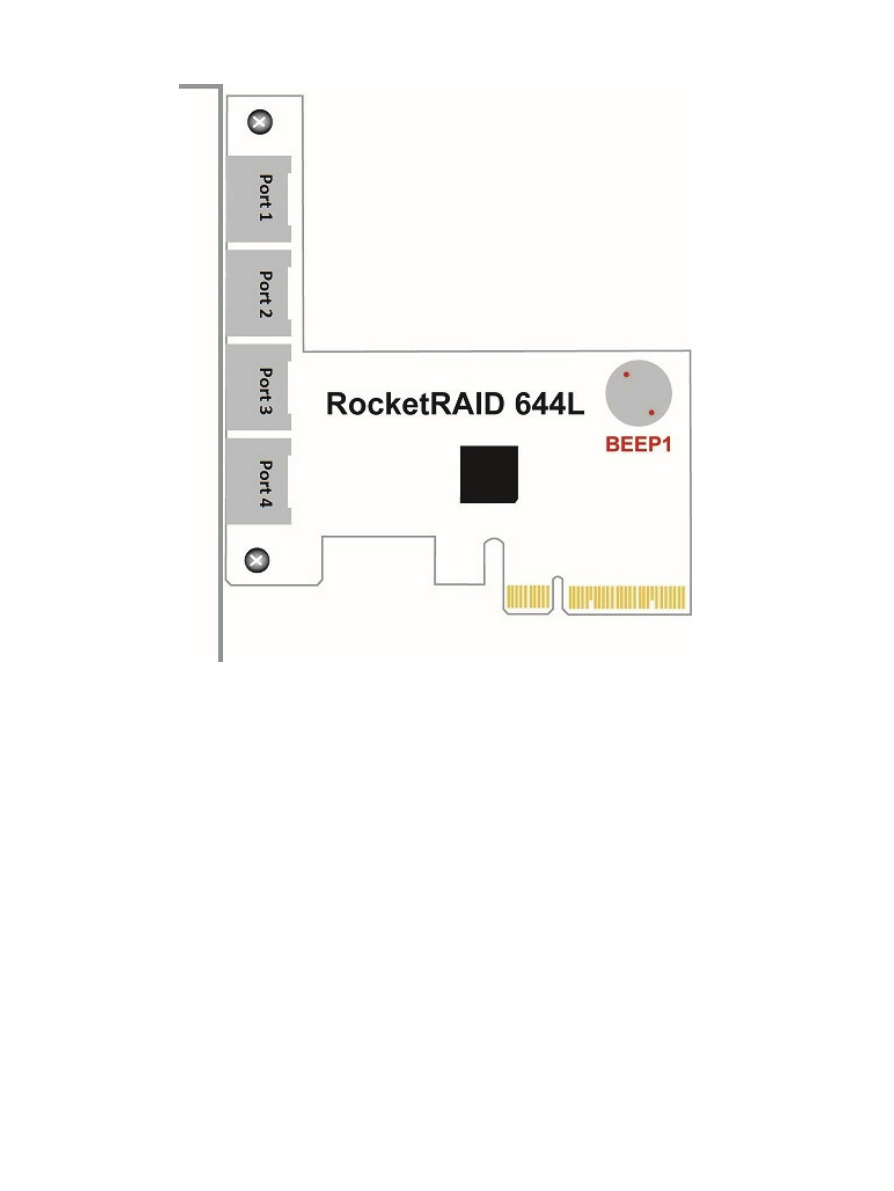

RocketRAID 644L





Installing the RocketRAID 64xL RAID Host Adapter

Note:
Make sure the system is powered‐off before installing the
RocketRAID 64xL RAID Host Adapter.
1) Open the system chassis and locate an unused PCI‐E (2.0 or 1.0) ×4

(or x8/x16) slot.

2) Remove the PCI slot cover.
3) Gently insert the RocketRAID 64xL into the PCI‐E slot, and secure

the bracket to the system chassis.

4) After installing the adapter, attach the hard disks or disk enclosure

to the RocketRAID 64xL card using the SATA cables.

5) Close and secure the system chassis.
