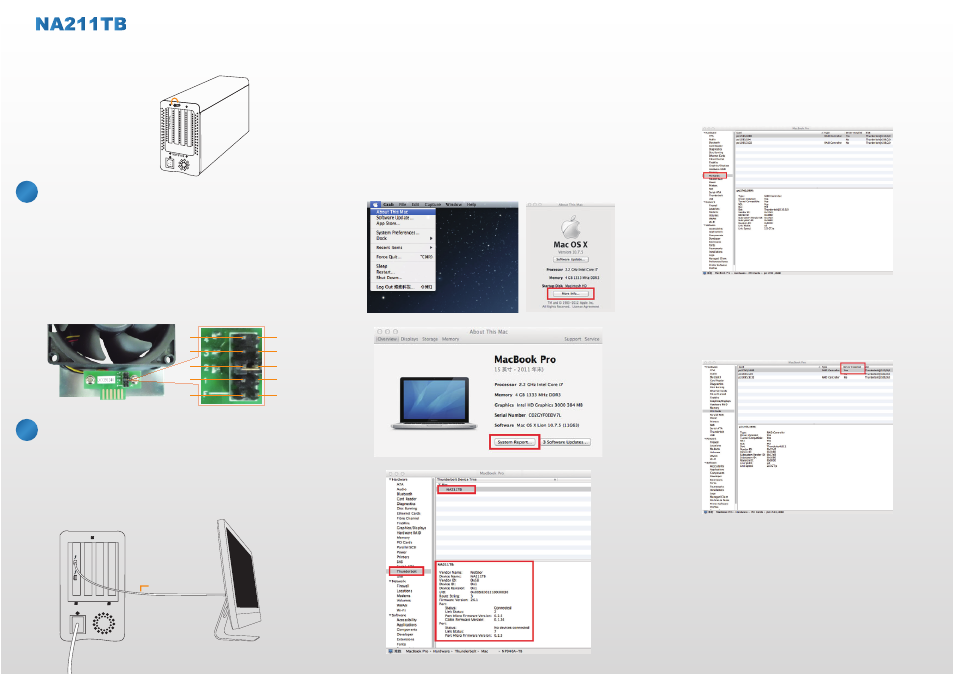

Step  4

4. Put  the  top  cover  back  and  tighten  the  thumbscrew.

1. Connect  TurboBox  with  power  source,  and  then  connect

TurboBox  and  HOST  with  Thunderbolt

TM

 cable.

2. The  NA211TB  is  designed  to  be  powered  on  and

powered  off  simultaneously  with  HOST  when  TurboBox

NA211TB  is  connected  to  HOST  by  Thunderbolt

TM

 cable.

Therefore,  power  on  HOST  first,  and  then  NA211TB  will

be  powered  on  automatically.  (NA211TB  supports  hot-­plug

and  hot-­unplug  for  powering-­on  and  powering-­off)

3. Verify  HighPoint  Thunderbolt

TM

 target  card  is  recognized  by

HOST.  Click  the  Apple  icon  on  top  left  of  the  screen,  and

select  About This Mac,  and  then  select  More Info.  Next,

select  System Report,  and  select  Thunderbolt

TM

 on  left  side

of  the  pane  of  System  Information.  Select  NA211TB  to

see

information  about

HighPoint  Thunderbolt

TM

 target  card.

4. Verify  the  PCIe  cards  installed  inside  NA211TB.

After  seeing  information  on

HighPoint Thunderbolt

TM

 target

card,

click  PCI Cards  on  left  side  of  the  pane  of

System  Information,  and  then  you  will  see  all  the  PCIe  cards

listed.  (For  RAID  controller  card,  from  starting  up,  it  will  take

more  time  for  its  info  to  be  shown)

5. Verify  the  drivers  of  PCIe  cards  are  installed.

When  you  see  all  the  PCIe  cards  listed  on  step  4,

there  will  be  a  column  Driver Installed  indicating  the

status  of  the  drivers  of  the  PCIe  cards.

If  the  status  shows  “No”,  please  find  and  install  the

Thunderbolt

TM

-aware  driver  of  the  PCIe  card,  and

then

the  status  will  show  “Yes”.

6. While  TurboBox  NA211TB  is  connected  to  HOST  by

Thunderbolt  cable,  when  shutting  down  the  HOST,

the  NA211TB  will  be  shut  down  simultaneously  as  well.

Thunderbolt

TM

PCIe Expansion Enclosure

6.

Fan  Speed  Adjustment

To  adjust  the  fan  speed  of  80  mm  cooler  on  NA211TB,  pull
the  fan  cooler  out.  On  the  top  side  of  cooler’s  connector,
there  are  five  sets  of  jumpers  labeled  4,  3,  2,  1,  and  F  from
top  to  bottom.  The  default  setting  is  the  jumper  being  placed
over  pin  5  and  pin  6  on  label  2  for  moderate  fan  speed.
The  fan  speed  increases  from  label  4  to  label  F
(F  is  full  speed).  If  all  pins  are  open  (no  jumper  placed  over
pins),  the  fan  will  not  spin.

7.

Operation  and  Verification

The  following  verification  steps  are  for  Mac  OS  only.
When  verification  steps  for  Windows  operating  system
become  ready,  the  content  will  be  added.

3

1

5

9

7

4

2

6

10

8

Step  3.1

Step  3.3

Step  3.4

Step  3.2

iMac

Thunderbolt  cable

If  you  have  any  further  questions,  please  contact  your

regional  distributor,  or

HighPoint Technologies,Inc

HighPoint Technologies, Inc.

Address: 1161 Cadillac Court, Milpitas, CA 95035
E-mail: [email protected]
Phone: (408) 240-6108 (Monday~ Friday, from 9am~6pm)

Skype: Highpoint.Thunderbolt

Support: www.highpoint-tech.com/websupport
