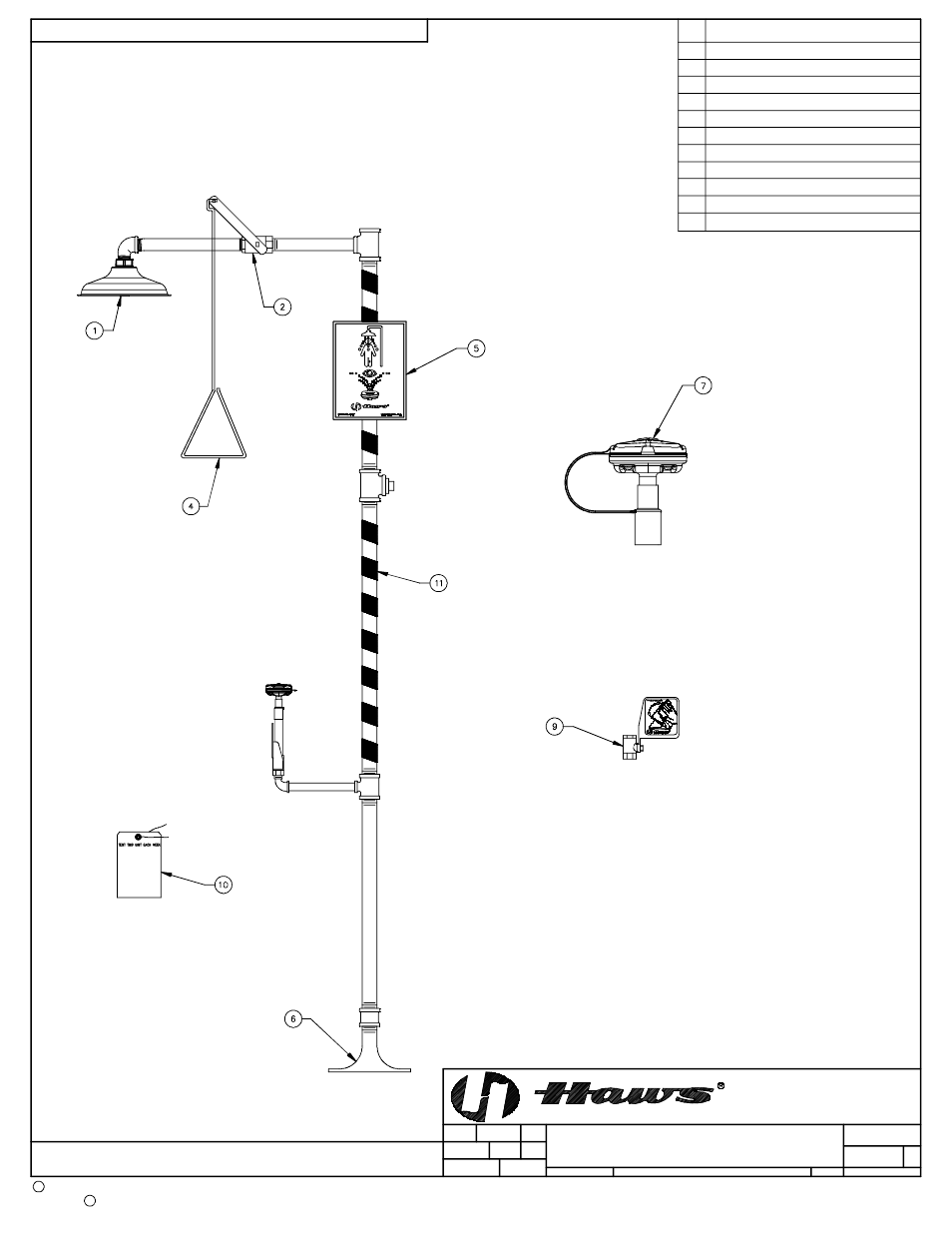

Parts breakdown, Valve assembly, Eye/face wash assembly – Haws 8317 User Manual
Page 4: Page, When ordering parts please specify model number, 4 of 5
1
SP829 SHOWER HEAD
2
SHOWER VALVE ASSEMBLY
3
4
SP200 PULL ROD
5
SP178 SHOWER SIGN
6
SP75 FLOOR FLANGE
7
SP65 EYE/FACE WASH ASSY
8
-
9
SP238 VALVE ASSEMBLY
10
SP170 TEST TAG
VALVE ASSEMBLY
11
SP185 STRIPE TAPE
PARTS BREAKDOWN
EYE/FACE WASH ASSEMBLY
-
DESCRIPTION
ITEM
APPROVED
DRAWN
PART NUMBER
DRAWING NO.
SCALE:
SHEET
OF
REV
DRAWING TYPE:
SIZE: A
BY
ECN NO.
PAGE
DATE
DATE
ECN:
REVISED PER
CHKD
Haws Corporation - All Rights Reserved
HAWS and other trademarks used in these materials are the exclusive property of Haws Corporation.
C
R
MODEL(S)
1455 KLEPPE LANE
SPARKS, NEVADA 89431
(775) 359-4712 FAX (755) 359-7424
E-MAIL: [email protected]
WEBSITE: WWW.HAWSCO.COM
THIS DOCUMENT IS TRUE AND CORRECT AT TIME OF PUBLICATION. CONTINUED PRODUCT IMPROVEMENTS
MAKE SPECIFICATIONS AND MEASUREMENTS SUBJECT TO CHANGE WITHOUT NOTICE.
WHEN ORDERING PARTS PLEASE SPECIFY MODEL NUMBER.
CLF
03/11/93
11493C00 19
0002080152
8317
SHOWER EYE/FACEWASH COMBO
1"12.5
1
1
HM
4 of 5
PARTS BREAKDOWN
4780
2012
