30 305, 505, 705 Outdoor Manual

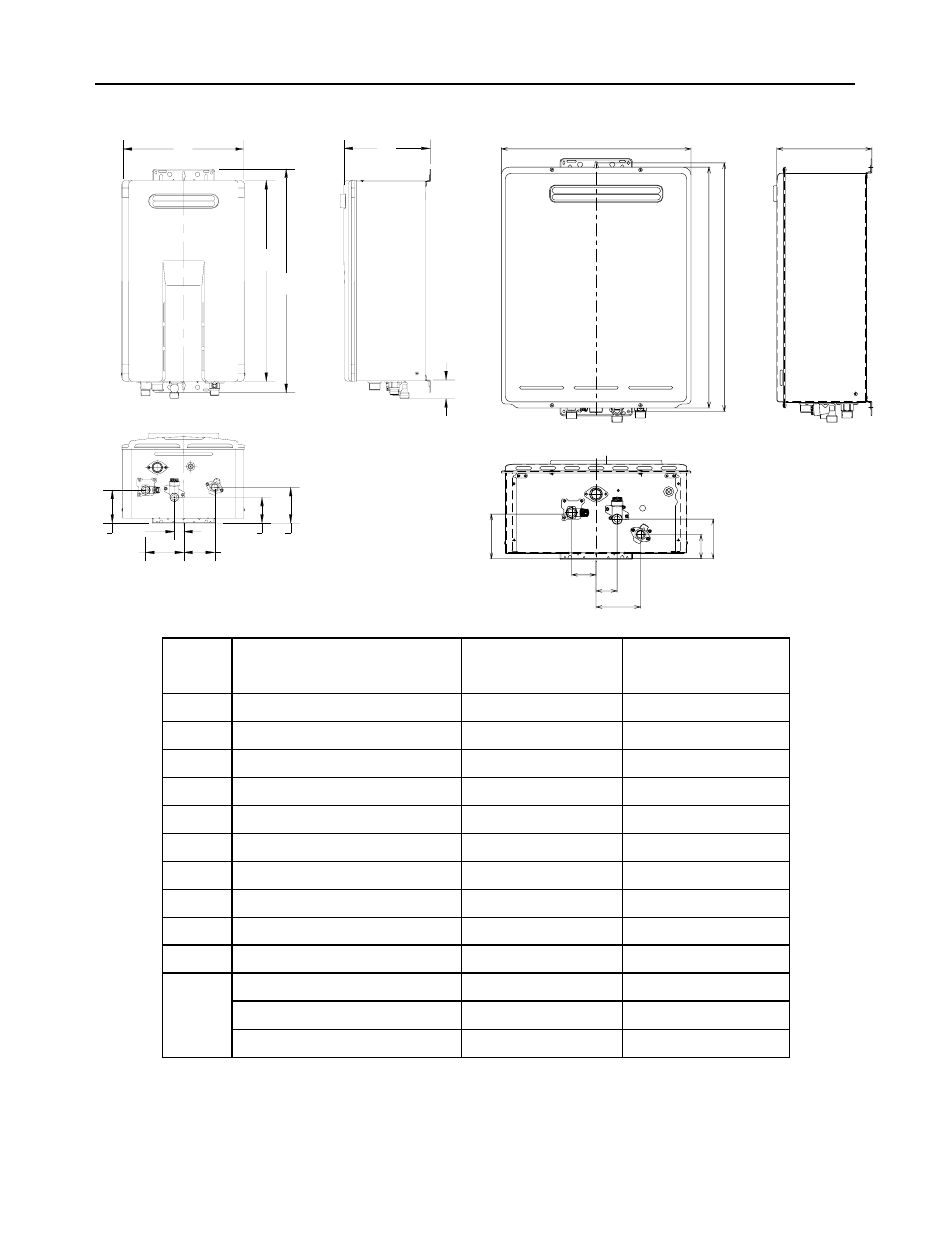

Dimensions
DIM DESCRIPTION 305, 505
in (mm)
705
in (mm)
A Width 14 (355.6) 18.5 (470)
B Depth 9.8 (249.5) 9.3 (235.5)
C Height - Unit 22.9 (582) 23.6 (600)
D Height - with brackets 25.4 (646.4) 25.2 (640)
E Hot Water Outlet - from wall 3.8 (96) 4.5 (115)
F Hot Water Outlet - from center 4.3 (110) 2.4 (61)
G Cold Water Inlet - from wall 3.0 (75) 3.9 (99)
H Cold Water Inlet - from center 1.1 (27) 2.0 (52)
I Gas Connection - from wall 4.1 (104) 2.4 (61.2)
J Gas Connection - from center 3.5 (89) 4.3 (110)
From base to gas connection 1.6 (40) 1.6 (40)
From base to cold connection 2.0 (50) 2.0 (50)
From base to hot connection 1.6 (41) 1.6 (41)
K
G I
F
H
J
E
C
D
A B
K
A
C
F
J
H
E
I G
D
B
305 and 505 Models 705 Model
