14 305, 505, 705 Outdoor Manual

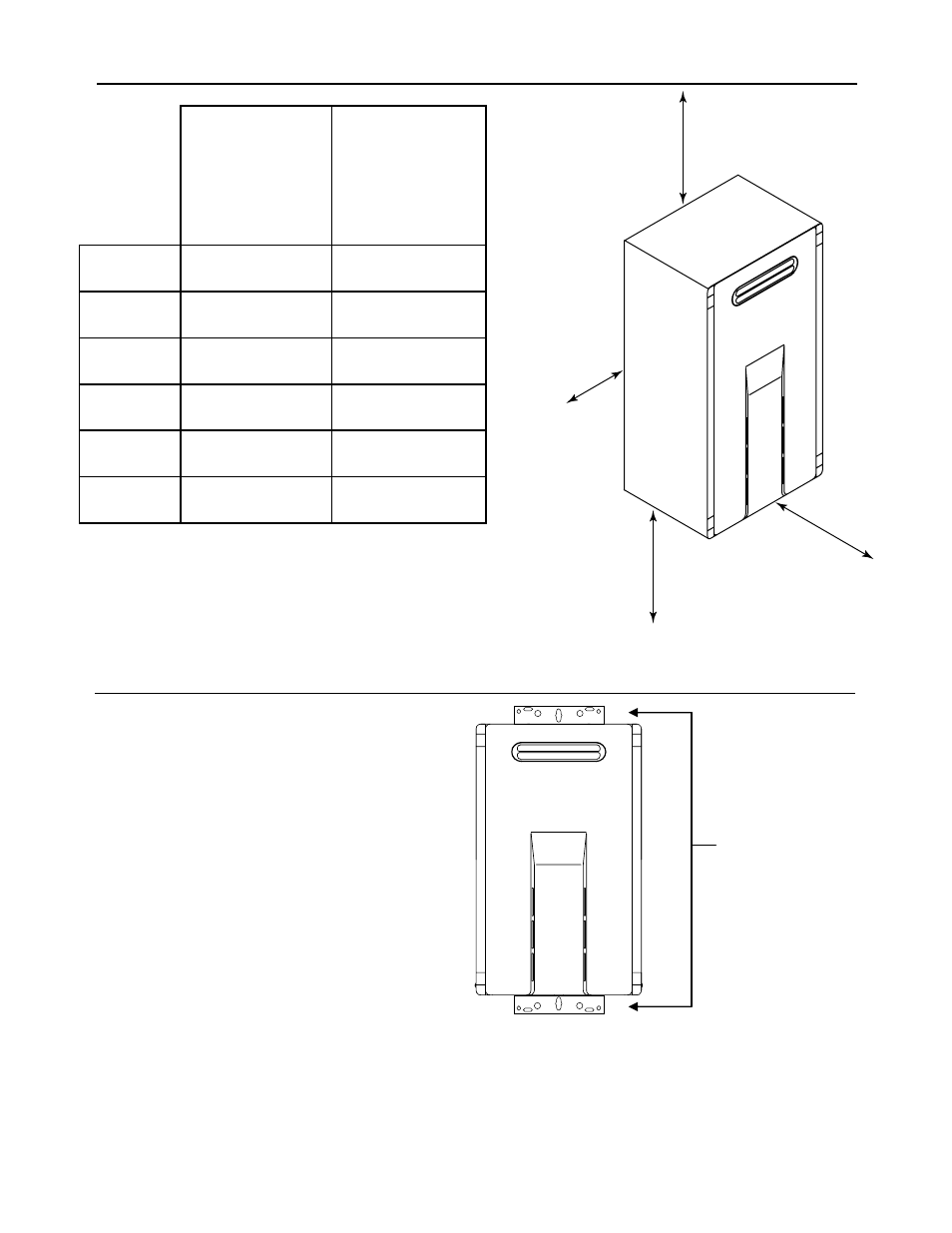

Clearances from Appliance
to side
to front
to top
to floor/ground
1. Identify the installation location and confirm that
the installation will meet all required clearances.
2. Securely attach the water heater to the wall using
any of the holes in the wall installation brackets
which are at the top and bottom of the water
heater. Ensure that the attachment strength is
sufficient to support the weight. Refer to the
weight of the water heater in the Specifications
section.
Attachment of the Water Heater
wall installation
brackets
* The clearance for servicing is 24 inches in front of
the water heater.
to Combustibles
to Non-
Combustibles
Top of
Heater
12 inches (305 mm) 2 inches (51 mm)
Back of
Heater
0 (zero) 0 (zero)
Front (Panel)
24 inches (610 mm) * 0 inches (0 mm)
Sides of
Heater
6 inches (152 mm) 1/8 inch (3.2 mm)
Floor/
Ground
12 inches (305 mm) 2 inches (51 mm)
Front
(Exhaust)
24 inches (610 mm) 24 inches (610 mm)
