* IF MOUNTING WITH AN OPTIONAL TILT MOUNT
KIT, FOR OPTIMAL COLLECTOR ANGLE REFER TO
ITS INSTRUCTION SHEET FOR THE APPLICABLE “A”
DIMENSION.
** DIMENSION DEPENDANT ON ROOF CORRUGATION
SPACING. ADJUST AS NEEDED.
NOTICE
COLLECTOR A B C
Vert. 3.5’ X 7’ 86* 32** 14**
Vert. 4’ X 8’ 97* 35** 16**
Vert. 4’ X 10’ 121* 35** 16**
Horiz. 3.5’ X 7’ 42.25* 62** 28**
Horiz. 4’ X 8’ 47* 72** 28**
Horiz. 4’ X 10’ 47* 94** 30**
Table 1.
1. Determine the location of the supporting structure of
the roof. When possible, secure the corrugated metal
roof mounting bracket using all of the hole locations.
When not possible, always use the two up-slope hole
locations.
IMPORTANT: The corrugated metal roof mounting
bracket must be mounted directly over and into the
supporting structure of the roof (wood decking, wood
or steel trusses. Never mount into the metal roofing
material alone.
2. Layout the roof per Figure 1 for vertical mounting,
Figure 2 for horizontal mounting, and Table 1. Note
that the M10-1.50 bolt hole in the corrugated metal roof
mounting bracket should be located at the center of the
mounting points shown in Figures 1 & 2. See Figure 4
for bolt hole location.
3. Clean the area where the bracket is to be installed.
Remove the peel and release paper from both bases,
apply a generous amount of sealant around and under
the bracket base and screw holes to form a water tight
seal then align and install the bracket per note 1. See
Figures 3 & 4.

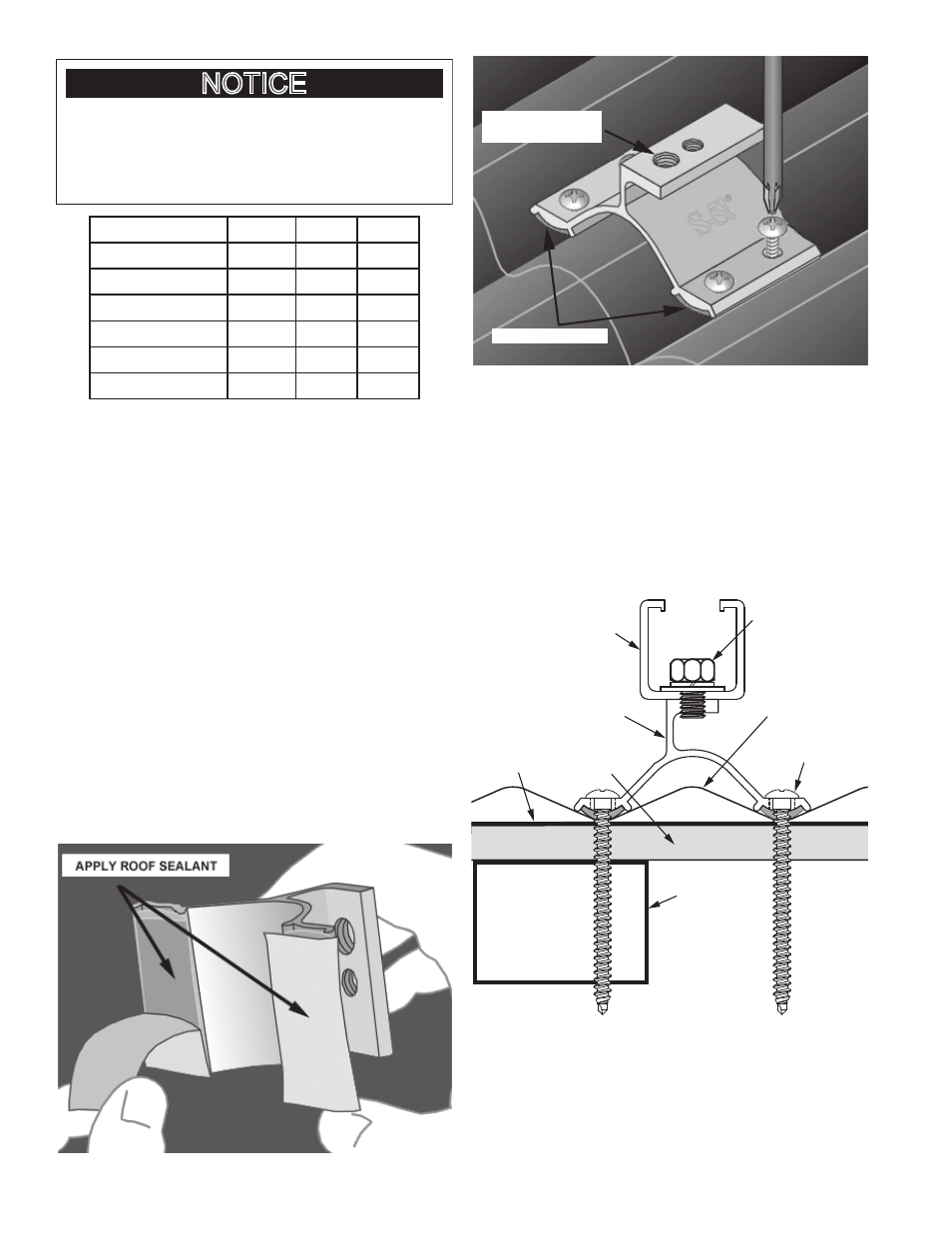

Figure 3.
ROOF SEALANT
M10-1.50 BOLT
HOLE LOCATION
Figure 4.
4. Attach the corrugated metal roof bracket to the
supporting roof structure with the included #14 x 3”
OMG heavy duty roof fasteners. If a longer fastener is
required, use only OMG brand or equivalent. In some
cases, a pilot hole of the proper size may be required
to install the fastener. Alternate from side to side when
installing and tightening the fasteners. See Figure 4.
5. Install the solar collector mounting bracket to the
corrugated metal roof bracket with the included M10-
1.50 x 1” SS hex bolt. See Figure 5.
MOUNTING
BRACKET
SS BOLT
LOCK WASHER &
FLAT WASHER
OMG
SCREWS
S5!
CORRUBRACKET
PLYWOOD
ROOFING
ROOF
MEMBRANE
CORRUGATED
ROOF
WOOD OR STEEL
TRUSS
Figure 5.
6. Repeat steps 2-5 for the remainder of the corrugated
metal roof mounting bracket locations.
