State Flat Roof - Manual (Page 2)

2
7. The threaded studs should be the only part of the base
plate that is exposed. There may be bleed out of the
sealant applied around the studs. When the top plate is
installed this will help create a water tight compression
fitting. See Figure 5.
8. Install the top plate over the base plate threaded studs.
The top plate should be centered on the base plate when
installed properly. See Figure 5.
9. Install an EPDM bonded washer, stainless steel lock
washer, and hex nut over each stud and tighten. See
Figure 5.
10. Repeat steps as needed for the remainder of the
mounting bracket locations.

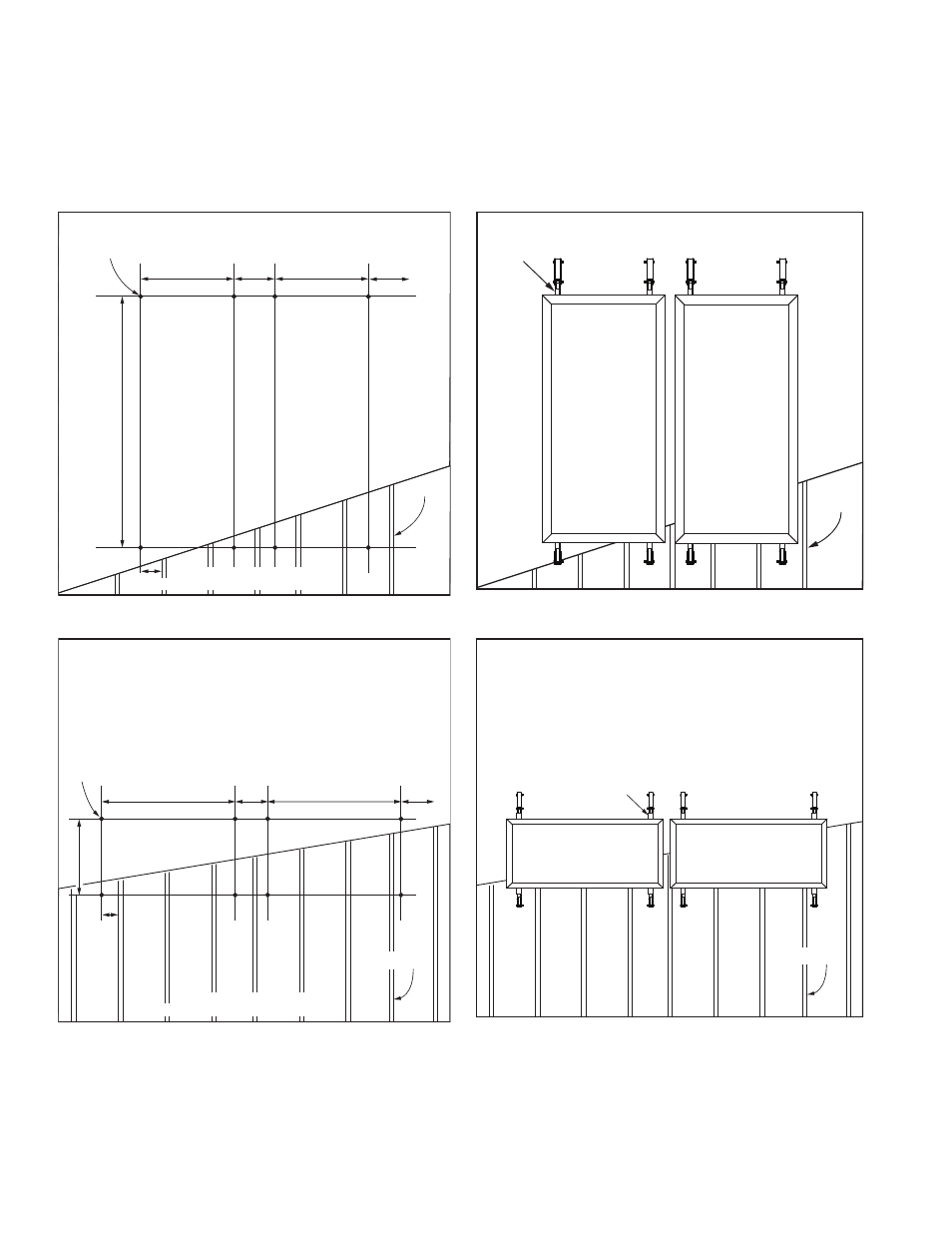

MOUNTING
POINTS
B” B” C” C”
A”
RAFTER
D” BASED ON 16” CENTER RAFTERS
VERTICAL MOUNT
MOUNTING
BRACKETS
RAFTER
Figure 1. Figure 2.
RAFTER
B” B” C”
MOUNTING
POINTS
C”
A”
D”
BASED ON 16” CENTER RAFTERS
HORIZONTAL MOUNT
Figure 3.
RAFTER
MOUNTING
BRACKETS
Figure 4.
