5

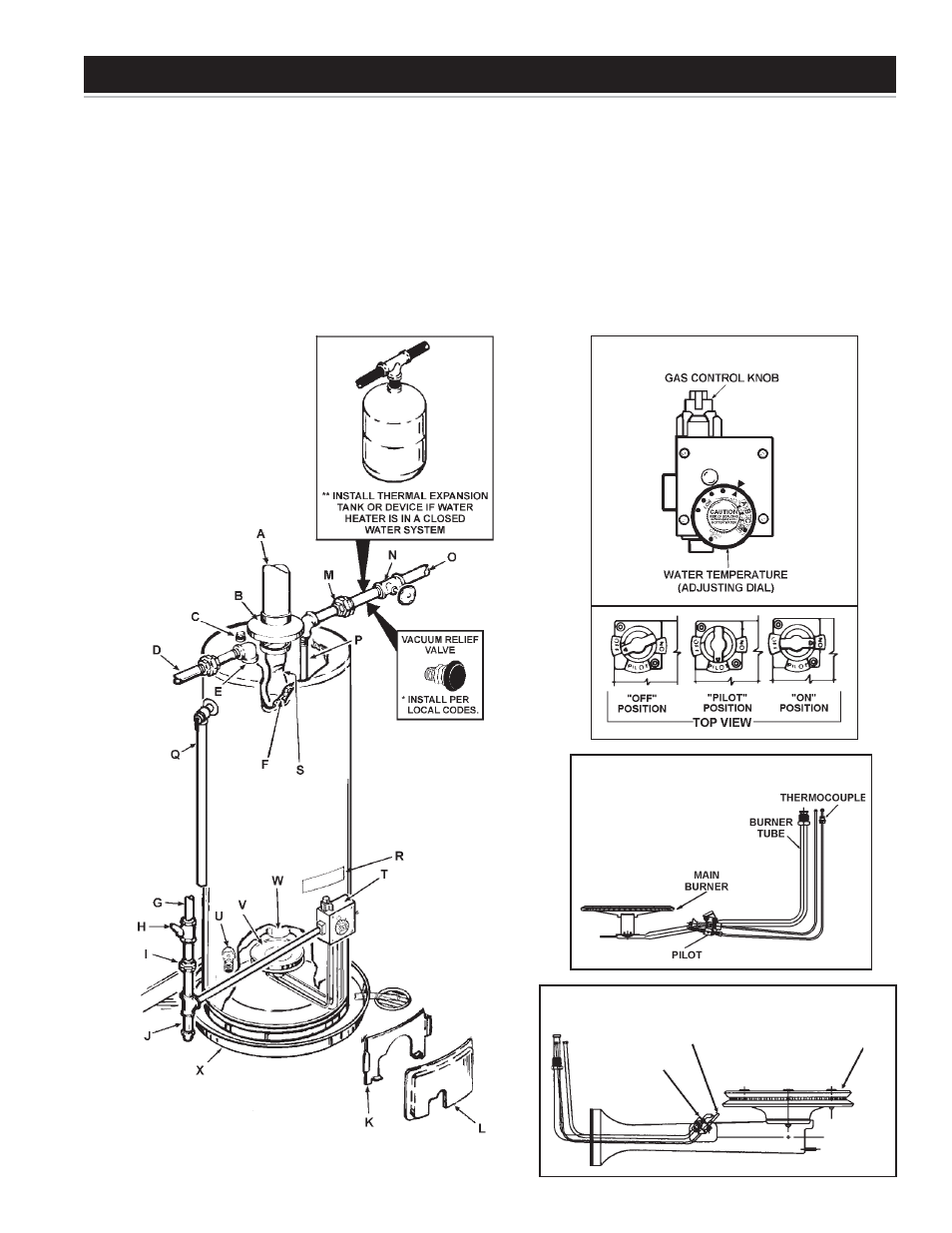

TYPICAL INST TYPICAL INST TYPICAL INST TYPICAL INST TYPICAL INSTALLA ALLA ALLA ALLA ALLATION TION TION TION TION
GET TO KNOW YOUR WATER HEATER - GAS MODELS
A Vent Pipe
B Drafthood
C Anode
D Hot Water Outlet
E Outlet
F
Insulation
G Gas Supply
H Manual Gas Shut-off Valve
FIGURE 1.
I Ground Joint Union
J Drip Leg (Sediment Trap)
K Inner Door
L Outer door
M Union
N Inlet Water Shut-off Valve
O Cold Water Inlet
P Inlet Dip Tube
Q Temperature-Pressure Relief Valve
R Rating Plate
S Flue Baffle(s)
T Thermostat
U Drain Valve
V Pilot and Main Burner
W Flue
X Drain Pan
TO VENT TERMINATION
ON ROOF
(V) PILOT & MAIN BURNER - NATURAL GAS
(T) THERMOSTAT
MAIN
BURNER
THERMOCOUPLE
PILOT
BURNER
(V) PILOT & MAIN BURNER - PROPANE GAS
**CLOSED WATER SYSTEMS ARE THOSE
WITH BACK FLOW PREVENTION DEVICES
INSTALLED IN THE WATER SERVICE LINE.
* INSTALL IN ACCORDANCE WITH
LOCAL CODES.
* DRIP LEG AS REQUIRED BY
LOCAL CODES.
* ALL PIPING MATERIALS TO BE
SUPPLIED BY CUSTOMERS.
