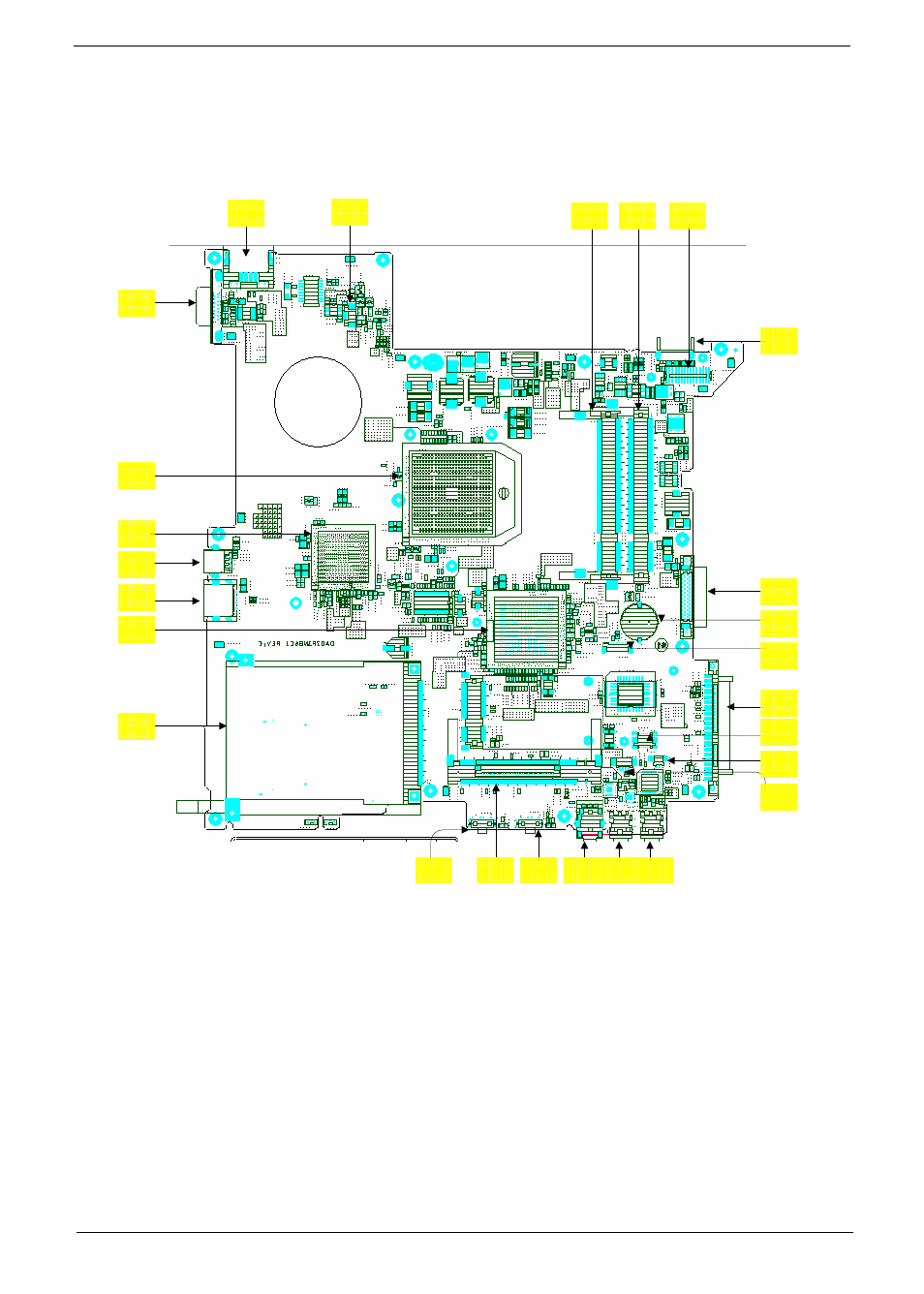

Bottom View
NOTE: This is engineering sample. The image above may not be exactly the same as the real main board you
get.
1 CN6 RJ45 Connector 14 CN15 RTC Connector
2 CN8 Fan Connector 15 CN16 Bluetooth Connector
3 CN11 So-Dimm Connector (4H) 16 CN18 HDD Connector
4 CN10 So-Dimm Connector (8H) 17 CN20 MDC Connector
5 CN9 Power Board Connector 18 CN21 Internal MIC Connector
6 CN7 CRT Connector 19 CN22 Internal Speaker Connector
7 U16 CPU ATHLON64 20 CN26 Line-in Jack
8 U19 North Bridge RS485 21 CN27 MIC Jack
9 CN12 S-Video Connector 22 CN28 SPDIF Connector
10 CN14 USB Connector 23 CN24 Mini PCI Connector
1 2
3 4 5
6
24
7
8
9
13
10
14
11
15
16
12
17
18
19
20 21 22 25 23 26
