4 Chapter 1

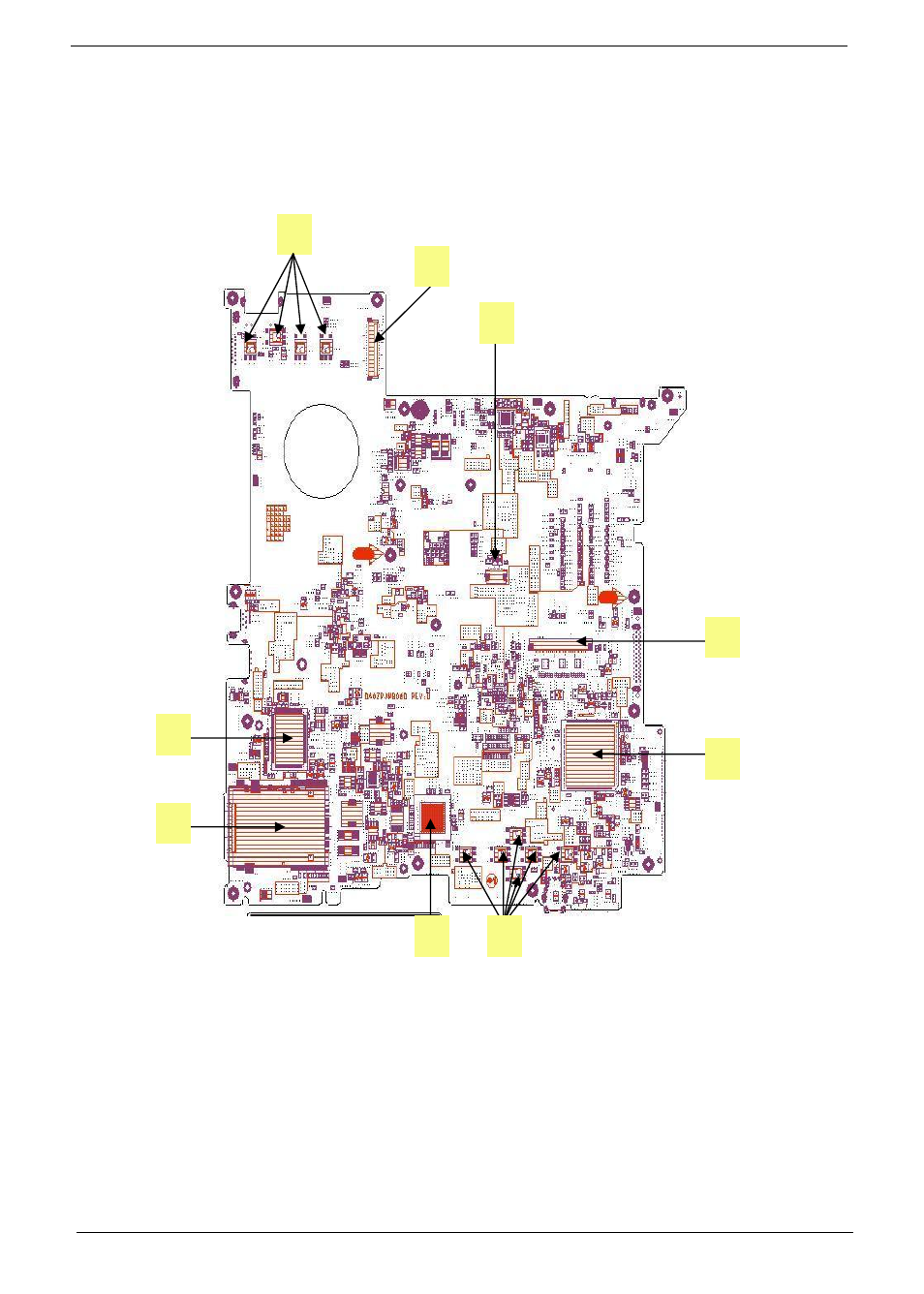

Board Layout
Top View
1 CN1 LCD Cable Connector 6 U9 ENE CB714
2 SW1-4 Quick Key Switch 7 SW5-10 Touchpad Switch
3 CN2 Touchpad Board Connector 8 U7 EC PC97551
4 U6 LAN RTL8100CL 9 CN3 Keyboard Connector
5 CN4,5,28 5-in-1 Card Reader Connector
2
1
3
4
5
6 7
8
9
