Sheet6, Drawing view11, Drawing view12 – Ag Spray Equipment BA6D_BA8D User Manual

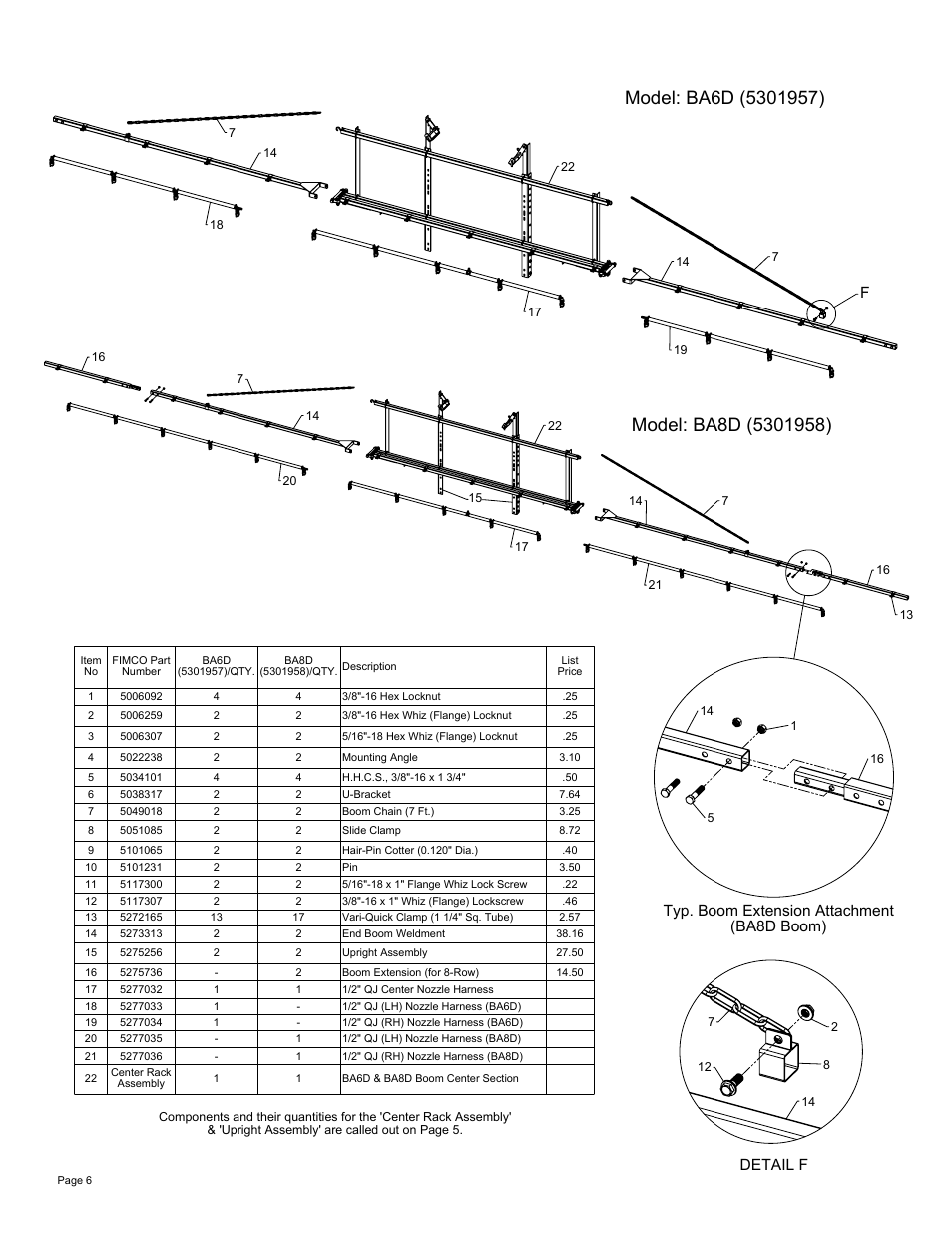

Page 6: Detail view e (1 : 8), Detail view f (1 : 5), Typ. boom extension attachment (ba8d boom), Detail f
