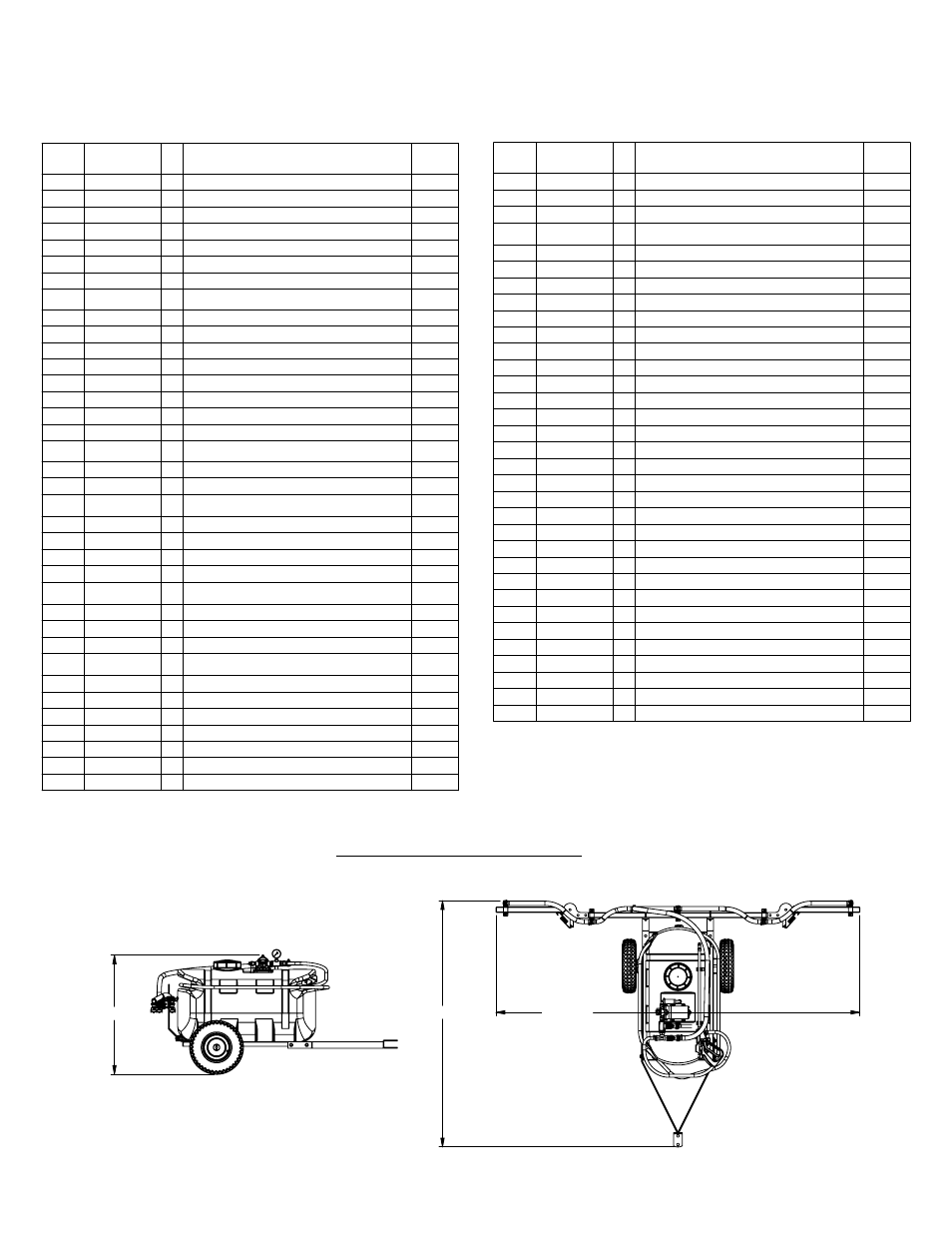

Approximate Unit Dimensions
Page 4
Parts List
Model: AG25LG5FHGTP-BA
(List Prices are Subject to Change)
Item
No
Part Number Qty Description
List
Price
1
5006259
4 3/8"-16 Hex Whiz (Flange) Locknut
.25
2
5006307
8 5/16"-18 Hex Whiz (Flange) Locknut
.25
3
5016031
2 Flatwasher, 1/2"
.25
4
5020060
1 Hose, 1/2"-1 Brd. x 2 3/4"
.64
5
5020215
1 Hose, 3/8"-1 Brd. x 15 Ft.
8.50
6
5020389
1 Hose, 1/2"-1 Brd. x 43"
5.78
7
5020490
1 Hose, 3/8"-1 Brd. x 7 1/4"
1.25
8
5021045
2 Tire/Wheel (410/350 x 6" x 2-1/4" Offset)
(White)
26.95
9
5034038
4 H.H.C.S., 5/16"-18 x 3/4"
.55
10
5034159
2 Square U-Bolt, 5/16" x 1 5/16" x 1 7/8"
.99
11
5034531
4 5/16"-18 x 5/8" Flange Lock Screw
.44
12
5051114
7 Hose Clamp, 3/8"
.63
13
5053096
2 Handgun Clip, for Blow-Molded Tanks
.95
14
5058189
1 5" Lid (NO Lanyard)
10.50
15
5075018
1 Grommet
1.00
16
5095071
2 Boom Mount
7.25
17
5100532
1 Intake Tube: 1/2" OD x 3/8" ID x 18 1/4" (25
Gallon)
18
5101207
2 Cotter Pin, 5/32" x 1 3/4"
.10
19
5116251
1 Strainer, Suction Line
1.99
20
5117293
2 #10-24 x 3/8" Machine Screw, Phillips Round
Head
.25
21
5117307
4 3/8"-16 x 1" Whiz (Flange) Lockscrew
.46
22
5167007
1 Gauge, 0-100 p.s.i.
6.25
23
5272370
1 Tongue Weldment
23.54
24
5273959
1 Handgun w/X-26 Tip
24.95
25
5274373
1 Drain Plug Cap, Tether, and Washer
Assembly
2.95
26
5277037
1 Pump Assembly
26.1
5273232
1 SHURflo Pump (Model: 8000-543-936)
132.28
26.2
5277060
1 Plumbing Assembly (SHURflo Pump)
26.2.1
5011128
1 Nylon Reducing Nipple, 1/2" MNPT x 3/8"
MNPT
.50
26.2.2
5010193
1 Nylon Tee, 1/2" FNPT w/1/4" Port (Gauge)
11.90
26.2.3
5010113
1 Nylon "Tee" Fitting, 1/2" FNPT
3.09
26.2.4
5011054
1 Nylon Close Nipple, 1/2" MNPT
.41
26.2.5
5005021
2 Nylon Adapter, 1/2" MNPT x 3/4" MGHT
.78
26.2.6
5143188
2 Nylon Shut-Off Valve
3.14
26.2.7
5016066
2 Garden Hose Washer
.20
26.2.8
5149034
1 Poly Swivel, 3/8" Hose Barb
.64
Item
No
Part Number Qty Description
List
Price
26.2.9
5149035
1 Poly Swivel, 1/2" Hose Barb
.50
26.2.10 5006209
2 Poly Knurled Swivel Nut, 3/4" FGHT
.70
26.2.11 5067016
1 Nylon Fitting: 1/2" MNPT x 3/8" HB
.53
26.3
5117168
4 #10-24 x 1" Phillips Truss Head Machine
Screw
.25
26.4
5010043
1 Nylon Elbow: 3/8" MNPT x 1/2" HB
.66
27
5277040
1 Battery (Power) Cable (10 Ft. - 14 Gauge)
28
5277131
1 Frame Weldment (Black)
66.27
29
5301966
1 Generic 5-Nozzle Boom Kit
29.1
5274361
1 5-Nozzle Boom Sub-Assembly
78.00
29.1.1
5034159
2 Square U-Bolt, 5/16" x 1 5/16" x 1 7/8"
.99
29.1.2
5006307
4 5/16"-18 Hex Whiz (Flange) Locknut
.25
29.1.3
5273990
1 5-Nozzle Boom Weldment (Center Section)
38.00
29.1.4
5009914
2 Outer Boom Tube
7.79
29.1.5
5017660
1 End Plate (R.H.)
4.99
29.1.6
5017659
1 End Plate (L.H.)
4.99
29.1.7
5006344
2 1/4"-20 Flange Locknut
.39
29.1.8
5046344
2 Square Cap, Black (1 1/4" Square Tube)
.21
29.1.9
5019138
2 Extension Spring
1.10
29.1.10 5034204
2 H.H.C.S., 1/4"-20 x 1 3/4"
.25
29.2
5277127
1 QJ Harness Assembly (BA5SQK)
29.2.1
5056065
2 Single Hose Shank (1/2" Hose)
3.84
29.2.2
5056067
3 Double Hose Shank (1/2" Hose)
3.84
29.2.3
5086003
1 Nylon Hose Tee, 1/2" HB
1.06
29.2.4
5020009
2 Hose, 1/2"-1 Brd. x 26"
2.66
29.2.5
5020306
1 Hose, 1/2"-1 Brd. x 20"
2.21
29.2.6
5020144
2 Hose, 1/2"-1 Brd. x 10"
1.77
29.2.7
5116019
5 50 Mesh Nozzle Strainer, Red
1.11
29.2.8
5016157
5 Seat Washer
.40
29.2.9
5018265
5 Flat Spray Tip, Yellow
.84
29.2.10 5046219
5 Quick TeeJet Cap (Yellow)
.61
29.2.11 5051114
10 Hose Clamp, 3/8"
.63
29.3
5272165
5 Vari-Quick Clamp (1 1/4" Sq. Tube)
2.57
30
TA25Y
1 25 Gallon Tank (Yellow)
72.64
