DC-12V/2A
2

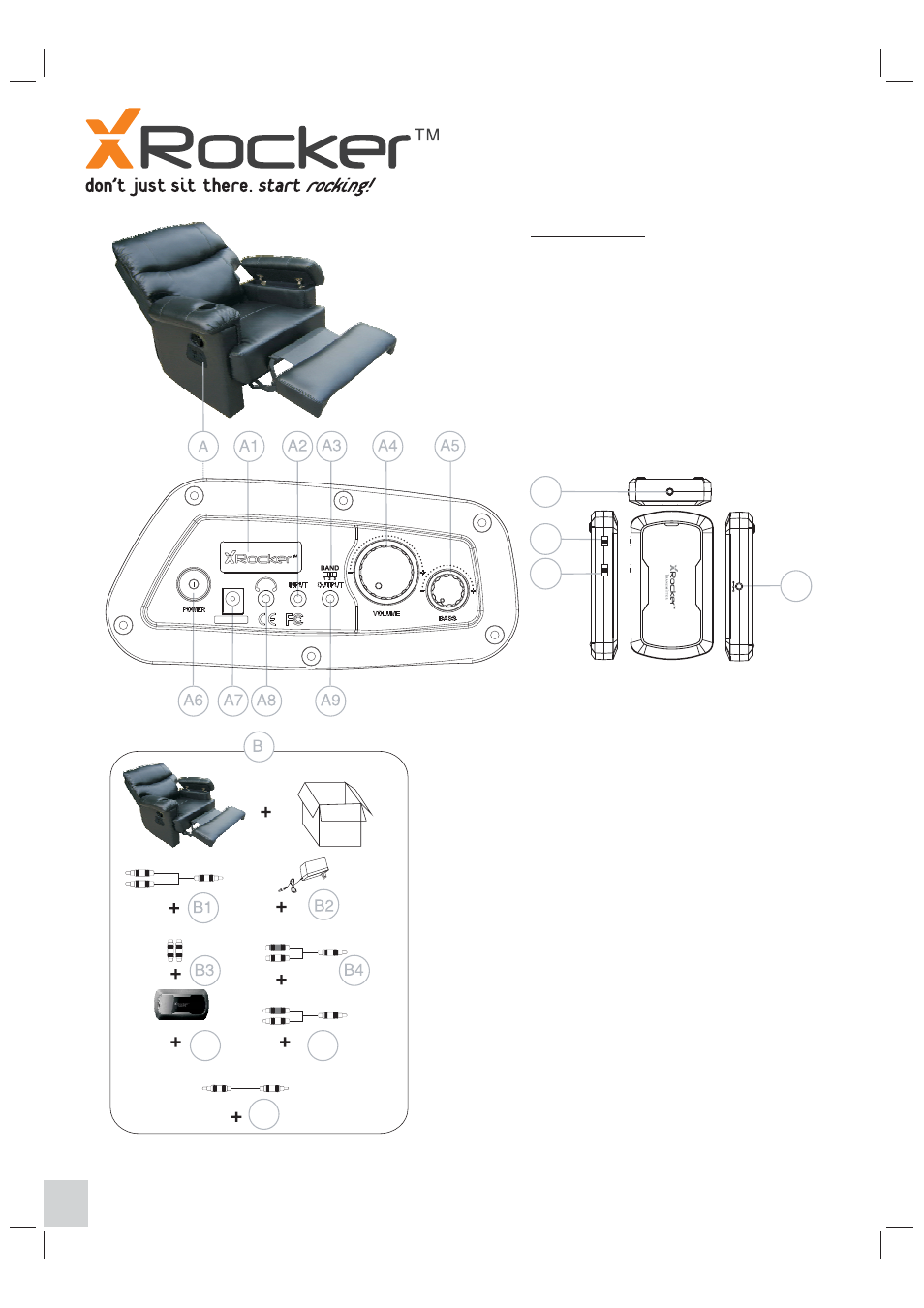

A-Control Panel
A1-Power Indicator Light
A2-Audio Input Jack
A3-
A4-Volume Adjustment
A5-
A6-Power On/Off Switch
A7-12V DC Power Input Jack
A8-Headphone Jack
A9-
A10-DC
Power Input Jack of TX
A11-Audio Input Jack of TX
A12-Power On/Off Switch of TX
A13-
Wireless Band Switch
Bass Volume Adjustment
Audio Output for linking multiple chairs
3V/200mA
Wireless Band Switch of TX
Need Help? Email: [email protected] Web: www.thexrocker.com
Phone:1 931 359 2603, In Europe, call +44 (0)845 468 0262
B-Accessories Supplied
B1-3m RCA Stereo male to 3.5mm stereo cable (1 PC)
B2-
OUTPUT:12V DC 2000mA 24W Main POWER Adapter.
B3-RCA female to female barrel adapter (2 PCS )
B4-0.15
RCA s to
B5-TX Box
B6-0.15m
B7-3.5mm stereo
to (1PC)
male
INPUT:100-240V AC 50/60Hz
m tereo female 3.5mm stereo male cable (1PC)
RCA stereo male to 3.5mm stereo male cable (1PC)
male 3.5mm stereo male cable
9.84ft/3m
B6
B7
B5
0.492ft/0.15m
*SOME PARTS MAY VARY SLIGHTLY
0.492ft/0.15m
0.492ft/0.15m
FEATURES
A12
A11
A13
AUDIO IN
OFF/ON
BAND
123
……
……
A10
DC IN
DC 3V
C-Audio Specification
Ⅰ
＞ ＞
＜ ＜
Ⅱ
.The unit specifications:
TX / RX specification:
3V DC/200mA
2XAAA Batteries (BATTERIES ARE NOT INCLUDED )
F
7) TX Work frequency: 2.4GHz
8) RX Work frequency: 2.4GHz
9) TX Power:
10dBM
10) RX Sensitivity:-100dBM
11) RX frequency range: 50Hz~13KHz
12) Second harmonic suppression: -40dB
13) Band quantity: 3 channels
Signal-to-Noise Ratio(Amplifier):Subwoofer: 50dB Satellite: 60dB
Frequency Response: 60Hz~15kHz
Distortion: Subwoofer:
4% (F=100Hz) Satellite: 1% (F=1kHz)
Input: DC 12V/2A
.
1) TX Power supply
2) TX Current: 40mA
3) RX Current: 20mA
4) TX Transmission distance: < 65.6 ft / 20 meters (No buildings
or other barriers)
5) Environmental temperature: 14 F~158 / -10 ~70
6) Modulation mode: FSK
0 0 ℃ ℃
＜
