To install the FW-IOB-D-120VAC:

• Remove the appropriate quantity of breaker knockouts from the

breaker bracket.

• Pull the yellow tabs out from each breaker.

• Install the breakers on the din rail to approximately match the

openings in the breaker bracket.

• Hold the breaker bracket loosely against the breakers on the din rail;

move the breakers as needed so they line up with the openings in

the breaker bracket.

• With the breakers positioned properly, lock the yellow tabs to secure

the breakers to the din rail.

• Install the AC Breaker Bypass Slide Plate (see Figure 5)

.

Installing the FW-IOB-D-120VAC

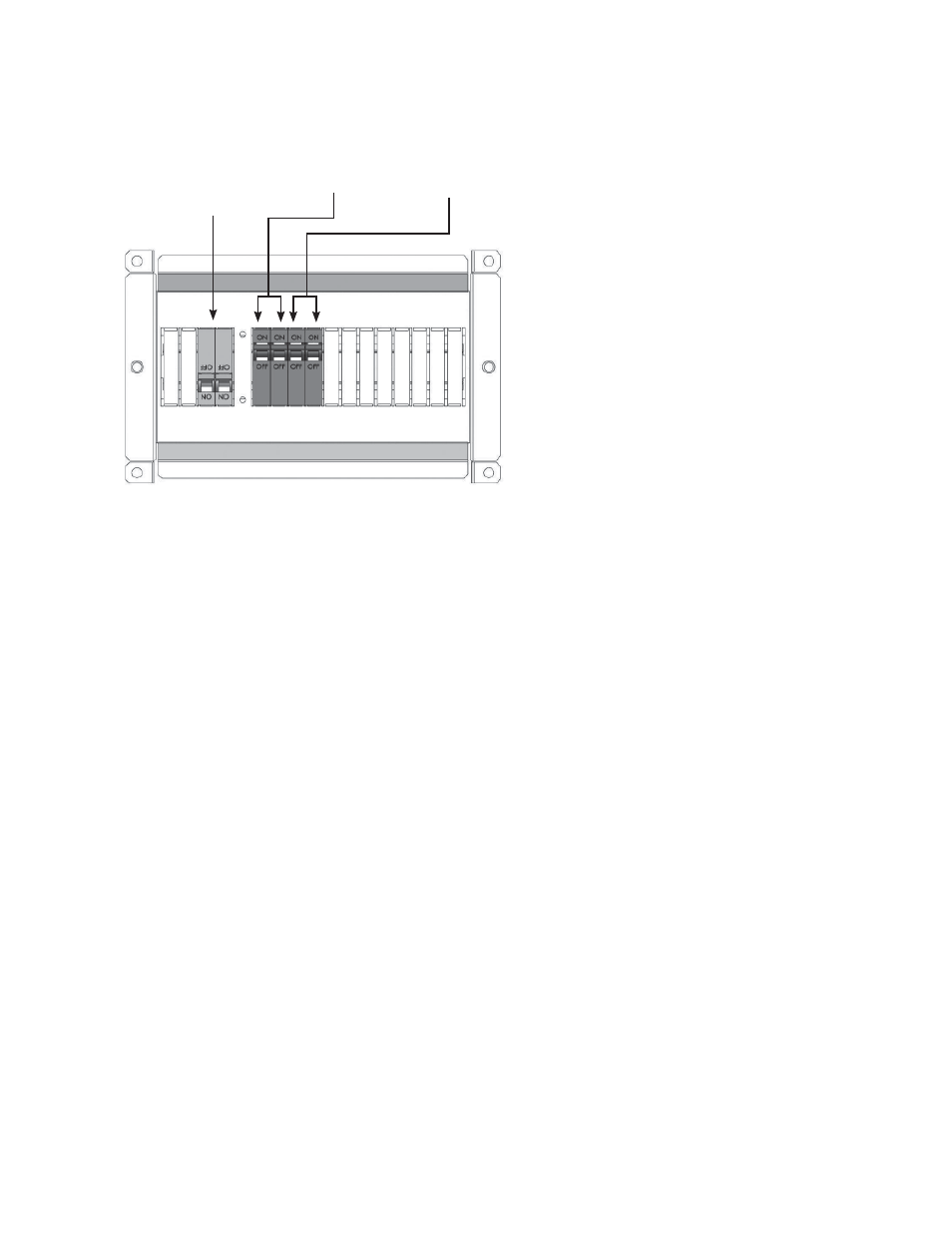

Dual-Pole Bypass Breaker Output Breakers Input Breakers
(installed upside down)

Figure 4: AC Breaker Installation for FW-IOB-D-120VAC

6
