Negative park lights, White ground – Ultra Start 430 Series User Manual
Page 12
87
86
85
87a
30
87
86
85
87a
30
87
86
85
87a
30
87
86
85
87a
30
87
86
85
87a
30

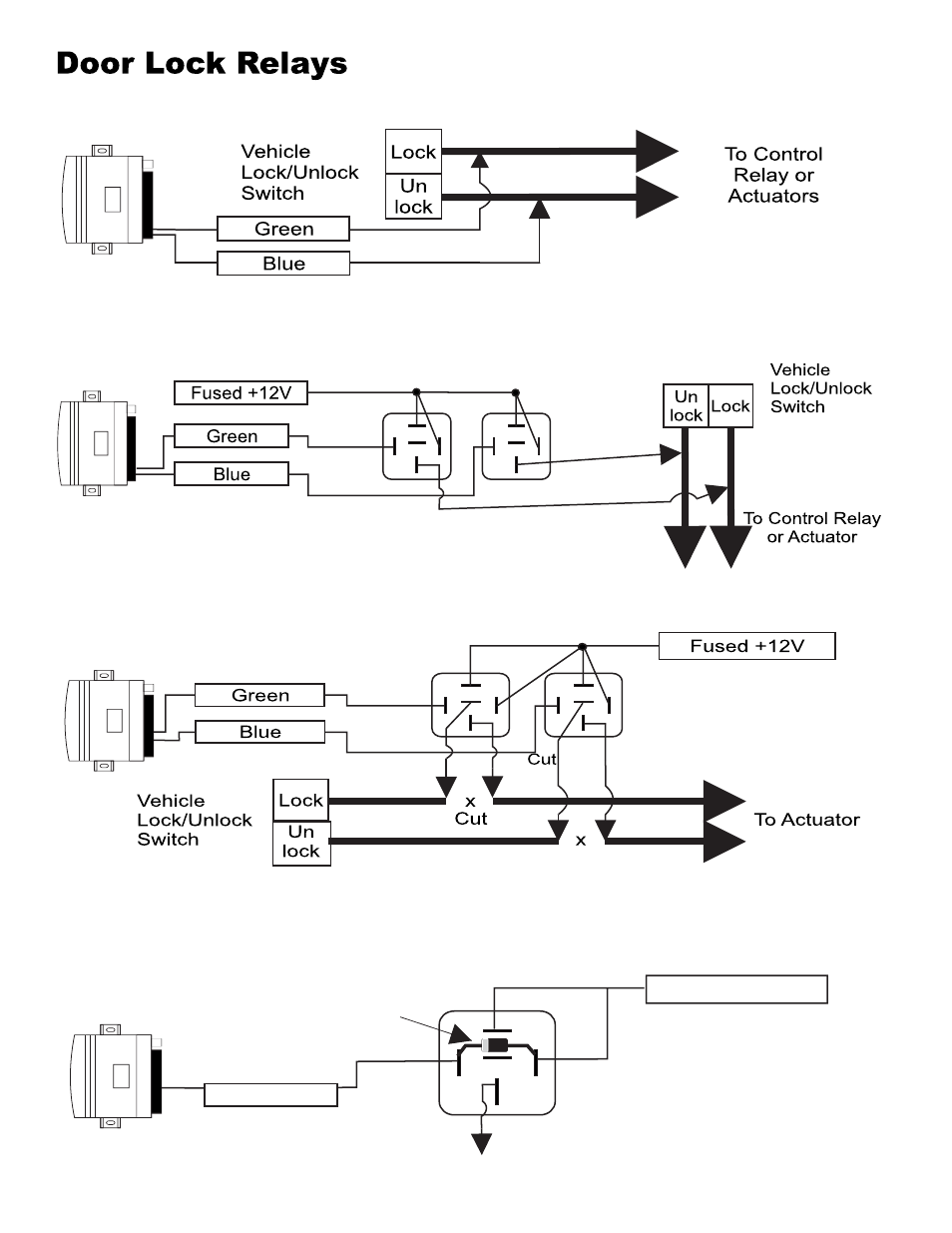

Negative Type Door Locks
Positive Type Door Locks
5 Wire / Reverse Polarity Type Door Locks
Negative Park Lights-
In some cases the park lights may flash erratically after
installing the negative park light relay. To correct this issue add a diode between the coil
pins of the relay as shown.
White
Ground
Negative park light output
Add IN4001 Diode
as shown
