Monoprice 7847 MDSF52 - Manual (Page 3)

Square Spacer
Adapter
Bracket
M4&M5
Screw Hole
M6&M8
Screw Hole
* NOTE:
When attaching the mounting
screws to the display,make sure
the direction of Brackets is correct
and ensure that both brackets
are vertically aligned.
Back
of Display
Mounting
Screw
Bracket
Spacer
Recessed
Hole

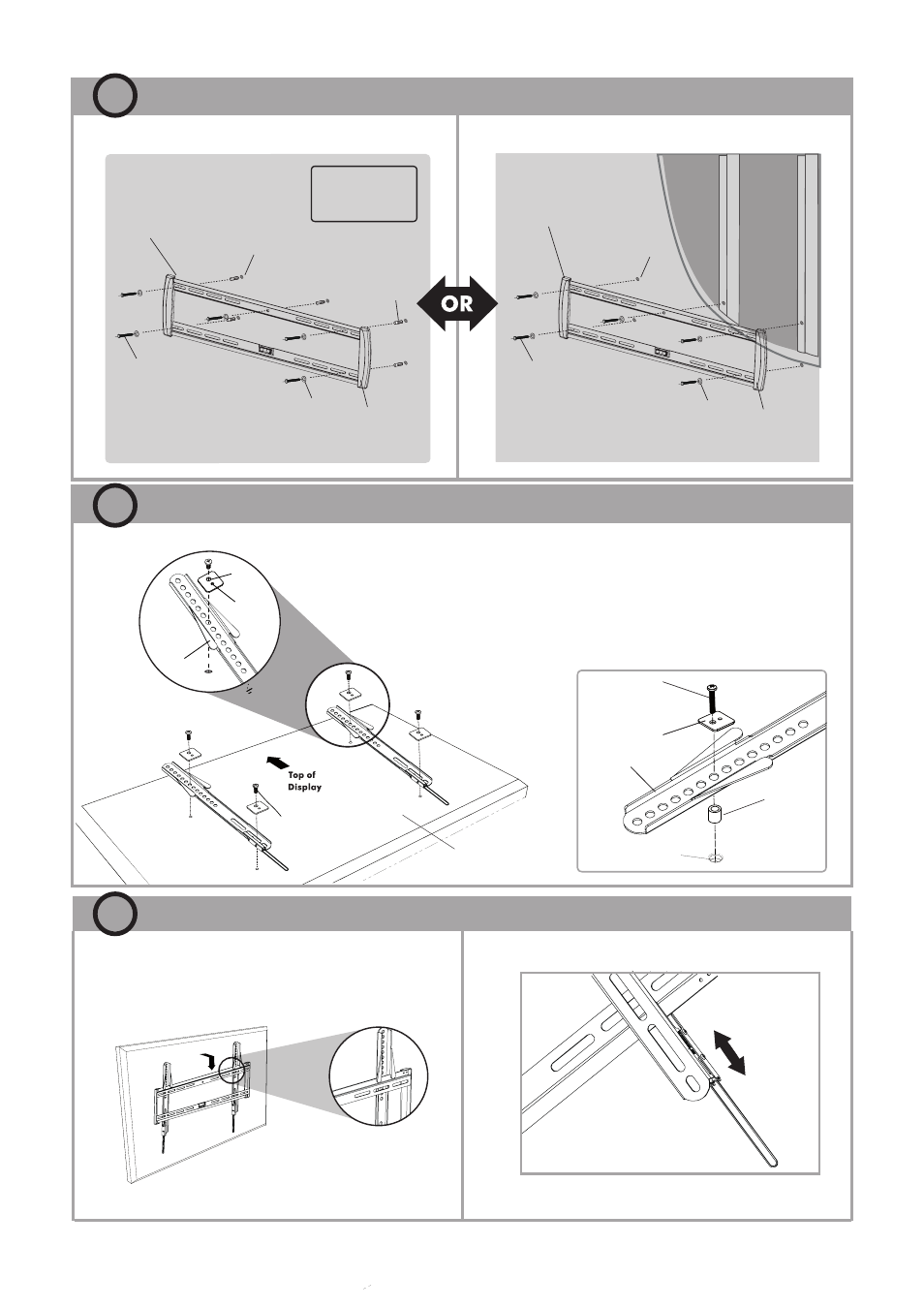

Attaching Display to Wall Plate
Note: This procedure
requires two people
Mounting Wall Plate
Mounting Display Brackets
Masonry Wall
Note:Ensure the wall plate
is mounted with the folded
tabs pointing upwards.
TIP:Use a
level to ensure the
wall plate is leveled
Note:Ensure the wall plate
is mounted with the folded
tabs pointing upwards.
10mm(3/8”)Hole
Concrete Anchor
Washer
Lag Bolt
Wall Plate
Timber Stud Wall
1
2
3
Lock Function
10mm(3/8”)Hole
Washer
Lag Bolt
Wall Plate
