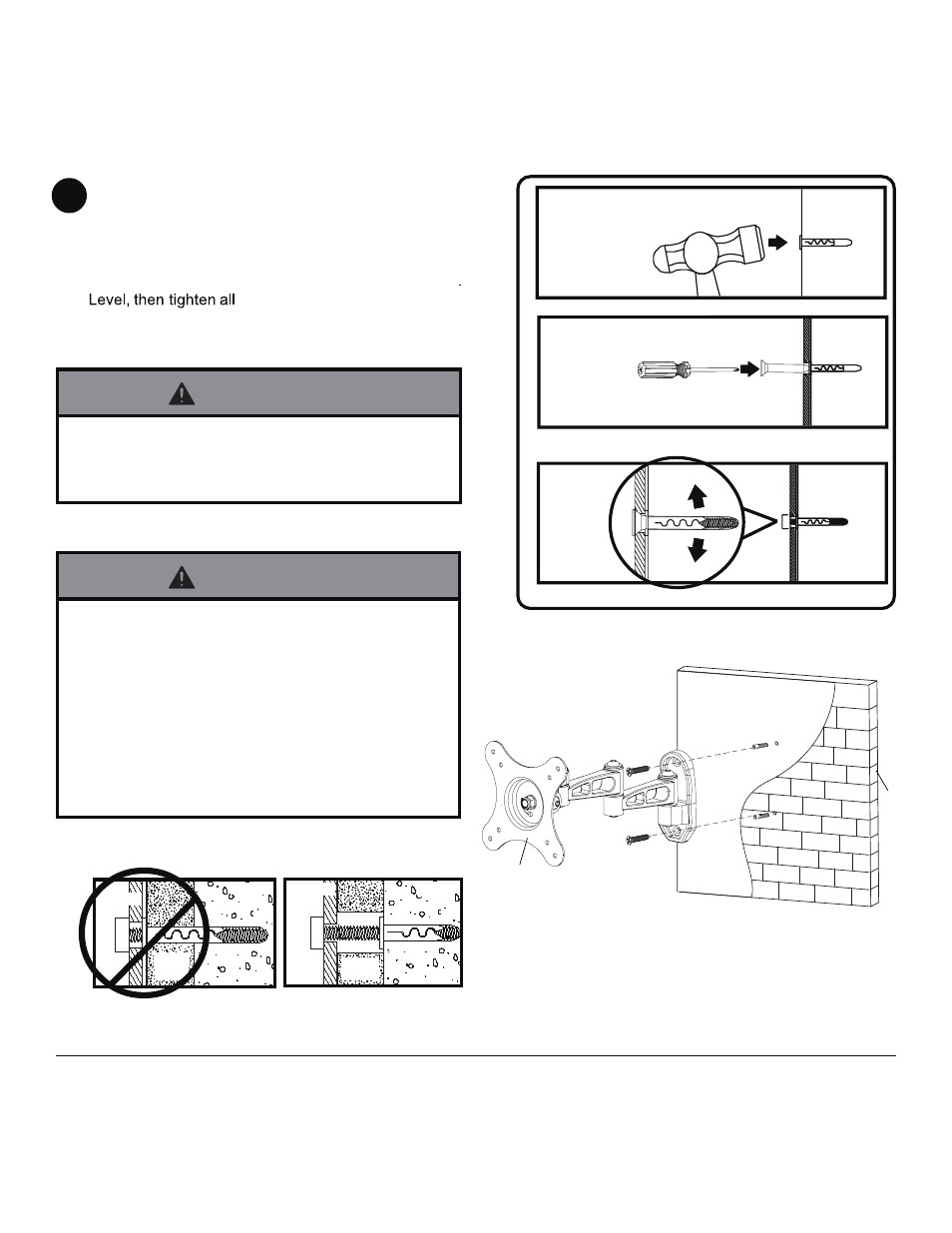

Installation to Solid Concrete or Cinder Block
Use wall plate ( AA) as template to mark mounting
holes.Drill two 1/4" (6 mm) dia. holes 2" (50 mm) deep as
shown in fig. B.1. Insert concerte anchor in holes flush with
wall as shown (right). Place wall plate over anchors and
secure with M6x 60 Cross countersunk head screws
fasteners.
CU
TA
W
AY
V
IE
W
INCORRECT
concrete
surface
1
3
2
Drill holes and insert anchors
CORRECT
Place wall plate over anchors ( D) and secure with screws
Tighten all fasteners.
wall plate
plaster/
dry wall
concrete wall plate concrete
plaster/
dry wall
• Always attach concrete anchors directl to load-
bearing concrete.
• Never attach concrete anchors to concrete covered
with plaster, drywall, or other finishing material. If
mounting to concrete surfaces covered with a finishing
surface is unavoidable, the finishing surface must be
counterbored as shown below. Be sure concrete
anchors do not pull away from concrete when tighten-
ing screws. If plaster/drywall is thicker than 5/8",
custom fasteners must be supplied by installer.
WARNING
WARNING
B
solid concrete
fig. B.1
cinder
block
y
AA
• Tighten hex head bolts so that wall arm assembly
is firmly attached,but do not overtighten. Overtightening
can damage the screws, greatly reducing their holding
power.
