6 5

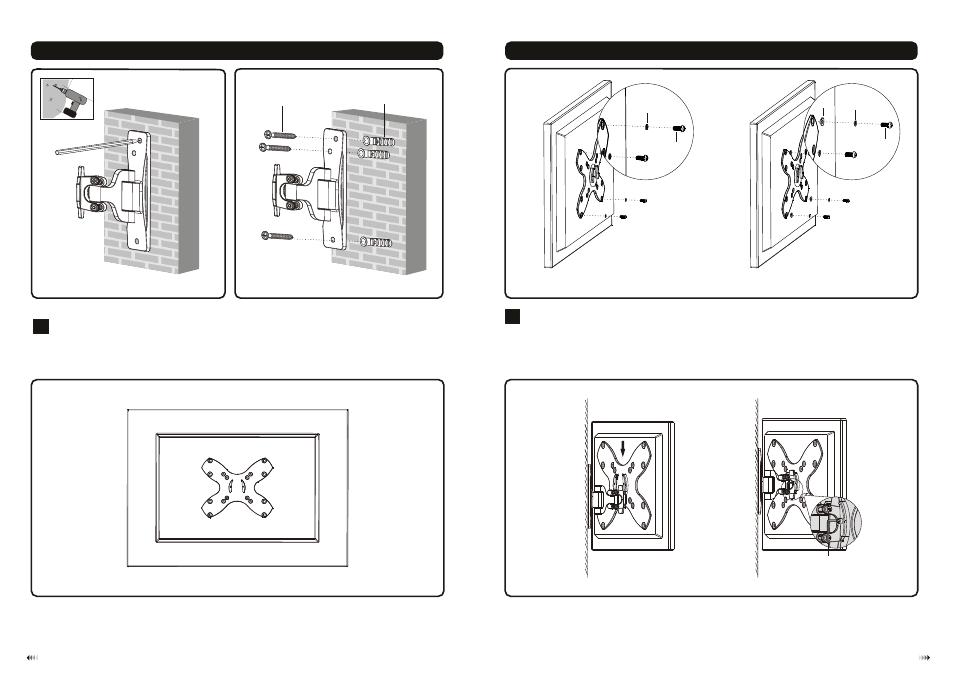

• To prevent scratching the screen, set a cloth on a flat, level surface that will support the weight of the screen.
• Place screen face side down. Place
dapter racket on the back of screen, align to holes, as shown in fig.2
• Attach the adapter bracket to the back of the screen using appropriate combination of washers and screws. as
shown in fig.2.2
the a b .1
2 Installing Adapter Bracket
fig. 3.1
fig. 1.2
W-A W-B
fig. 1.3
fig. 2.2
fig. 2.1
For VESA 75x75 / 100x100 / 200x100 / 200x200mm compliant
M-J
M-C
M-D
M-G
M-H
M-A
M-B
M-E
M-F
M-I
• Place the adapter bracket mounted display onto the plate of articulated arm assembly, as shown in fig 3.1.
• Adjust the display level, and then tighten the safety screws with 3mm allen key(M-J). Do not over tighten!
as shown in fig 3.1.
3 Installing the Display
Important: Make sure the brackets mounted display is correctly mounted and the safety locking screws are
locked safely before loosening the display.
