1-20 Chapter 1: Product Information
13. TV out connector (6-1 pin U46)
This 6-1 pin connector connects to the front panel daughter card with the audio
tv-out port.
12. Infrared Module connector (10-1 pin IR_CON1)
These connectors support an optional wireless transmitting and receiving
infrared module. The module mounts to a small opening on the system chassis
that support this feature. You must also configure the UART2 Use As
parameter in BIOS to set UART2 for use with IR.
Use the ten pins as shown in Back View and connect a ribbon cable from the
module to the motherboard SIR connector according to the pin definitions.

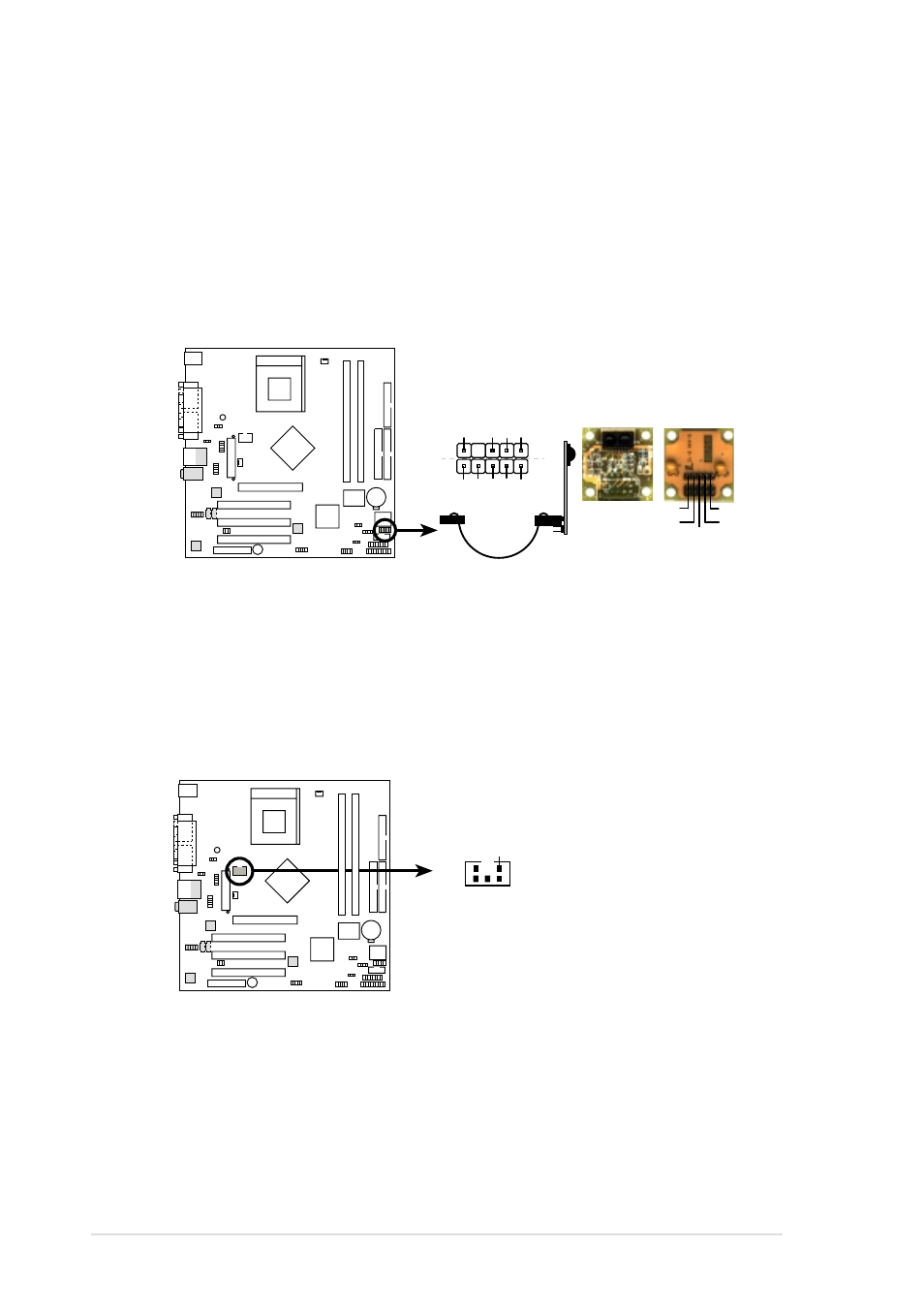

A7N8X-VM
A7N8X-VM Infrared Module Connector
Standard Infrared (SIR)
Front View Back View
+5V IRTX
IRRX
(NC) GND
SIR
+5V IRRX IR
TX
GND
IRAX GND
CIRRX
CIR+5V
CIR
GND
A7N8X-VM TV Out Connector
1
U46
A7N8X-VM
