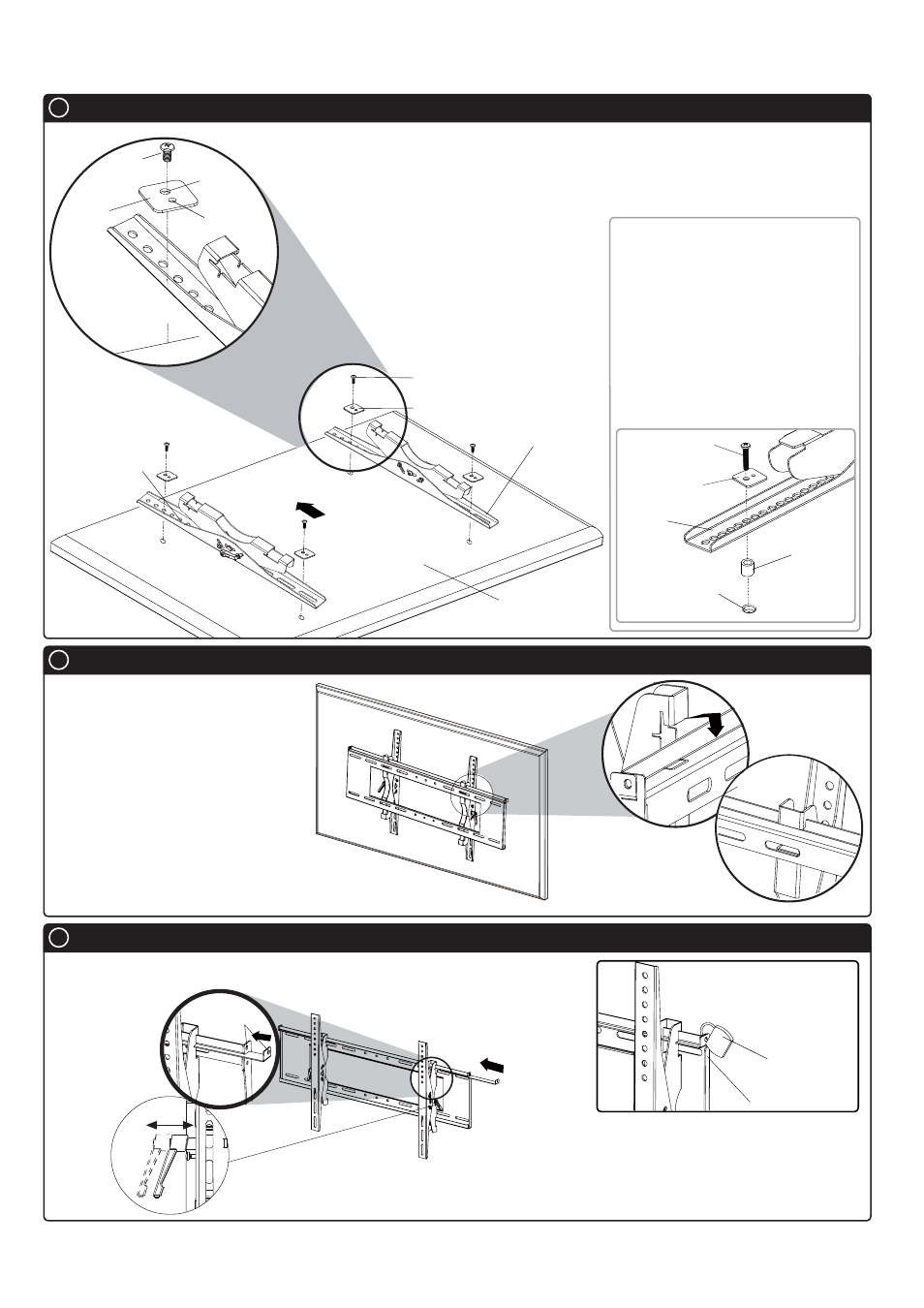

B
Back
of Display
cross pan head screw
cross pan head
screw
square spacer
square spacer
square
spacer
Top of
Display
M6 & M8
Screw Hole
M4 & M5
Screw Hole
cross pan
head screw
CC
BB
Bracket
Spacer
Recessed
Hole
Note: For demonstration purposes, the wall
has been omitted from the above images.
Note: For demonstration purposes, the display
has been omitted from the images below.
For additional security, it is suggested that the left and
right Security Brackets be inserted and a Padlock attached
through each Security Bracket and the Wall Plate as shown.
The two Padlocks (not supplied) should have a shackle
diameter no larger than 5mm ( 3 / 16
").
With the Brackets attached
to the display, lift the
display and hook the
brackets onto the Wall
Plate as shown.
Note: This procedure will
require two persons
D.1.
Tension
knob
Note:The tension knob,
without changing the
bracket tension,can
be pulled out, away
from the bracket
and turned
independently of the
knob post for
readjustment
* NOTE:
When attaching the mounting
screws to the display,make sure the
direction of Brackets is correct
and ensure that both brackets are
vertically aligned .
Recessed Mounting Holes. If the
mounting holes are recessed into
the back of the display, use the
supplied spacers to pack the
recessed hole. If the mounting
screw is M4& M5 & M6,use the
¢12.7x¢6.0x12.7mm Spacers.If the
mounting screw is M8,use the
¢19x¢8.2x19.6mm Spacers. Ensure
that the brackets are securely fixed
to the display.
D.2.
Back plate
Padlock
Padlock
holes
