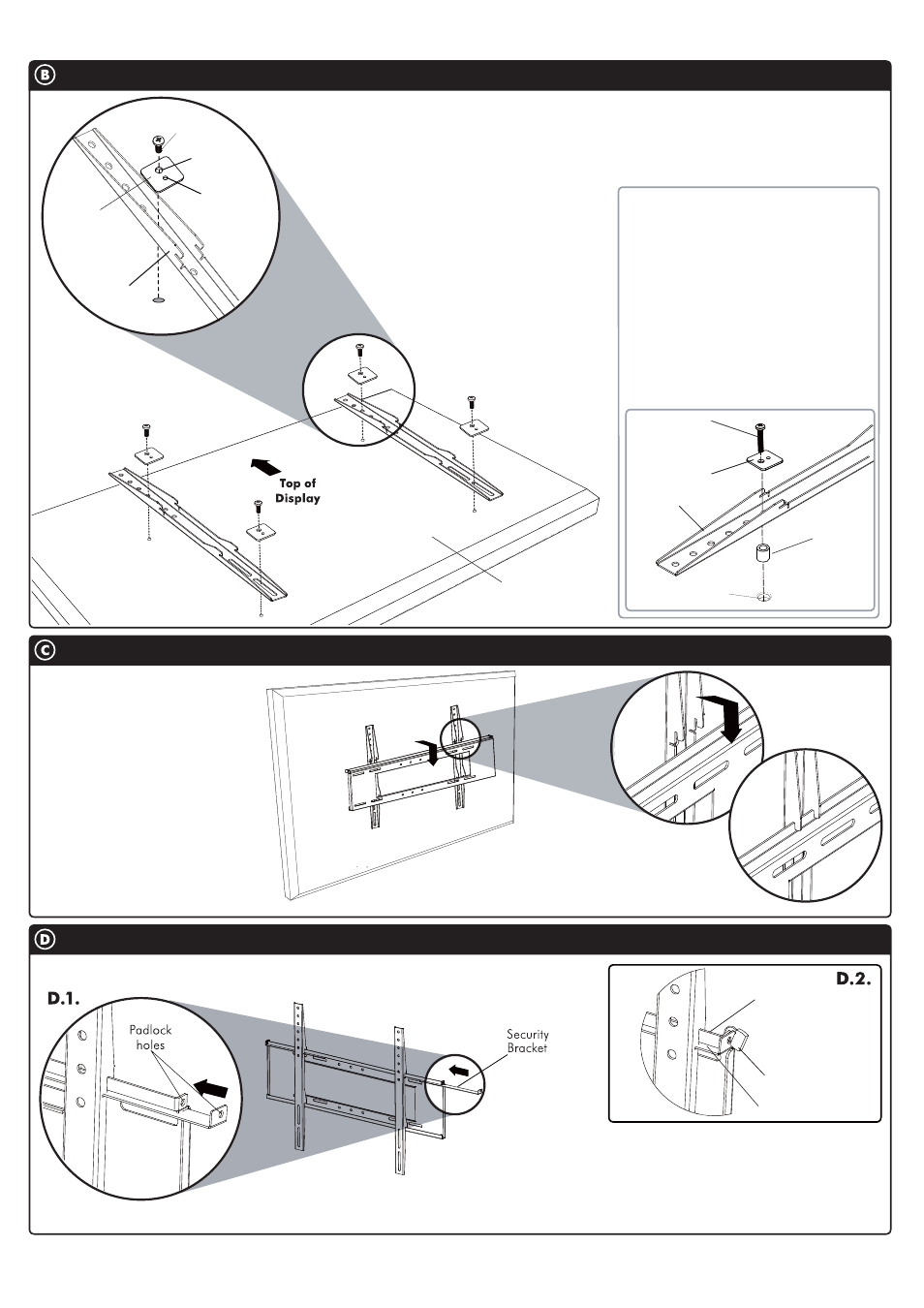

Mounting the Display Brackets
square spacer
square spacer
Adapter
Bracket
Screw hole
M6 & M8
M4 & M5
Screw Hole
Mounting
screw
* NOTE:
When attaching the mounting
screws to the display,make sure
the direction of Brackets is correct
and ensure that both brackets
are vertically aligned.
Recessed Mount ing Holes.
If the mounting holes are recessed
into the back of the display, use the
supplied spacers to pack the recessed
hole. If the mounting screw is M4
& M5 & M6,use the ¢ 1 2.7 x ¢ 6 . 0 x 12 . 7
Spacer.If the mounting screw is M8,use
the ¢19x¢8.0x19.4 Spacer . Ensure
that the brackets are securely fixed to
the display.
Back
of Display
Mounting
screw
Bracket
Spacer
Recessed
Hole
Attaching the display to the wall plate
With the Brackets attached
to the display, lift the
display and hook the
brackets onto the Wall
Plate as shown.
Note: This procedure will
require two persons
Note: For demonstration purposes, the wall
has been omitted from the above images.
Note: For demonstration purposes, the wall
has been omitted from the above images.
Security Option
Security
Bracket
For additional security, it is suggested that the left and
right Security Brackets be inserted and a Padlock attached
through each Security Bracket and the Wall Plate as shown.
The two Padlocks (not supplied) should have a shackle
diameter no larger than 5mm (
3 / 16 ”).
Back plate
Padlock
