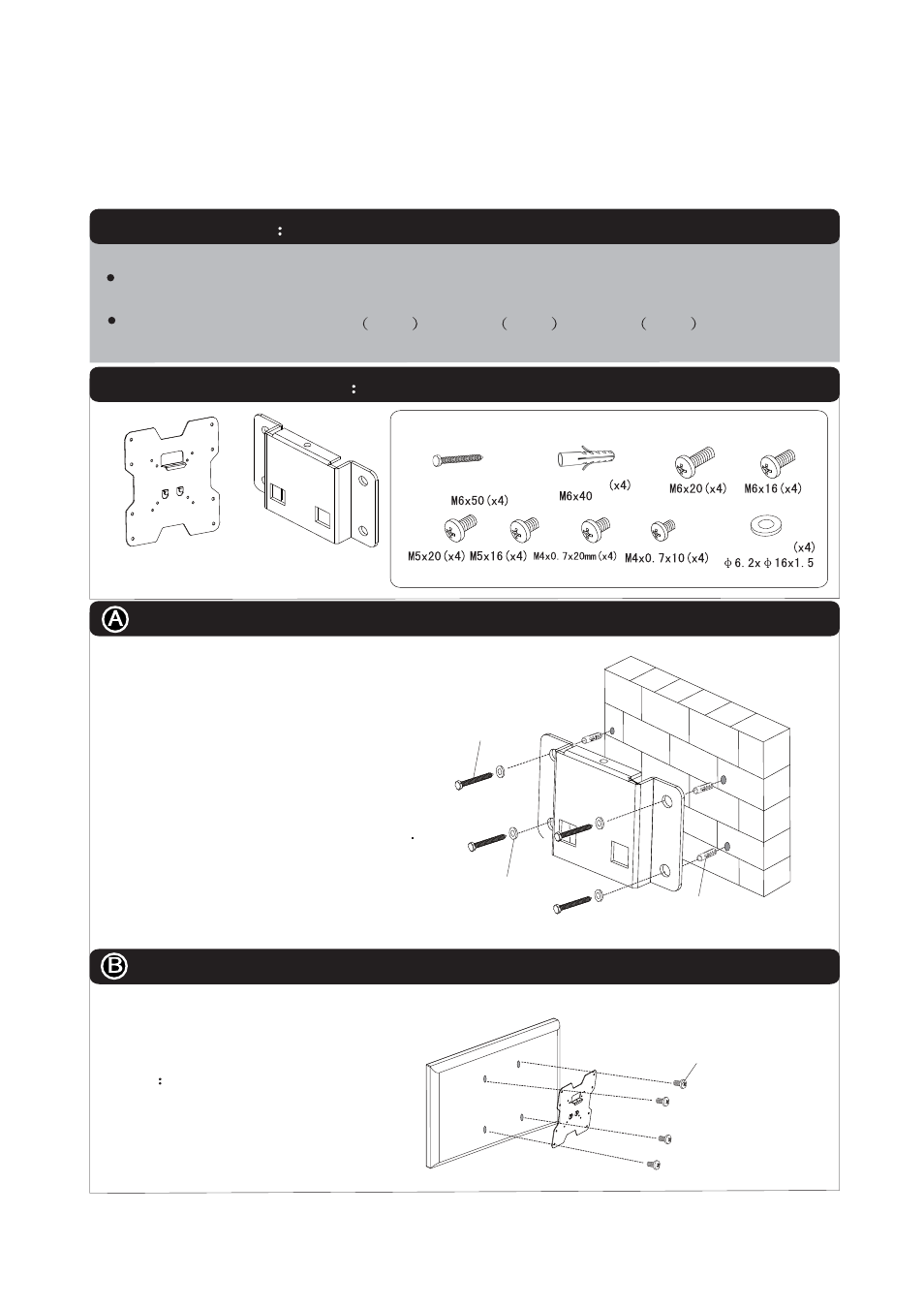

Installation Instructions
Model Name:MHF-37 Universal Wall Mount
Flat panel 24"-37"
Important Note
Component Checklist
Front plate(x1)
panel(x1)
Mounting the wall plate
This bracket supports plasma,LCD displays,the maximum loading capacity
is 80lbs.
VESA: 75x75(3"x3") 100x100 4"x4" 100x200 4"x8" 200x200 8"x8" compatible.
Iron spacer
Hexagonal screw
NOTE: Use a level to ensure
the wall plate is horizontal
Fix the front plate on the display screen
NOTE:Make sure the installation in accordance
with following pictures.
VESA 75x75 / 100x100 / 100x200
/ 200x200
Cross pan head screw
Parts List
concrete anchor
concrete anchor
Outer hexagonal
screws
Cross pan head screw
Cross pan head screw
Iron spacer
A
A
D
E
F
G
H
B
C
