Acura Music Link BII32604-34945 RDX - Manual (Page 5)

© 2007 American Honda Motor Co., Inc. - All Rights Reserved. BII 32604-34945 (0703)
5 of 6

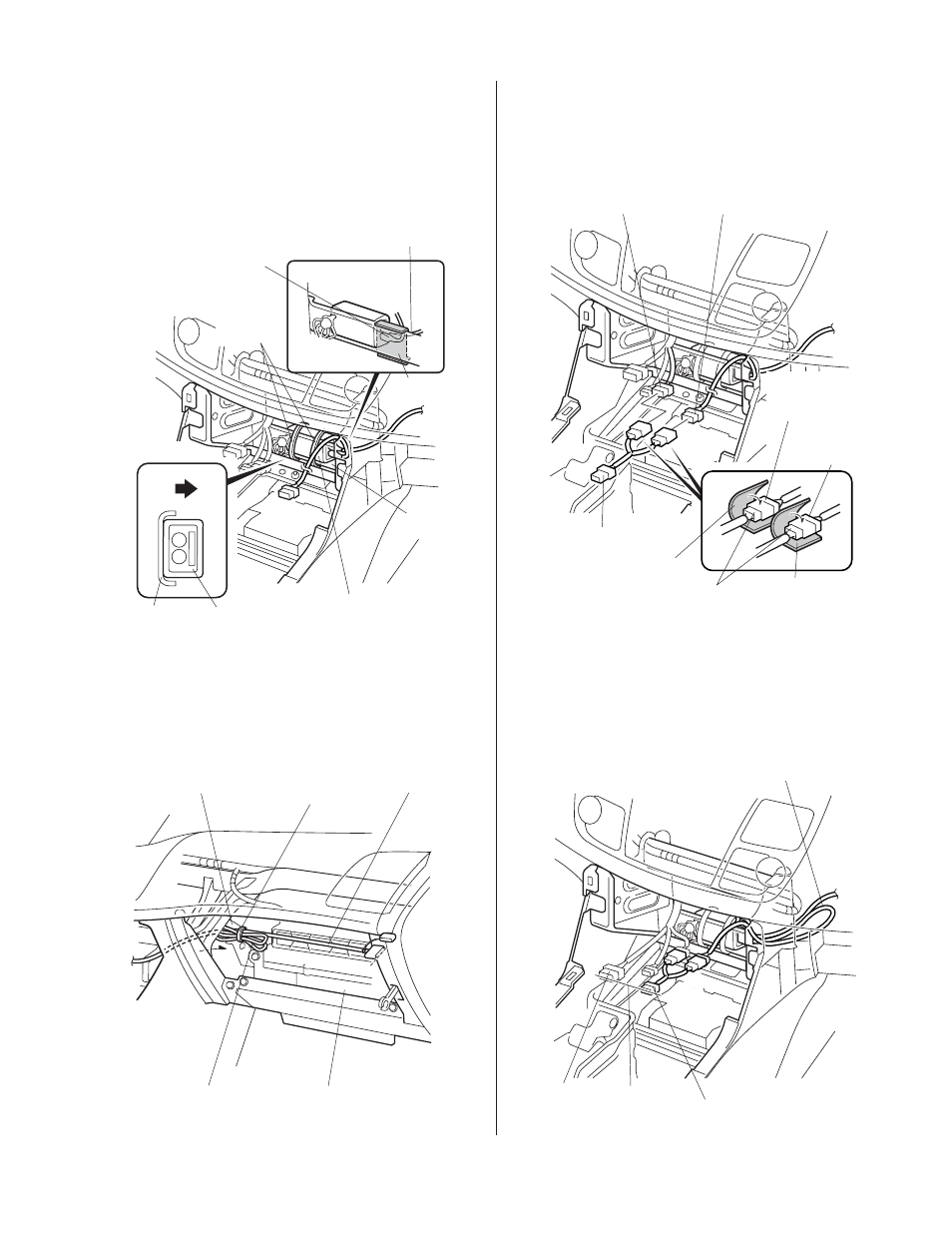

14. Apply a cushion tape around the bus cable DIN
connector (black) and Music Link harness DIN
connector (white). Secure the Music Link unit to
the front side of the vehicle frame using two long
wire ties. If the Music Link unit is not in front of
the frame there will not be clearance for the
radio.
16. Get the Y-harness adapter cable. Connect one
end of the bus cable 14-pin connector to the
Music Link, and the other vehicle 14-pin
connector to the Y-harness adapter connector.
17. Wrap the two connectors with two cushion tapes.
18. Adjust the length of the Y-harness adapter 14-pin
connector to the same length of the radio
connector so it aligns with the vehicle 17-pin
connector.
15. Align the Music Link connector with the right
side of the glove box opening. Bundle up the
Music Link harness and secure it to the vehicle
harness with one wire tie.
6205043B
MUSIC LINK
UNIT
MUSIC LINK
UNIT
VEHICLE
FRAME
FRONT
VEHICLE
FRAME
SIDE VIEW
CUSHION
TAPE
LONG
WIRE TIES
MUSIC LINK HARNESS
DIN CONNECTOR (white)
BUS CABLE DIN
CONNECTOR (black)
6205011B
MUSIC LINK
HARNESS
WIRE TIE
VEHICLE
HARNESS
GLOVE BOX
OPENING Bundle the
excess.
6205052B
Y-HARNESS
ADAPTER
BUS CABLE
14-PIN
CONNECTOR
VEHICLE 14-PIN
CONNECTOR
VEHICLE
14-PIN
CONNECTOR
BUS CABLE
14-PIN
CONNECTOR
CUSHION
TAPE
CUSHION
TAPE
Y-HARNESS
ADAPTER
CONNECTOR
6205062B
VEHICLE
17-PIN
CONNECTOR Align.
Y-HARNESS
ADAPTER
BUS CABLE
(Bundle the excess.)
