6.

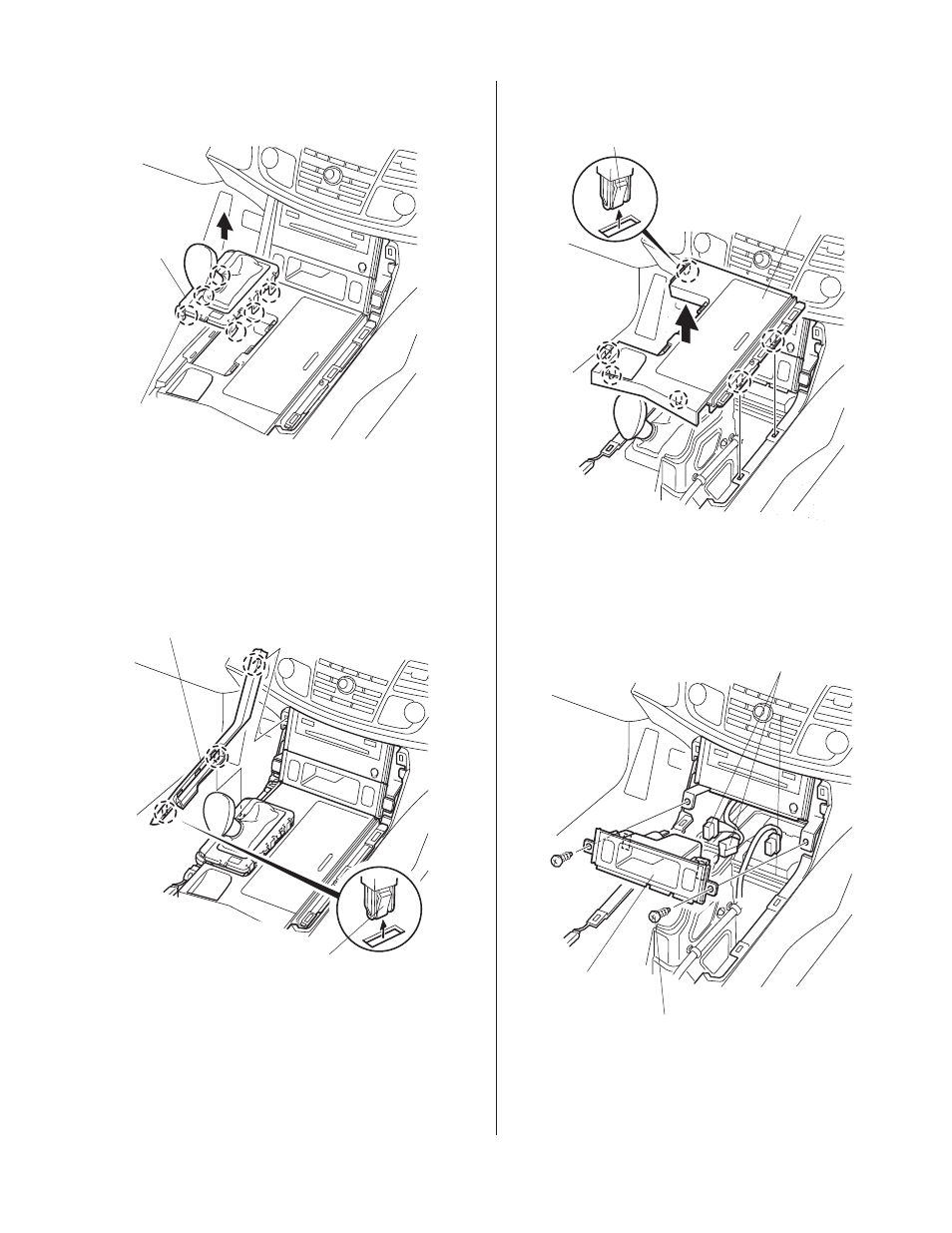

Lift up the shift lever trim (six retaining tabs).
7.
Remove the left center console side trim (three
clips).
8.
Open the center console, then remove the
beverage holder (six clips).
9.
Remove the pocket (two self-tapping screws) and
three vehicle connectors.
6204081B
SELF-TAPPING
SCREWS (2)
VEHICLE CONNECTORS
6204061B
LEFT CENTER
CONSOLE SIDE
TRIM
CLIPS (3)
6204071B
CLIPS (6)
BEVERAGE HOLDER
6204050B
SHIFT
LEVER
TRIM
RETAINING
TABS (6)
