-3- Form No.128-5091A

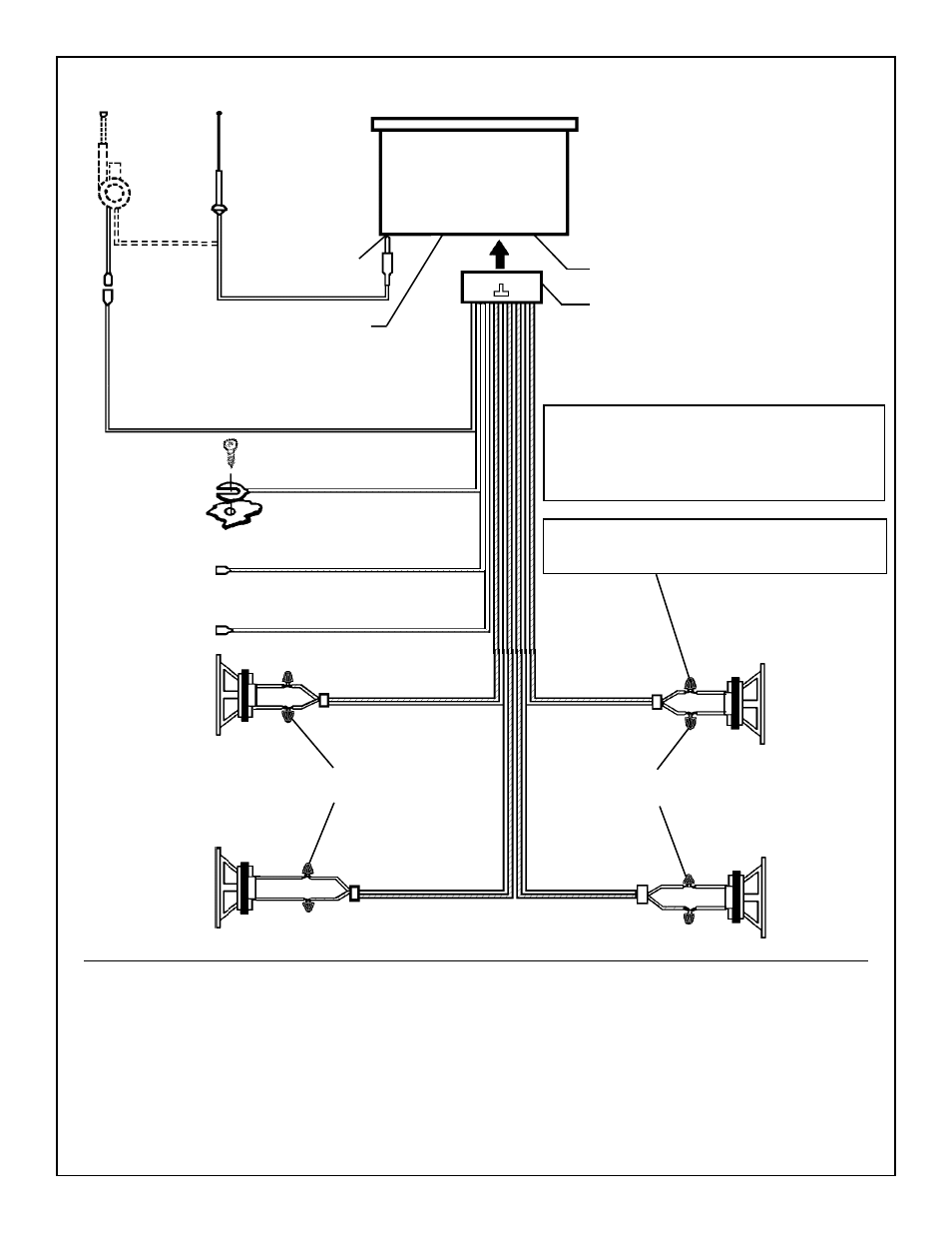

WIRING DIAGRAM POWER
ANTENNA
MAST
ANTENNA
RADIO
ANTENNA SOCKET
ON REAR OF RADIO
BLUE (POWER ANTENNA LEAD)
BLACK (GROUND)
TO GROUNDED
METAL PART OF CAR
(REMOVE ANY PAINT)
TO CONSTANT
+12 VOLT SOURCE
TO SWITCHED
+12 VOLT SOURCE
RIGHT FRONT
SPEAKER
4 - 8 OHMS
USE WIRE NUTS OR SOLDER
AND TAPE ALL SPLICES
CAUTION:NEGATIVEWIRES(-)MUSTCONNECTAS
SHOWN. NEVER GROUND THE NEGATIVE WIRES
FROM SPEAKERS TO METAL PART OF CAR.
RIGHT REAR
SPEAKER
4 - 8 OHMS
LEFT FRONT
SPEAKER
4 - 8 OHMS
LEFT REAR
SPEAKER
4 - 8 OHMS
THE AMPLIFIERS IN THIS RADIO ARE ONLY DESIGNED FOR USE WITH 4 SPEAKERS.
NEVER COMBINE (BRIDGE) OUTPUTS FOR USE WITH 2 SPEAKERS.
NEVER GROUND NEGATIVE SPEAKER LEADS TO CHASSIS GROUND.
FAILURE TO WIRE CORRECTLY MAY CAUSE DAMAGE TO THE RADIO.
MATING 16-PIN SOCKET
BLUE WIRE CAN BE USED TO REMOTELY
ACTIVATE AN AUTOMATIC POWER ANTENNA
ORTURNONANOPTIONALEXTERNALAMPLIFIER.
REFERTOANTENNAORAMPLIFIERINSTALLATION
INSTRUCTIONS.
16-PIN PLUG
RED (ACC. +12V.)
4 SPEAKER
SYSTEMS
YELLOW (BATTERY +12V.)
LOW-LEVEL RCA OUTPUTS
CONNECT TO OPTIONAL
EXTERNAL AMPLIFIER(S)
RED = RIGHT CHANNEL (REAR)
WHITE = LEFT CHANNEL (REAR)
CAUTION !
GREEN w/BLACK
STRIPE
GREEN
-
+
-
+
WHITE
WHITE w/BLACK
STRIPE
GRAY
-
+
VIOLET w/BLACK
STRIPE
VIOLET
GRAY w/BLACK
STRIPE
+
-
USE WIRE NUTS OR SOLDER
AND TAPE ALL SPLICES
