PERFORATED STRAP
FASTEN THIS END TO
SCREW STUD ON
REAR OF CHASSIS
NUT (5MM)
SCREW (5MM)
SCREW STUD
RADIO
NUT (5MM)
FASTEN THIS END TO SECURE PART OF DASHBOARD.
DRILL HOLE IF NECESSARY.
MOUNTING SLEEVE
-2-
BEND BOTTOM TABS
DOWNWARD

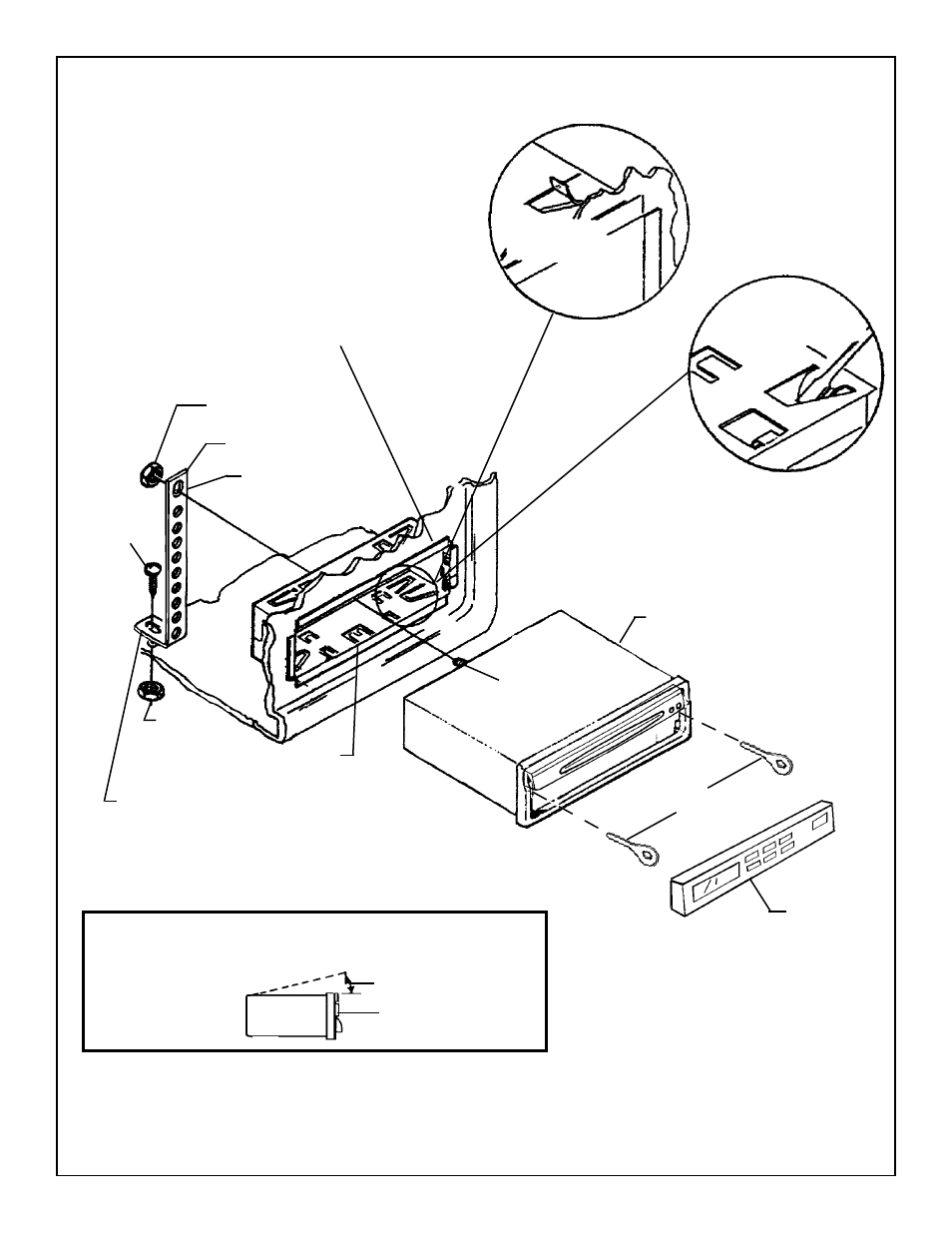

UNIVERSAL INSTALLATION USING MOUNTING SLEEVE
BEND TOP
TABS UPWARD
Form No.128-5091A
REMOVAL TOOLS
DETACHABLE
FRONT PANEL
CAUTION:
FOR PROPER OPERATION OF THE CD PLAYER, THE CHASSIS MUST BE
MOUNTED WITHIN 20° OF HORIZONTAL. MAKE SURE THE UNIT IS MOUNTED
WITHIN THIS LIMITATION.
SIDE VIEW
OF
CHASSIS
20° MAX.
FRONT PANEL
EXISTING DASH OPENING
FILE EDGES TO FIT IF NECESSARY - DO NOT OVERFILE
NOTE: IF DASH IS SOLID, USE REAR SIDE (WITHOUT THE LIP)
OF MOUNTING SLEEVE AS A TEMPLATE & CUT OPENING
