BASIC OPERATIONS (CONT)

10.

PITCH BEND:

This function will momentarily increase or decrease a tracks playback speed. There are two ways to operate
this function with the (-) & (+) PITCH BUTTONS (7 & 8) or with the JOG WHEEL (17). The maximum pitch bend
percentage allowed is +/- 16%. The pitch bend function will work in conjunction with the PITCH SLIDER (5)
pitch setting.

PITCH BEND BUTTONS (7 & 8):

The (+) PITCH BEND BUTTON (8) will provide a speed bump and the (-) PITCH BEND BUTTON (7) will provide
a slow down. The maximum range of the PITCH BEND BUTTONS is 16%. The extent to which the speed
changes is proportionate to the amount of time the button is pressed. For example, if the (+) PITCH BEND
BUTTON (8) is held down continuously, the disc speed will increases and will continue to increase until reaches
a maximum of 100% speed gain. When you release the (+) PITCH BEND BUTTON (8) the disc speed will auto-
matic

ally return to

it’s previous speed.

Holding down or tapping on the (-)
PITCH BEND BUTTON (7) will pro-
vide a slow down in the playback
pitch.

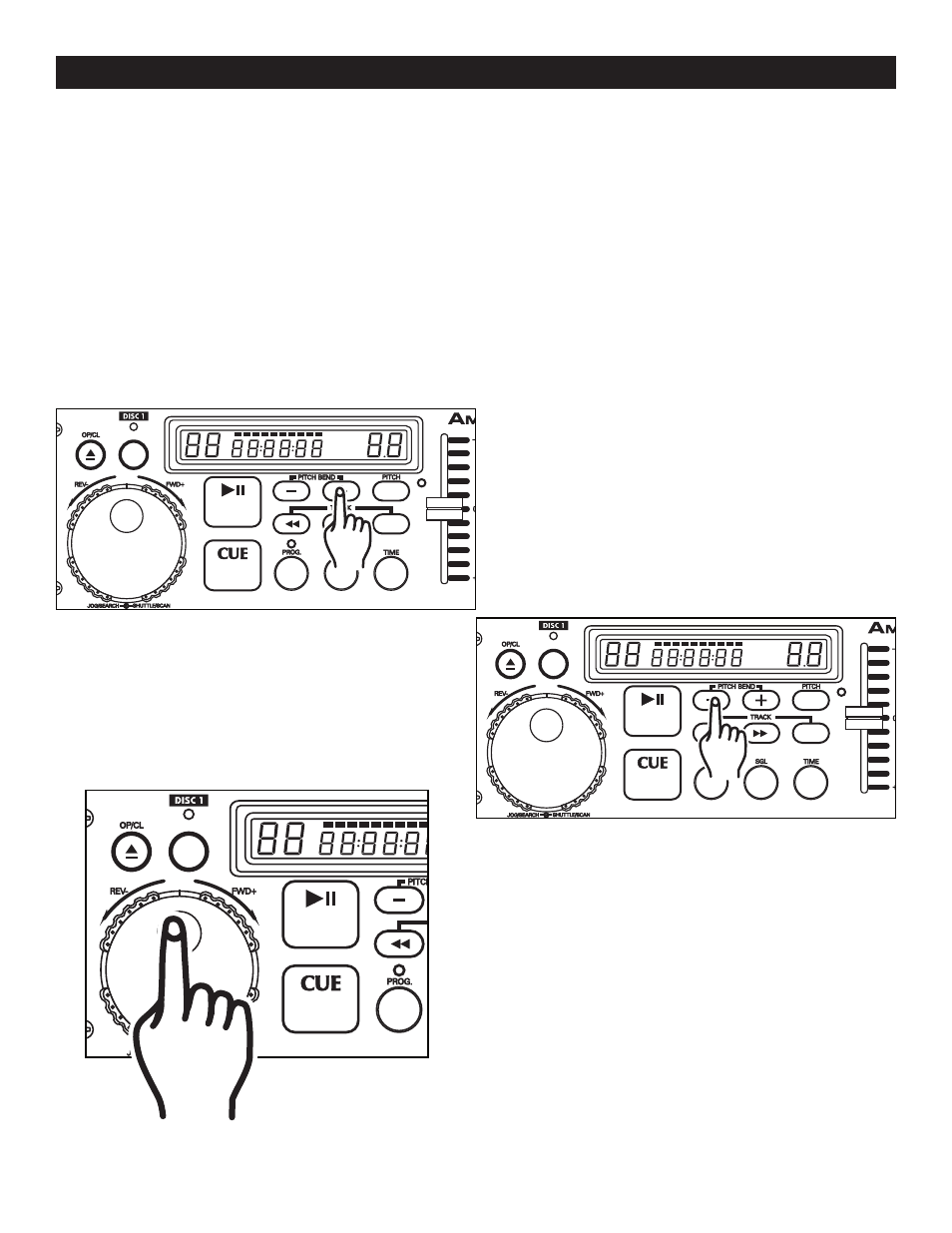

Figure 13

Figure 14

JOG WHEEL (17):

The JOG WHEEL (17) will temporarily bend the pitch
if a track is in play mode Rotating the wheel in a
clockwise direction will increase your track pitch and
rotating the wheel in a counter-clockwise direction
will slow your track pitch. The speed you rotate the
JOG WHEEL (17) will determine pitch bend percent-
age (%).

Figure 12
