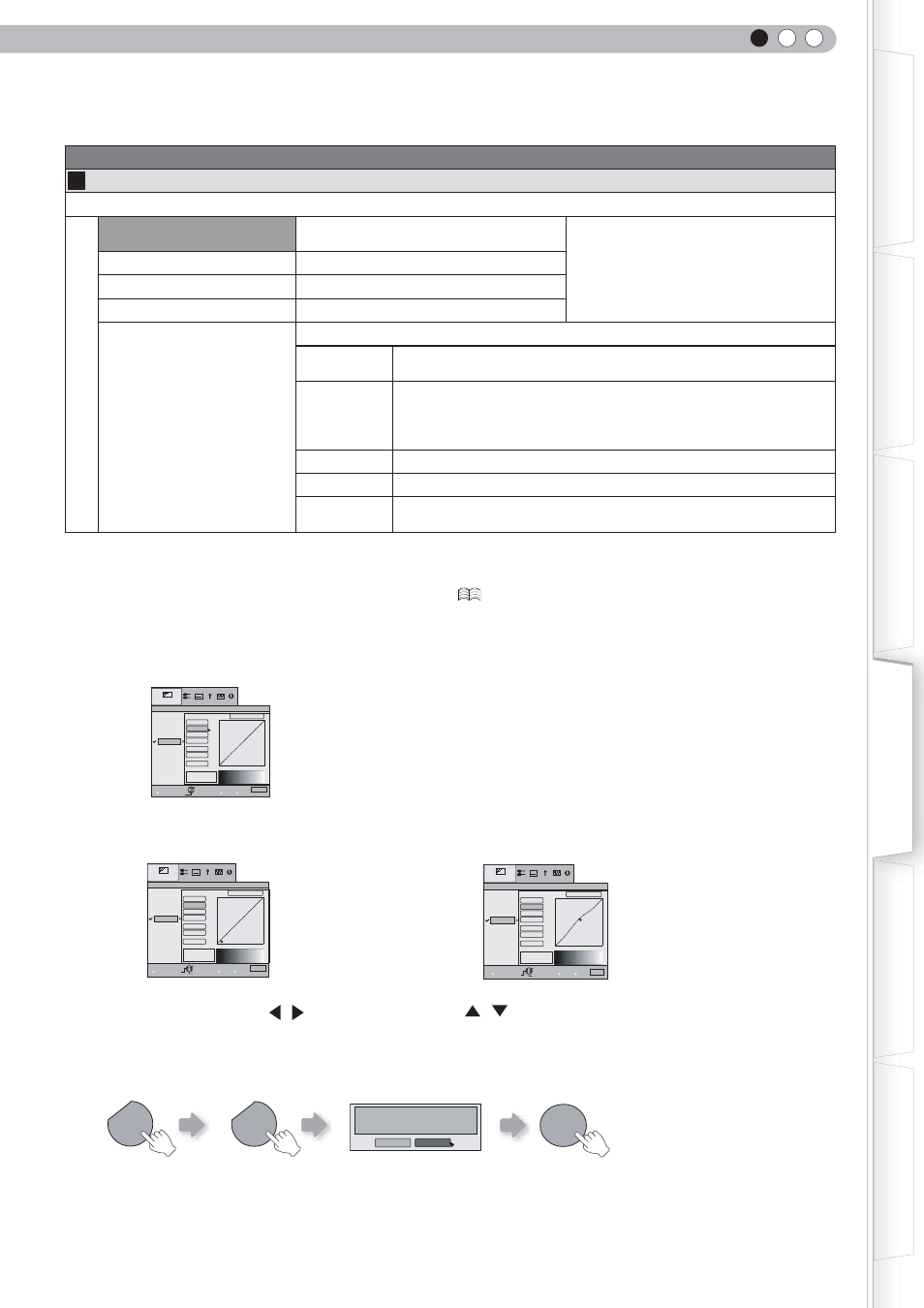

Picture Adjust > Gamma
07 Gamma
Sets the gradation characteristics of the projected image. (Cannot set when the Picture Mode” in THX .)
Normal
For normal circumstances, select this
setting.
Gamma adjustment cannot be performed,
and only copy is valid. A Set gamma to A .
B Set gamma to B .
C Set gamma to C .
Custom 1
Custom 2
Custom 3
(Gamma Setup)
Three different kinds of gamma can be set according to your preferences.
Correction
Value
The coeffi cient (1.8 to 2.6) of the gamma curve can be selected.
Gamma
Adjustment*
The gamma curve for the colors (Red, Green, Blue) can be adjusted
separately.
Adjusting White will adjust for all Red, Green, Blue values. The
gamma curve displays the value for Green .
Copy Copy the adjusted gamma data.
Paste Paste the copied gamma data.
Reset
Return the gamma coefficients to the values 2.2 set by Correction
Value .
●
Normal is suitable for normal circumstances but other settings can be selected according to your preferences.
●
This setting can also be confi gured from the remote control. ( P16)
* Gamma Adjustment
① Select the reference gamma curve coeffi cient (1.8 ～ 2.6) in Correction Value .
② Select the color to be adjusted in the gamma adjustment screen.
③
Adjust the gamma curve in the gamma curve adjustment screen.
④
To end
●
If gamma curve is adjusted repeatedly, calculation errors will be accumulated and the gamma curve may not be able to
revert back to its original form. In that case, select Reset”.
1023
512
50 100(%)
A
B
C
0
2.2
Gamma
Correction Value
White
Red
Geen
Blue
Copy
Paste
Reset
Normal
Costom1
Costom2
Costom3
Picture Adjust
Exit
MENU BACK
Back
Select
Operate
TEST
Check Before
1023
512
50 100(%)
A
B
C
0
2.2
Gamma
Correction Value
White
Red
Geen
Blue
Copy
Paste
Reset
Normal
Costom1
Costom2
Costom3
Picture Adjust
Input: 10%
Output:100
Exit
MENU BACK
Back
Select Operate TEST
Check Before Back
1023
512
50 100(%)
A
B
C
0
2.2
Gamma
Correction Value
White
Red
Geen
Blue
Copy
Paste
Reset
Normal
Costom1
Costom2
Costom3
Picture Adjust
Input: 50%
Output: 580
Exit
MENU BACK
Back
Select Operate TEST
Check Back After
Select the point where the gradation (brightness)
is to be adjusted with the / buttons. Adjust the gradation (brightness) with
the / buttons.
BACK BACK OK
Yes No
Save gamma data?
●
You can switch between Before and After using the [TEST] button of the remote control.
