Page 5

5
ASSEMBLY INSTRUCTIONS

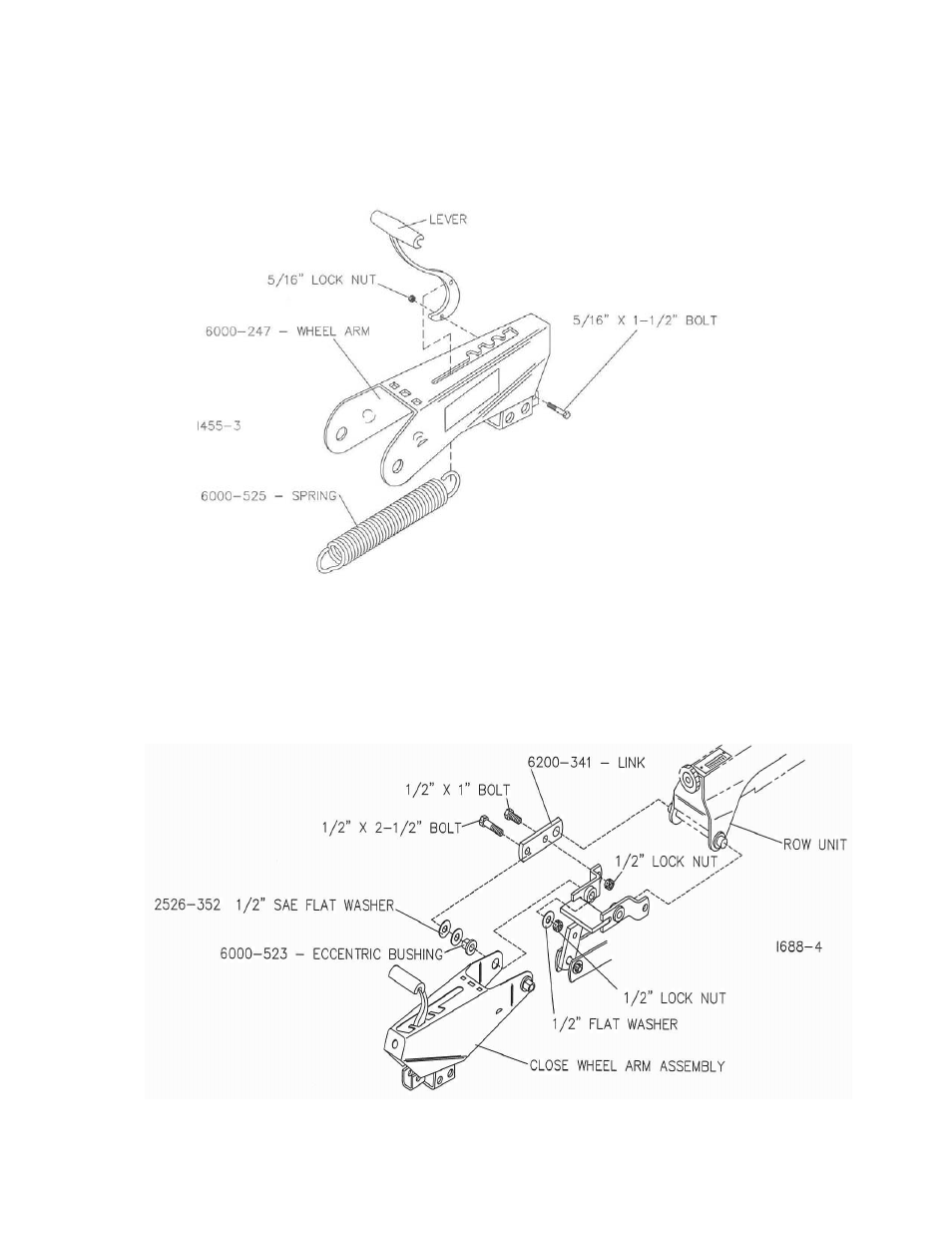

STEP 4. Insert the 6000-524 – close wheel lever into the 6000-247 close
wheel arm, install the spring onto the close wheel lever and attach the
close wheel lever to the wheel arm using a 5/16” x 1-1/2” bolt and lock nut.
STEP 5. First, hook the spring onto the 6200-202 – close wheel mount
then attach the close wheel arm assembly to the left hand side of the
6200-202 close wheel mount and the row unit using the ½” x 1” bolt, 6200-
341 – link and lock nut. Insert the 6000-523 – eccentric bushing into the
close wheel arm and connect the close wheel arm to the 6200-341 - link
and 6200-202 – wheel mount using a ½” x 2-1/2” bolt, ½” flat washer and
lock nut.
