INSTALLATION INSTRUCTIONS

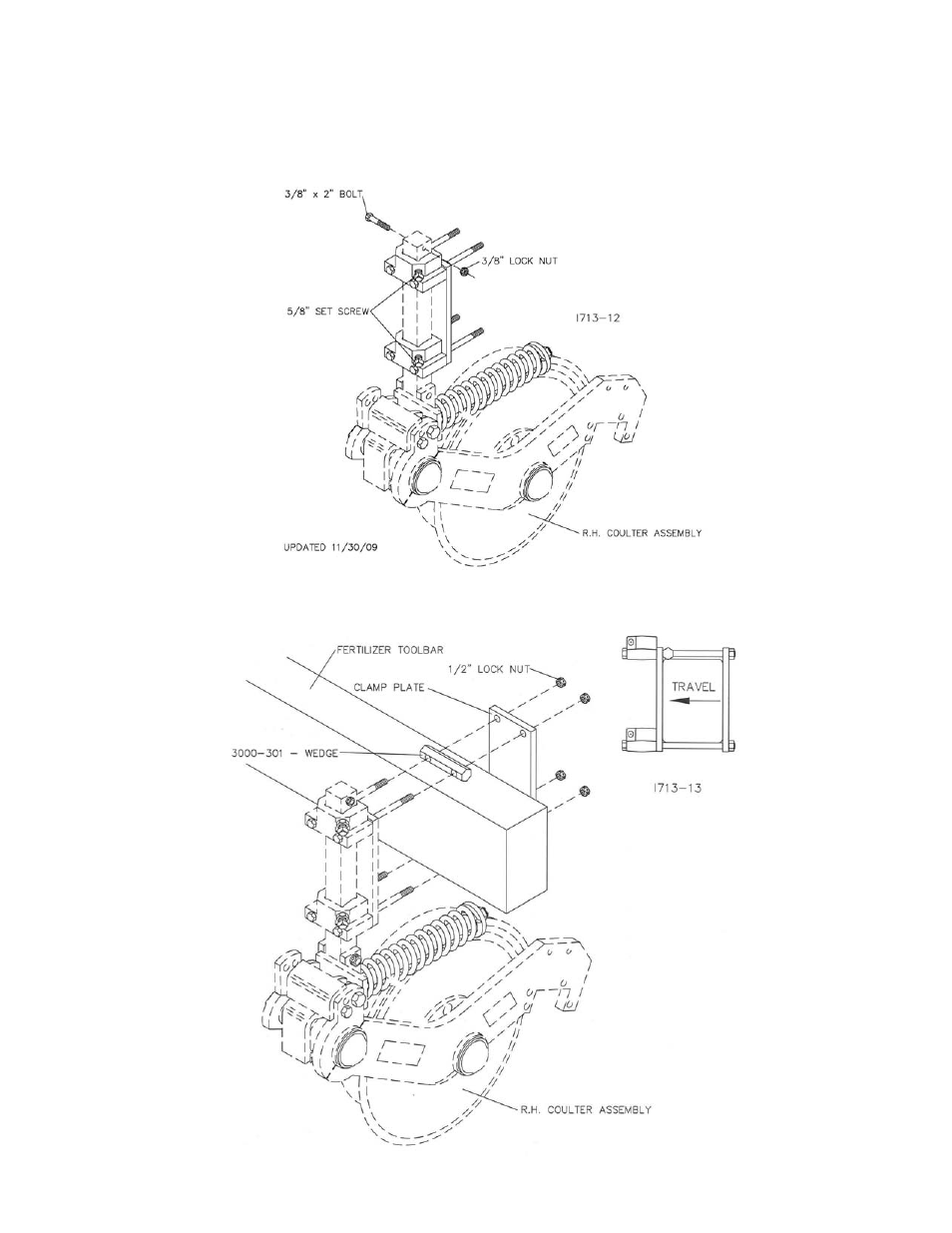

STEP 3. Install the clamp assembly onto the shank; slightly tighten a 5/8” set screw to
temporarily hold the clamp to the shank. Insert the 3/8” x 2” bolt through the top hole of
the shank; secure it with the 3/8” lock nut.

STEP 4. Attach the coulter/shank/clamp assembly to the fertilizer toolbar using the 3000-
301 wedge, clamp plate and ½” lock nuts.
