Operation field adjustment – Yetter 3000 Series Viper II Fertilizer Coulter User Manual
Page 12
12
OPERATION
FIELD ADJUSTMENT

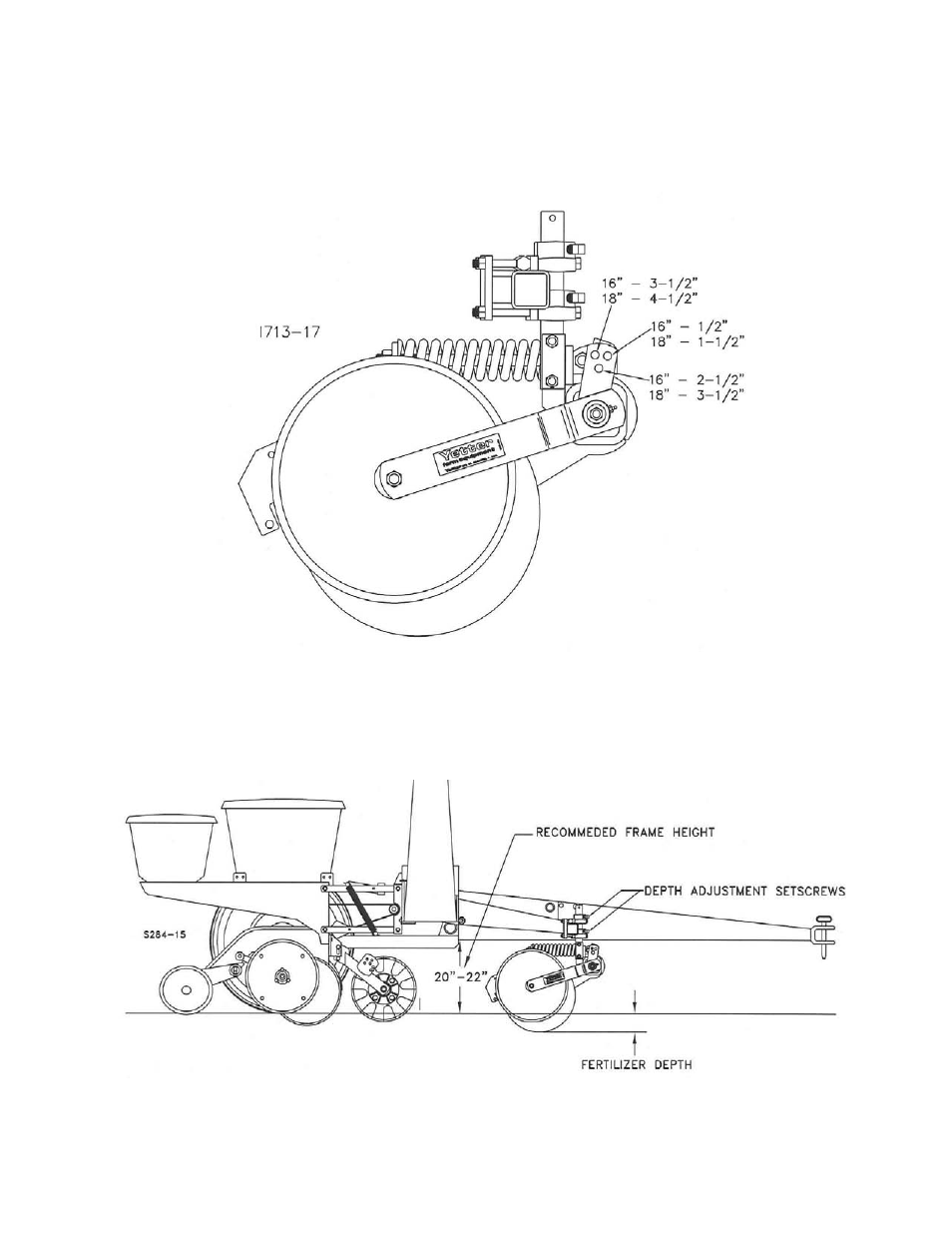

STEP 2. Adjust the gauge wheel to the desired depth.
SETTING THE DEPTH
STEP 3. Raise or lower the coulter assembly/shank at the toolbar clamp as needed to
achieve the desired depth. After setting the depth – triple tighten the setscrews onto the
shank. Torque to 100 ft. lbs.
