Assembly instructions – Yetter 2984 High Residue Maverick Opener User Manual
Page 18
18
ASSEMBLY INSTRUCTIONS
2984-018 – SEALING WHEEL KIT

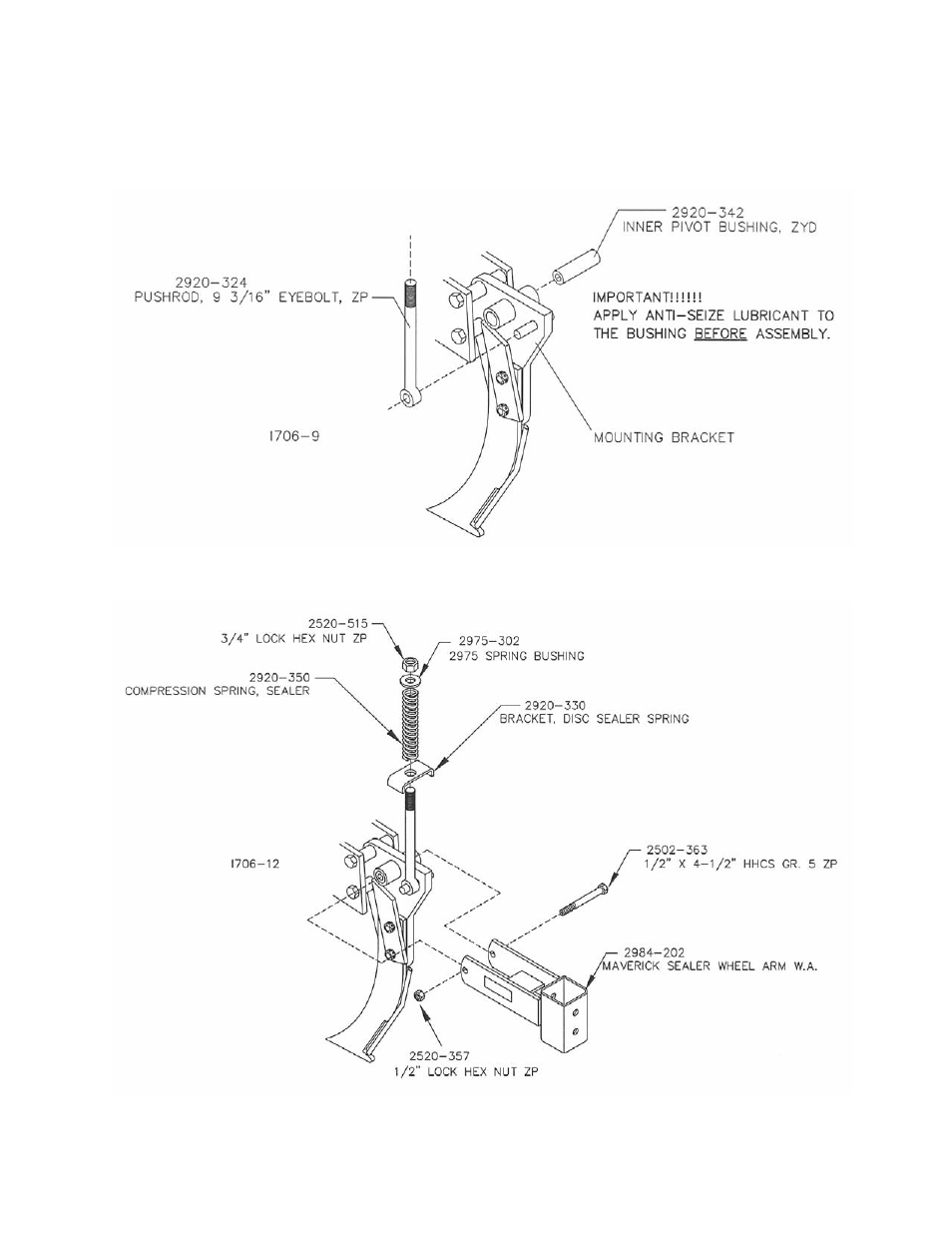

STEP 1. Install the 2920-324 pushrod to the mounting bracket. Insert 2920-342 pivot bushing into the
mounting bracket – lubricate with anti-seize.
STEP 4. Attach the 2984-202 sealer wheel arm to the mounting bracket using 1) ½” x 4 ½” bolt and ½” lock
nut. Next, assemble the 2920-330 pushrod bracket, 2920-350 spring, 2975-302 spring bushing and ¾” lock
nut onto the pushrod.
