15
ASSEMBLY INSTRUCTIONS
2984-024 – NOTCHED DISC SEALER KIT
2984-023 – SMOOTH DISC SEALER KIT

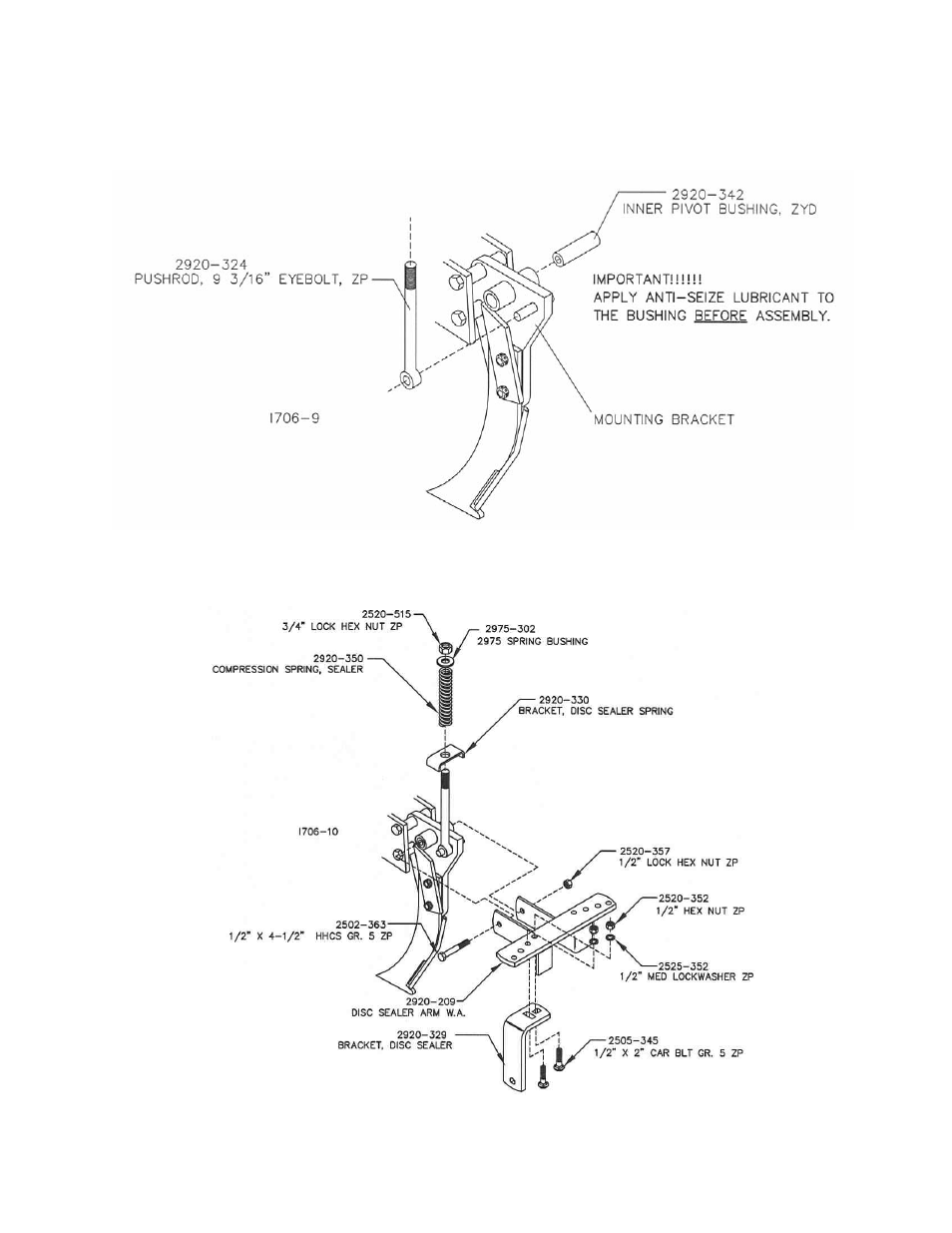

STEP 1. Insert the 2920-342 pivot bushing (lubricate with anti-seize) into the pivot collar of the mounting
bracket. Install the 2920-324 push rod to the mounting bracket.
STEP 2. Attach the 2920-209 disc sealer arm to the mounting bracket using 1) ½” x 4 ½” bolt and ½” lock
nut. Attach the 2) 2920-329 L-brackets to the 2920-209 arm using 4) ½” x 2” carriage bolts, ½” lock
washers and ½” hex nuts. Next, assemble the 2920-330 pushrod bracket, 2920-350 spring, 2975-302
spring bushing and ¾” lock nut on the pushrod.
