8

INSTALLATION / ASSEMBLY INSTRUCTIONS

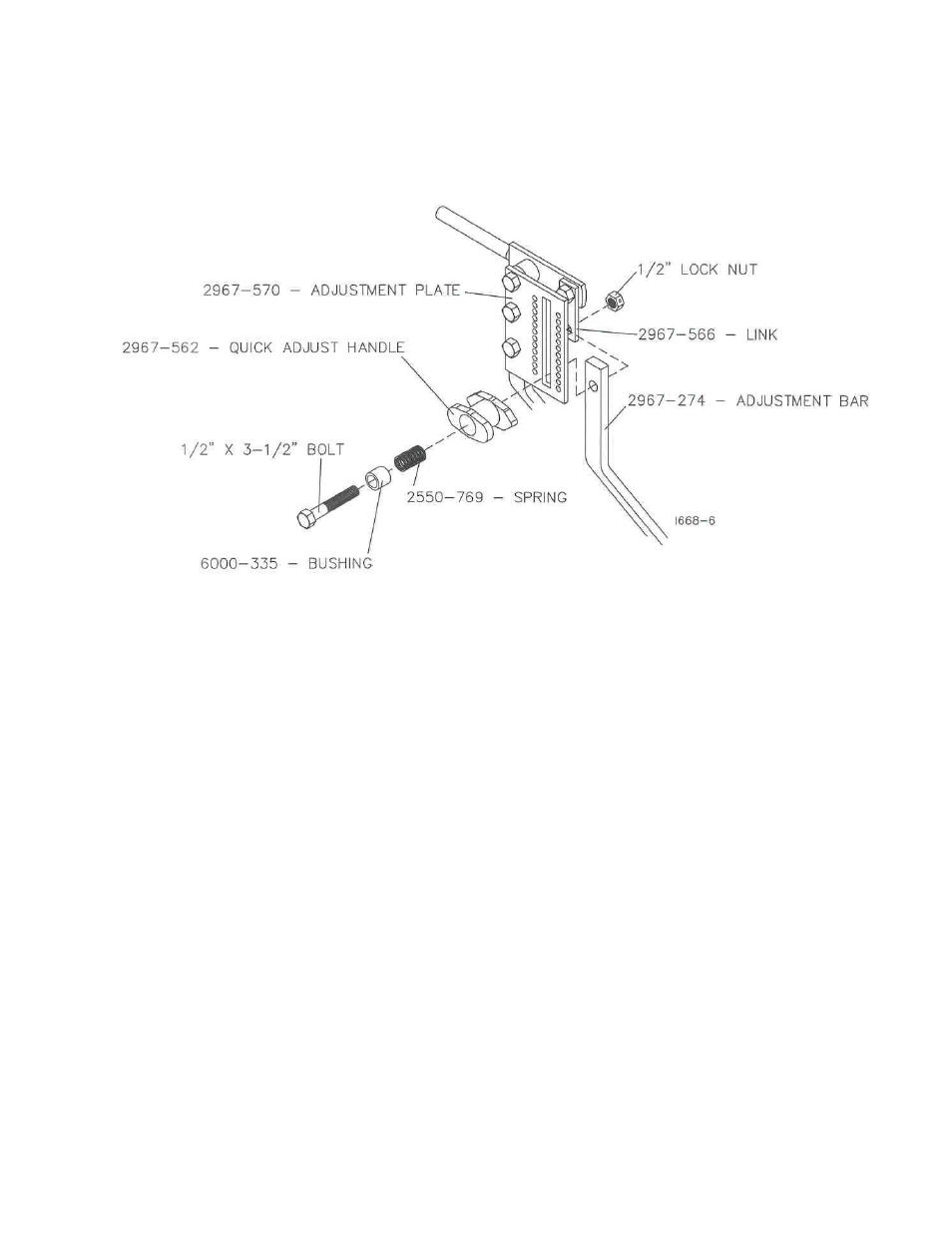

STEP 7.

Connect the 6000-335 bushing, 2550-769 spring, 2967-562 quick adjust handle to the 2967-570

adjustment plate, 2967-274 adjustment bars and 2967-566 link using the ½” x 3-1/2” bolt and lock nut. DO
NOT OVERTIGHTEN THE LOCK NUT.
