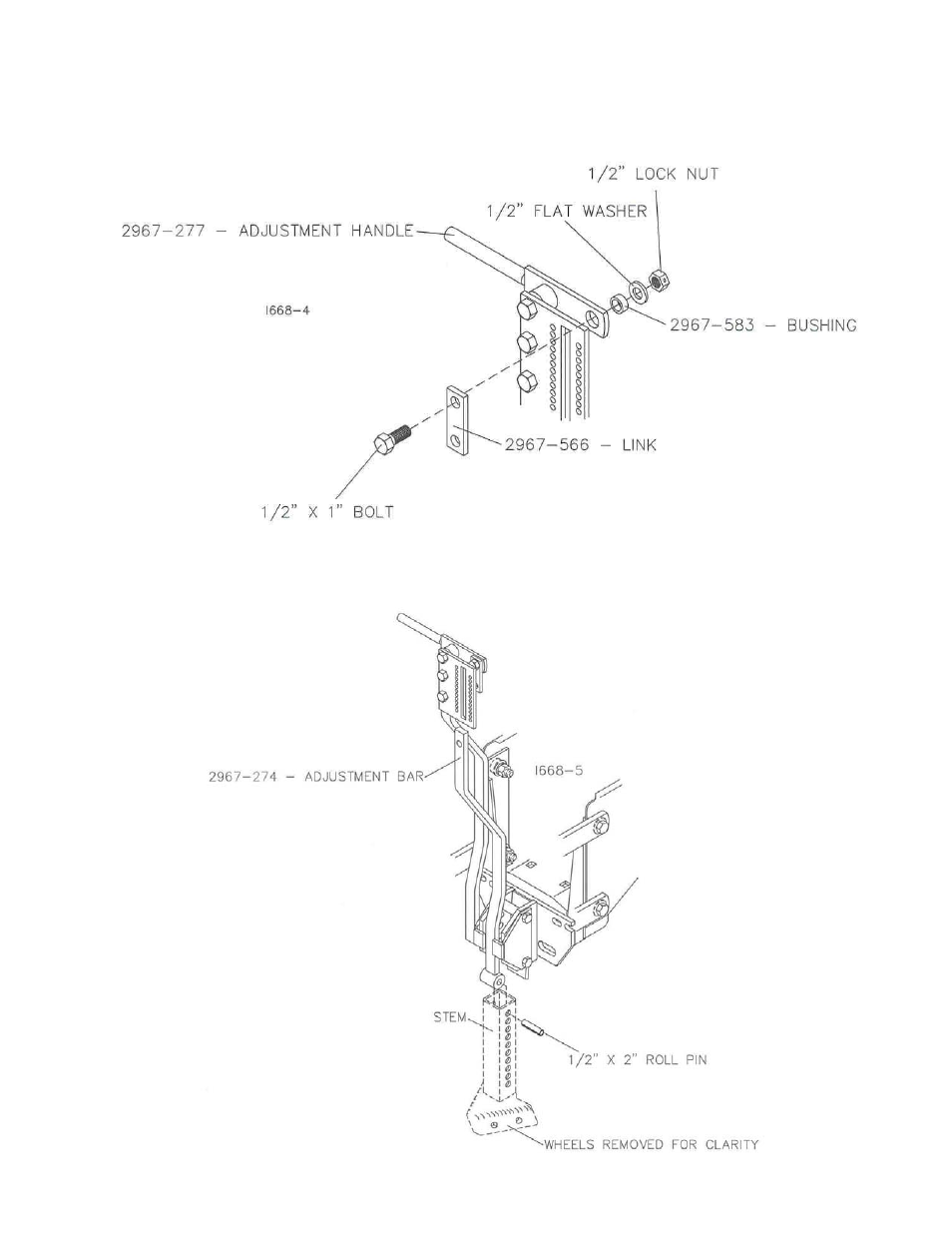

INSTALLATION / ASSEMBLY INSTRUCTIONS
STEP 5.
Attach the 2967-566 link to the 2967-277 using the ½” x 1” bolt and lock nut. DO NOT
OVERTIGHTEN LOCK NUT, the 2967-566 links needs to pivot freely.
STEP 6.
Slide the 2967-274 adjustment bar down through the guide plate/mounting bracket insert into
the 2 x 2 adjustment tube of the stem/wheel assembly and fasten to the top adjustment hole using the ½” x
2” roll pin. Drive the roll pin until it is flush with the adjustment tube.
