8
INSTALLATION INSTRUCTIONS

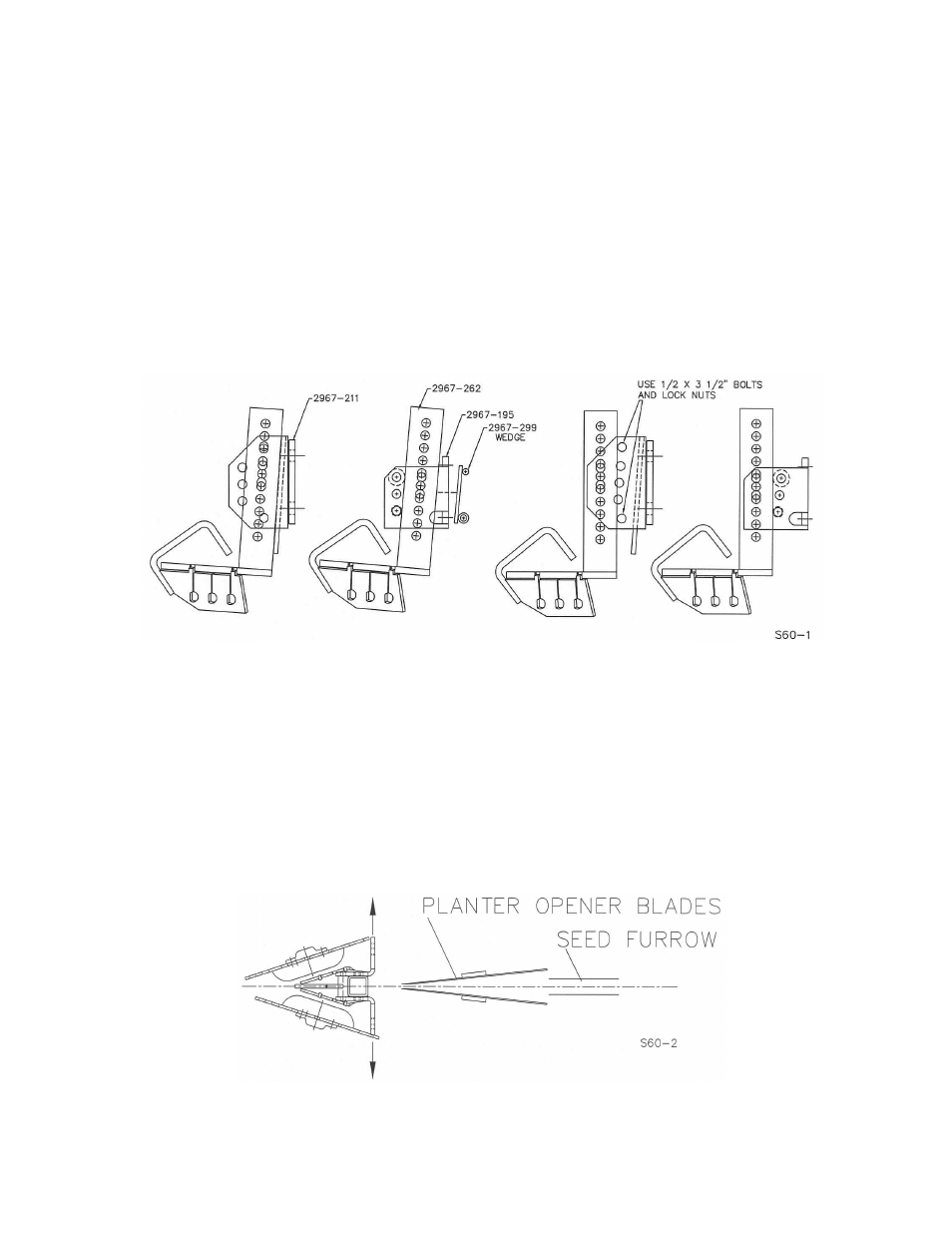

STEP 5. The universal model that fits on JD 7200/1700 series planters can be mounted two ways (See
Figure 1). The front set of holes is to mount these models on planter units with light duty or heavy duty cast
lower parallel arms. If the front set of holes is used, assemble two ½” x 3-1/2” bolts and spacers (2967-195
bracket assembly) to the upper and lower rear holes on the mounting bracket using ½” lock nuts. NOTE:
Do not over-tighten. The rear set of holes is for planter units with heavy-duty welded and cast “long” lower
parallel arms.
MOUNTING ARRANGEMENTS FOR JOHN DEERE 7200/1700 SERIES
FOR HEAVY DUTY “WELDED” FOR LIGHT DUTY OR HEAVY DUTY CAST
AND CAST “LONG” LOWER PARALLEL ARMS
LOWER PARALLEL ARMS ALSO: JD 7000, KINZE & WHITE 6100
FIGURE 1
STEP 6. Align the residue manager wheels to the planter opener blades. The residue manager mount
bracket has slotted holes in the faceplate to move the residue manager wheels side to side; to be able to
center the wheels on the seed furrow. Fully tighten mounting bolts. Torque to 85 ft./lbs.
