6
INSTALLATION INSTRUCTIONS
2967 – RESIDUE MANAGER
STEP 1. Build half of the row cleaner wheel assemblies as left hand wheel assemblies and half
as right hand wheel assemblies. This is determined by which side of the wheel support and in
which hole the wheel assembly is installed.

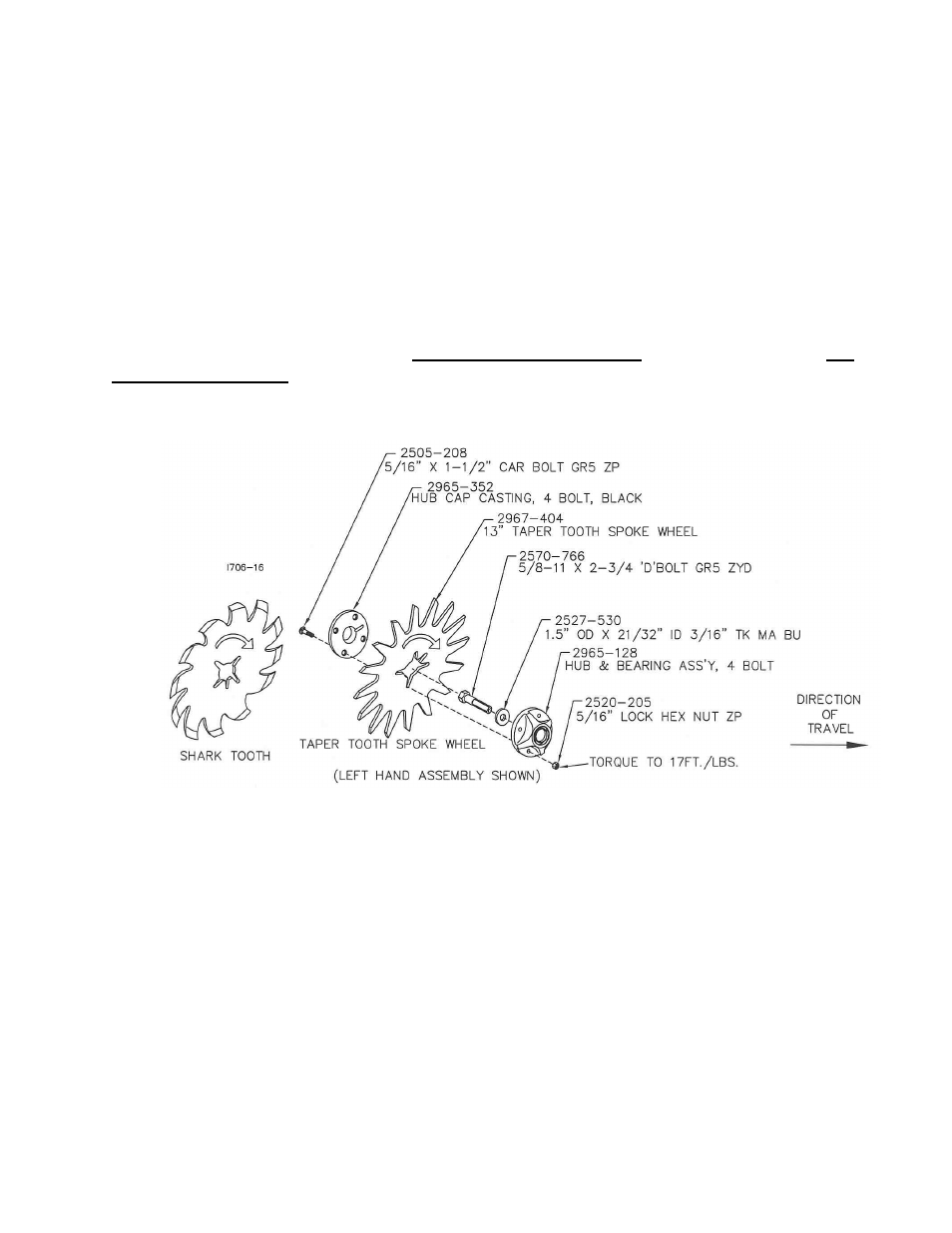

STEP 2. Assemble the residue manager wheel to the 2965-352 – hub cap and the 2965-128
hub/bearing assembly. Insert the D-bolt through the 1.50 O.D. x 21/32” I.D. x 3/16” thick flat
washer, then through the hub/assembly. Use 4) 5/16-“ x 1-1/2” carriage bolts and 5/16-18 lock
nuts per wheel.
NOTE: Assemble one wheel as a right hand wheel rotation and one wheel as a left
hand wheel rotation.
IMPORTANT. The 2527-530 washer must be installed or the wheel and hub assembly will
fall off during use.
NOTE: Be certain to align the grease zerk with the slot in the wheel and the hub cap so that the grease
can flow freely. Remove the seal from the exposed side of the bearing if you choose to grease the bearing,
otherwise the bearing is sealed.
STEP 3. Fill the hub and bearing assembly with general-purpose grease.
