Yetter 2967-082 Residue Managers - Manual (Page 21)

21

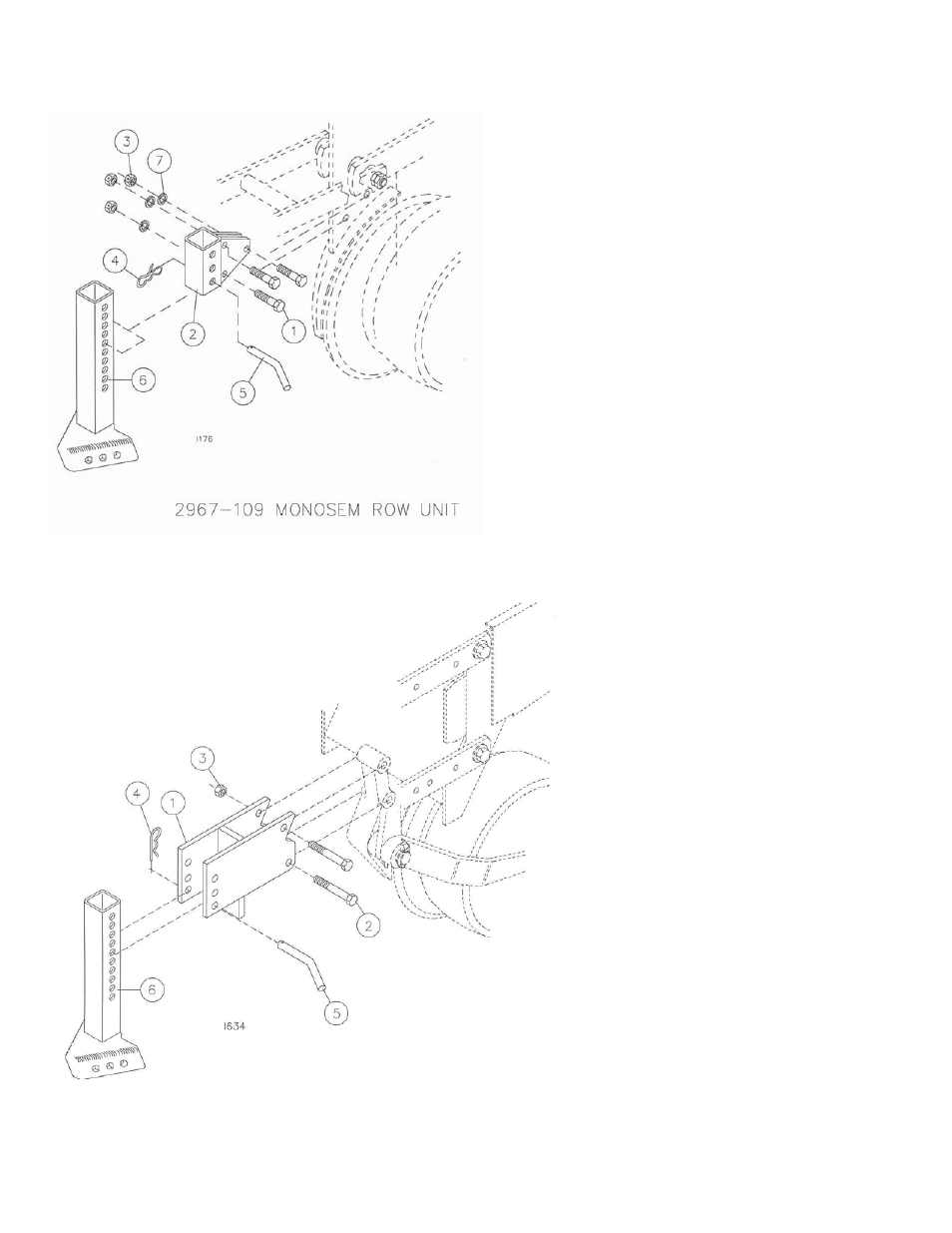

PARTS IDENTIFICATION
2965-124
2967-109
MONOSEM UNIT
Key Qty. Part No. Description
1 3 2502-245 3/8-16 x 1-3/4 HHCS Gr. 5 ZP
2 1 2967-245 Monosem Mount Bracket W.A.
3 3 2520-251 3/8-16 Hex Nut ZP
4 1 2570-448 1/8 Std. Hairpin Cotter ZP
5 1 2965-305 Pin, Furrowing Attachment, ZYD
6 1 2967-200 Residue Manager Stem W.A.
1 2965-200 Furrowing Blade Mtg. Brkt. W.A.
7 3 2525-251 3/8 Med. Lockwasher ZP
UPDATED 03/04/09
2965-021
2965-106
2967-106
CASE 800/900/950/955/1200
MOUNTING HARDWARE FOR CASE –IH 800
WILL NOT FIT 1 ST YEAR IHC PRODUCTION (1981)
Key Qty. Part No. Description
1 1 2965-203 Furrower Mounting Bracket, 800
2 2 2502-316 1/2-13 x 3-1/2” HHCS Gr. 5 ZP
3 2 2520-357 1/2-13 Lock Hex Nut ZP
4 1 2570-448 1/8 Std. Hairpin Cotter ZP
5 1 2965-305 Pin, Furrowing Attachment, ZYD
6 1 2966-272 Residue Manager Stem W.A.
1 2965-200 Furrowing Blade Mtg. Brkt. W.A.
