Page 10
10
INSTALLATION INSTRUCTIONS

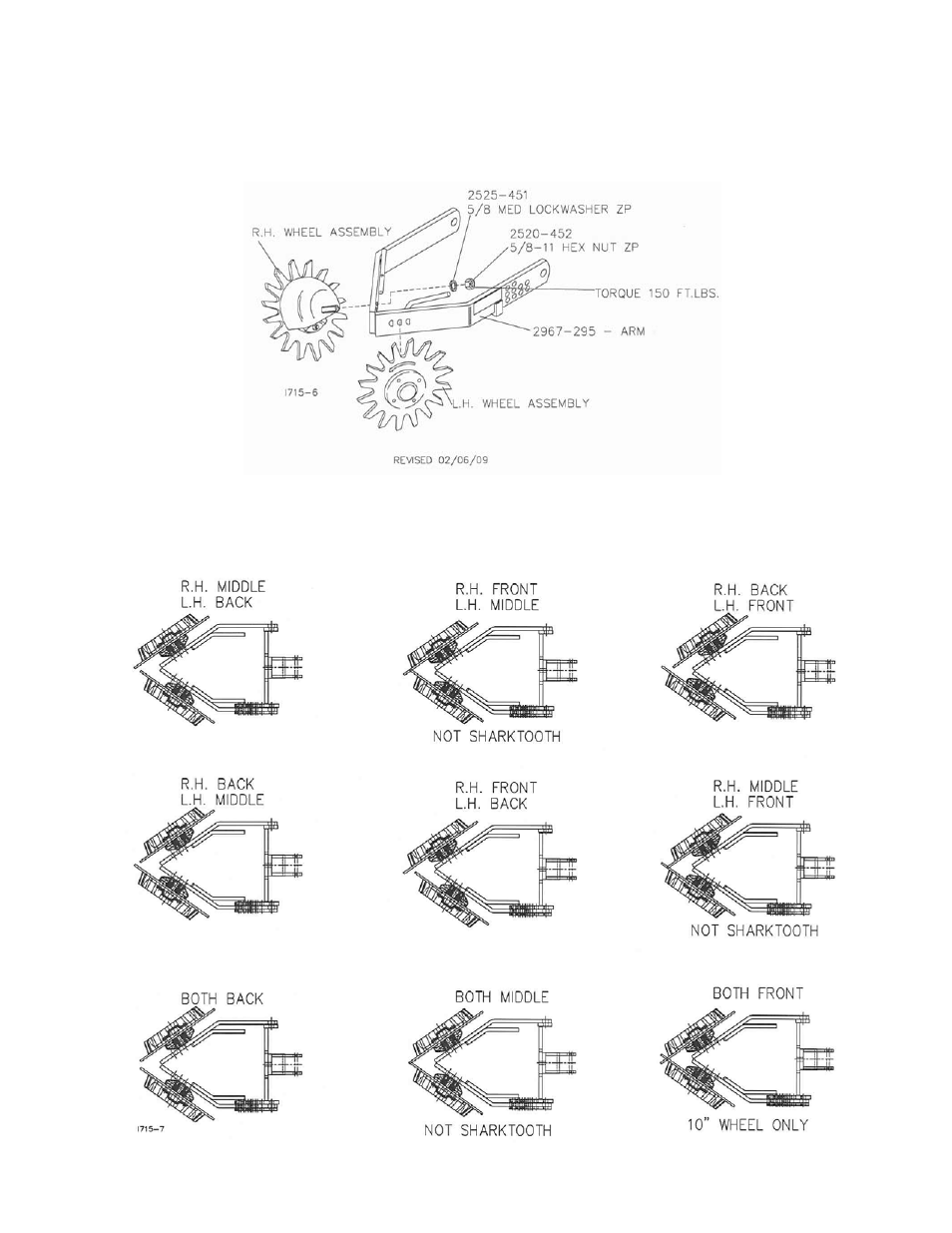

STEP 5
Choose the mounting hole in which to attach the R.M. wheels.
Attach the R.M. wheel/hub assemblies to the 2967-295 Combo Arm using 5/8” lock washers and hex nuts.
Adjust the bearing shield to top dead center, rotate slightly forward. Torque to 150 ft./lbs.
MOUNTING CONFIGURATIONS FOR RESIDUE WHEELS
2967-404 – 13” TAPER TOOTH SPOKE WHEEL
2967-596 – 3/8” HEAVY DUTY SPOKE WHEEL
2967-602 – 13” SHARKTOOTH WHEEL
2967-388 – 10” TAPER TOOTH SPOKE WHEEL
