Assembly instructions – Yetter 1300 Series Bulk Seed Handling Equipment User Manual
Page 12
12
ASSEMBLY INSTRUCTIONS
SEED TRAIN TROLLEY 1300-133 (CONT.)

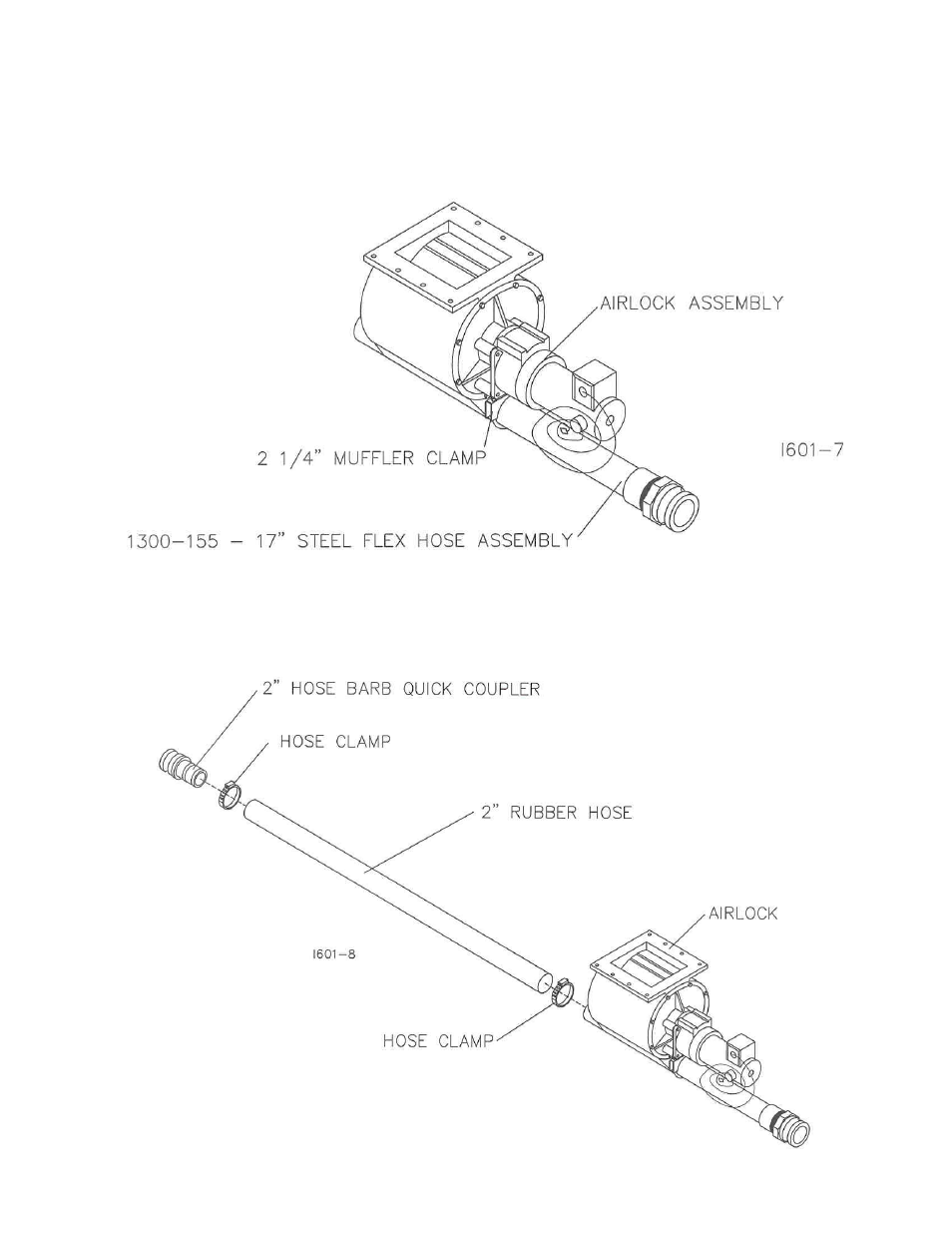

Step 7.
Attach the 1300-155 17” steel flex hose assembly to the airlock at the 2 ¼” steel pipe and secure
it with the 2 ¼” muffler clamp. Do Not Over Tighten the clamp, to avoid damaging the steel flex hose.
Step 8.
Assemble the 2” rubber hose, 2” hose barb quick coupler and a hose clamp. HINT: to aid in the
assembly, it is recommended that the hose barb end of the quick coupler can be lubricated with a non-oil
based product. Example: dish soap. Then slide a hose clamp on the other end of the 2” rubber hose and
install onto the airlock at the 2” steel pipe nipple.
