Tuff Country 14058 - GM 07-13 Suburban / Tahoe 1500 4wd 4 lift kit User Manual
Page 11

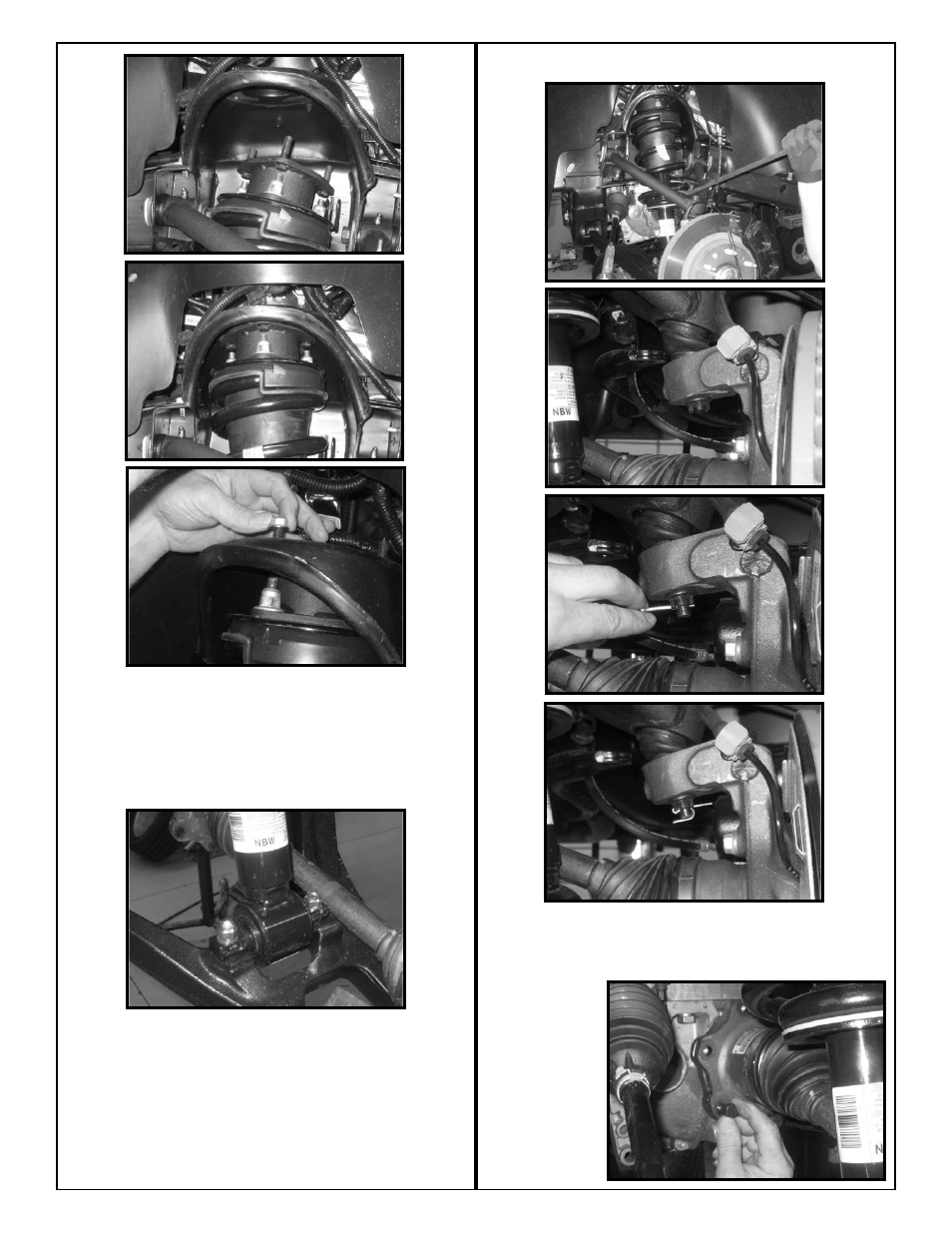

37. Locate (4) 10 mm x 55 mm bolts and (4) 10 mm uni-
torque nuts from hardware bag 14056NB1. Locate (8) 10
mm flat washers from hardware bag 14056NB2. Working on
the driver side, secure the lower portion of the OE strut to the
lower control arm using the new hardware. Make sure to use
loctite and torque to 45 ft lbs. Repeat procedure on the pas-
senger side.
38. Working on the driver side, install the newly installed
upper control arm to the OE knuckle and secure using the
new castle nut. Make sure to use loctite and torque to 40 ft
lbs. Now install the new cotter pin. Special note: Using a
pry bar to gain leverage will help make installation easi-
er. Also, If the new cotter pin can not be installed
because the hole in the new castle nut does not line up
with the new ball joint, DO NOT loosen the new castle
nut so that the cotter pin can fit, tighten the new castle
nut some more so that the new cotter pin can be
installed. Repeat procedure on the passenger side.
39. Working on the driver side, re-install the CV axle to the
front differential using the OE hardware. Make sure to use
loctite and torque to 45 ft lbs. Repeat procedure on the pas-
senger side.
