Adaptor kit for automatic flusher, Installation instructions, For crane flush valves

Installation Instructions
Adaptor Kit For
Automatic Flusher
Chrome Adaptor
Plastic Bracket
Blue Washer
2 Pink Washers
White Plastic
Push Rod

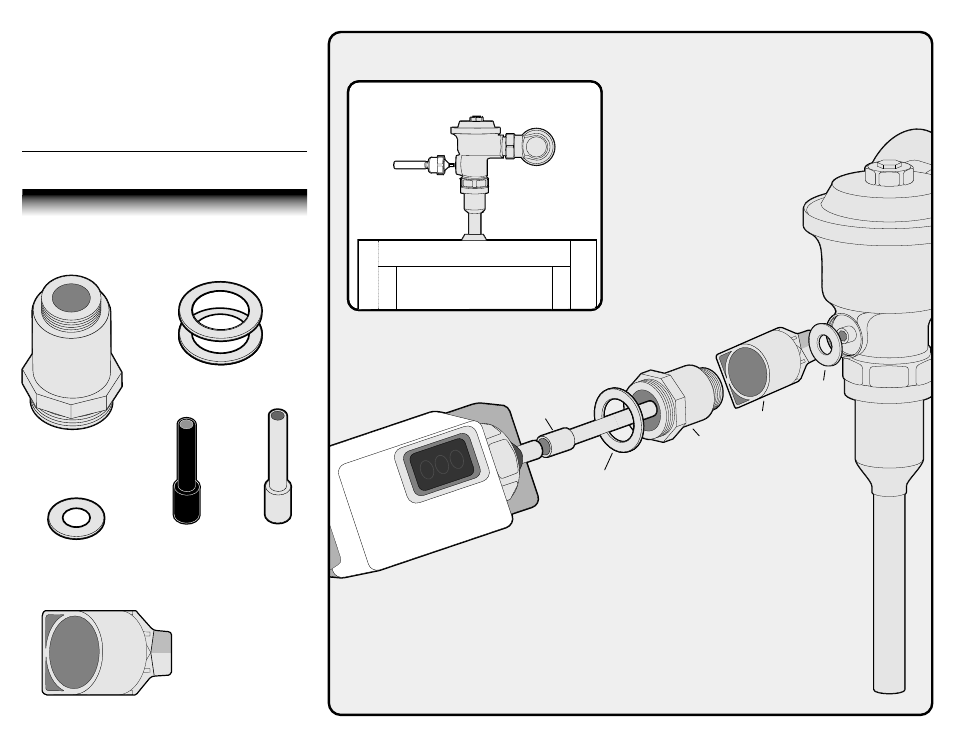

Components:
4. Install and tighten chrome adaptor
with plastic bracket into Crane valve
with crescent wrench.
Due to the variences in the tolerance of Crane Flush Valves,
2 plastic rod extenders have been included to match
their wide range of specifications.
5. Install the black plastic
push rod extension onto
end of AutoFlush metal
push rod. Press push rod
extension tip against hard
surface until extension is
fully seated on push rod.
1. Remove Crane handle assembly.
2. Install small blue washer into Crane valve
handle opening.
3. Slide plastic bracket opening over
small threaded end with back plate
facing the wall and flat end behind
the flush valve.
6. Install AutoFlush unit onto
chrome adaptor with 2 pink
washers. Tighten Chrome nut.
401165
For Crane Flush Valves
Black Plastic
Push Rod
If the plastic rod does not contact the flush piston
(which would start the flush cycle) remove the
black plastic rod extender and repeat step 5 with
the white plastic rod extender. The removal of 1
pink washer may also be used to adjust for the
variation in the Crane tolerances.
Plastic
Push Rod
Pink
Washer
Chrome
Adaptor
Plastic
Bracket
Blue
Washer
